Removal And Installation

For intake manifold removal procedures, follow numbered steps in illustration. See Fig 1. For intake manifold installation procedures, follow numbers steps in illustration in reverse order.

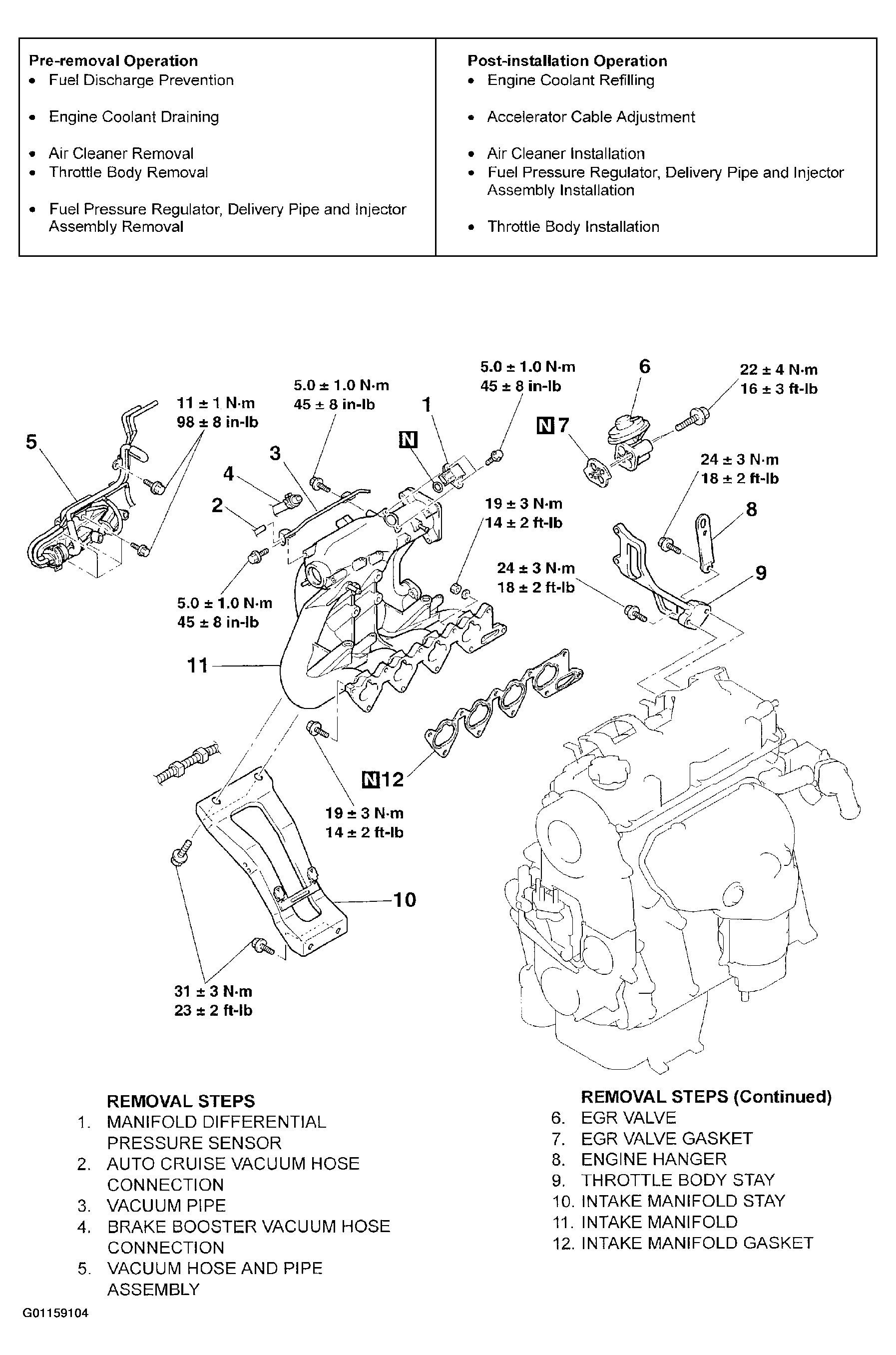

Fig 1: Removing & Installing Intake Manifold

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
