Removal And Installation: Notes

For exhaust manifold removal procedures, follow numbered steps in illustration. See Fig 1. For exhaust manifold installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing exhaust manifold. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the removal procedure. See REMOVAL SERVICE POINT .

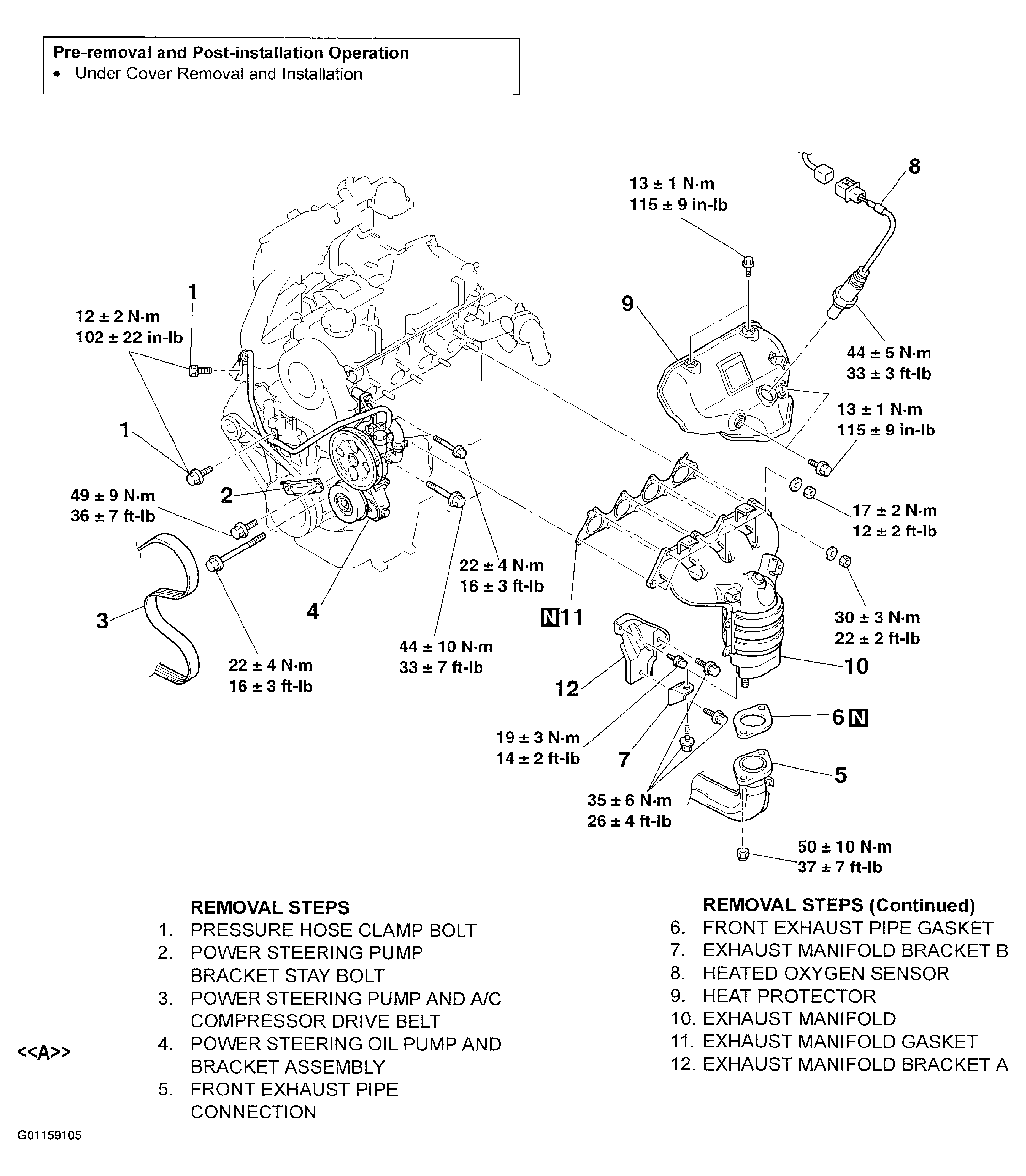

Fig 1: Removing & Installing Exhaust Manifold

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
