Component Locations
COMPONENT LOCATIONS
| Component | Location | ||||
|---|---|---|---|---|---|

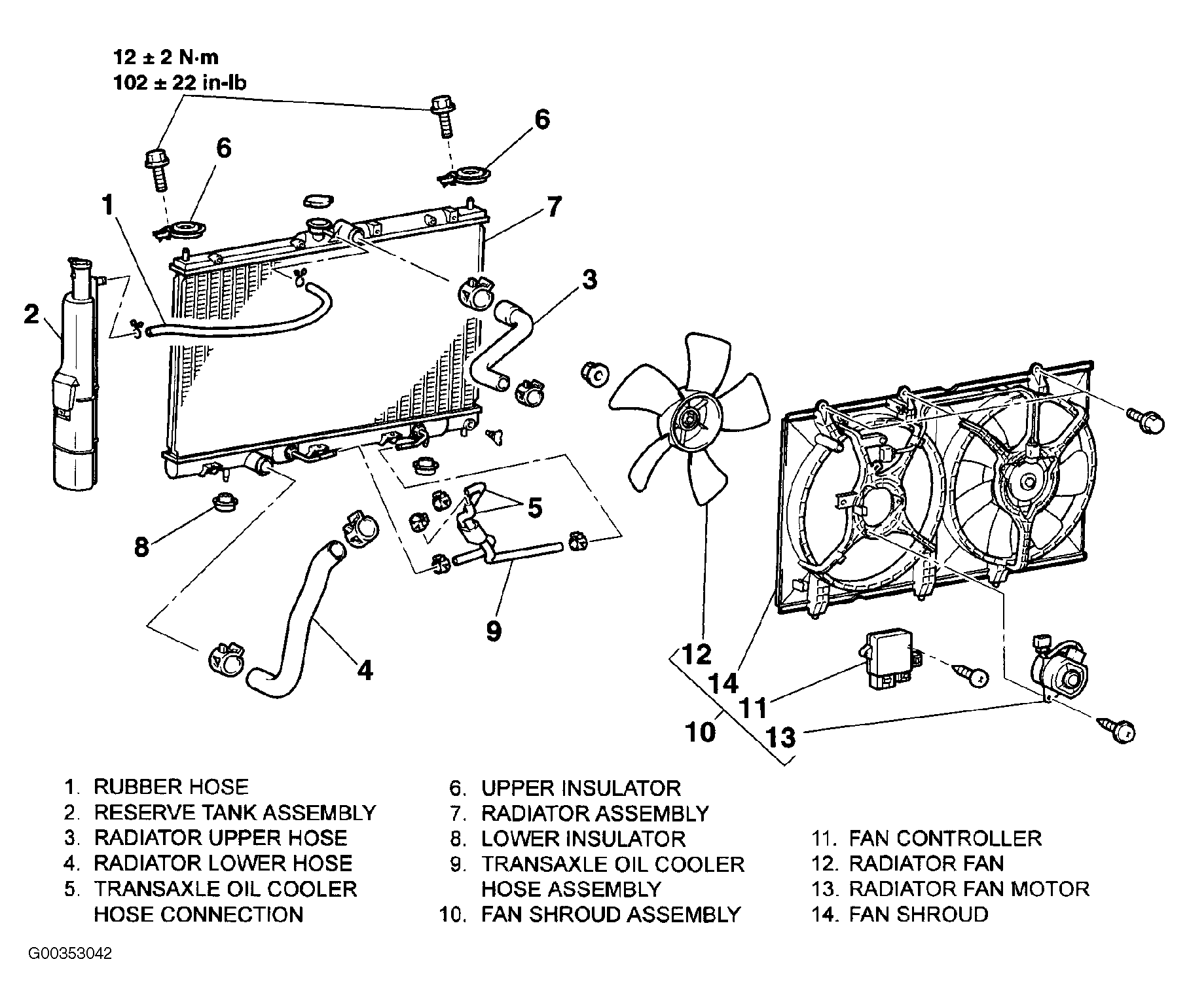

| Condenser Fan | (1) Behind Radiator | ||||
| Fan Control Module | (1) Attached To Radiator Fan Shroud | ||||
| Fan Control Relay | In Engine Compartment Fuse/Relay Box | ||||

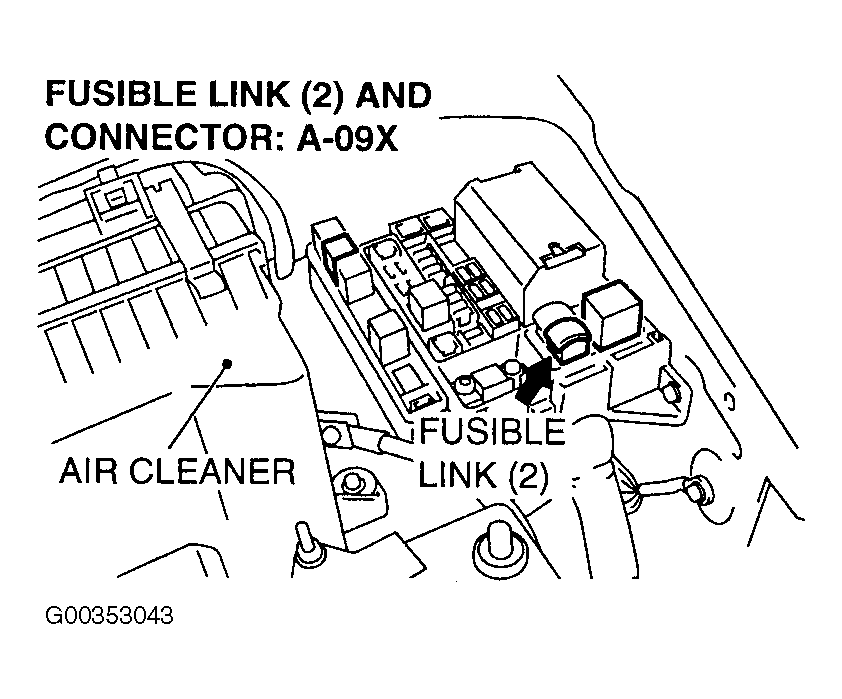

| Fusible Link No. 2 | (2) In Engine Compartment Fuse/Relay Box | ||||
| Multi-Port Fuel Injection (MFI) Relay | In Engine Compartment Fuse/Relay Box | ||||
| Radiator Fan | (1) Behind Radiator | ||||
|
|||||
