Removal & Installation

For generator illustrations:

• For Diamante, see Fig 1 .

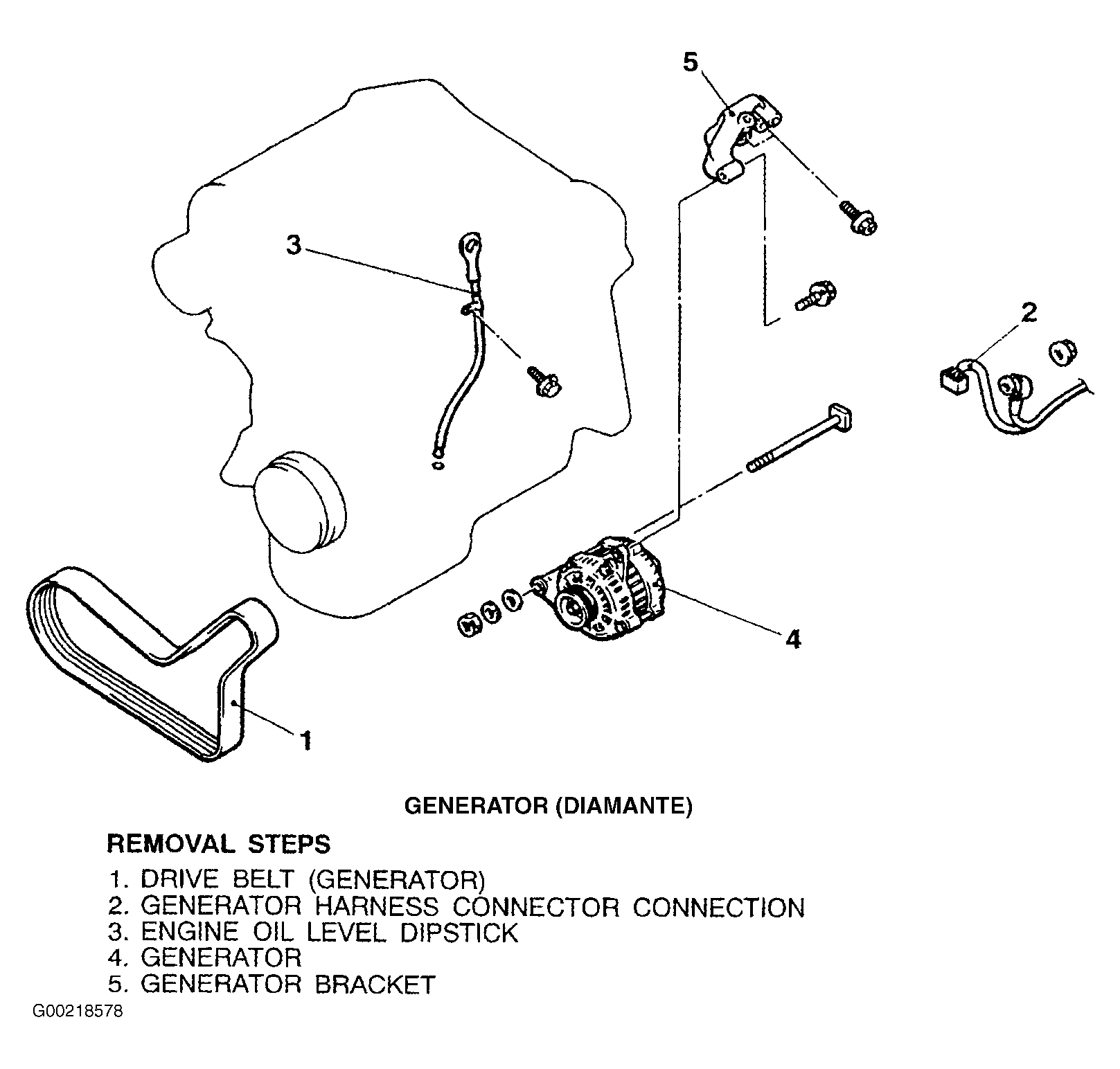

  Fig 1: Exploded View Of Generator (Diamante)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
• For Eclipse and Galant, see Fig 2 or Fig 3

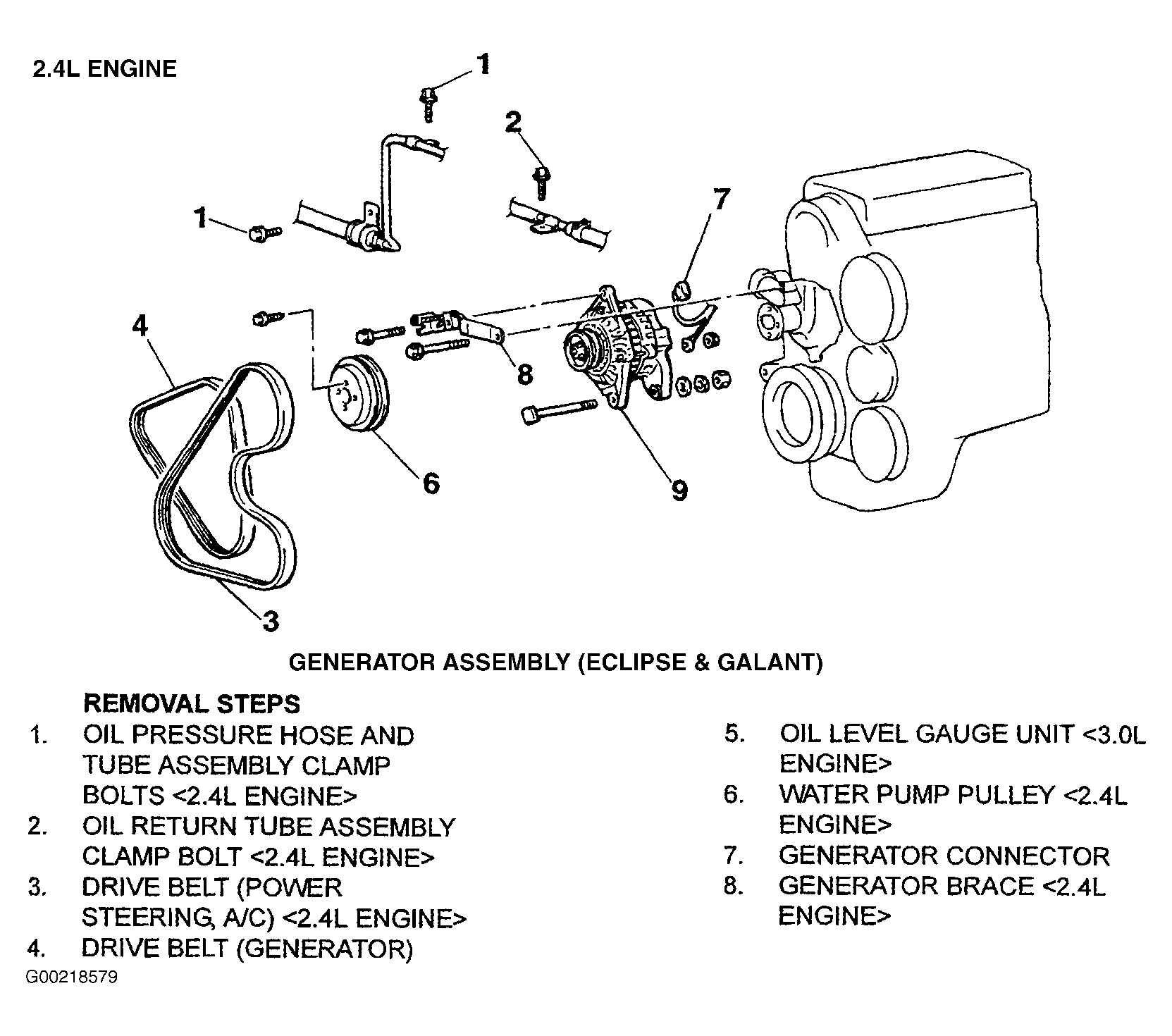

  Fig 2: Exploded View Of Generator (Eclipse 2.4L & Galant 2.4L)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

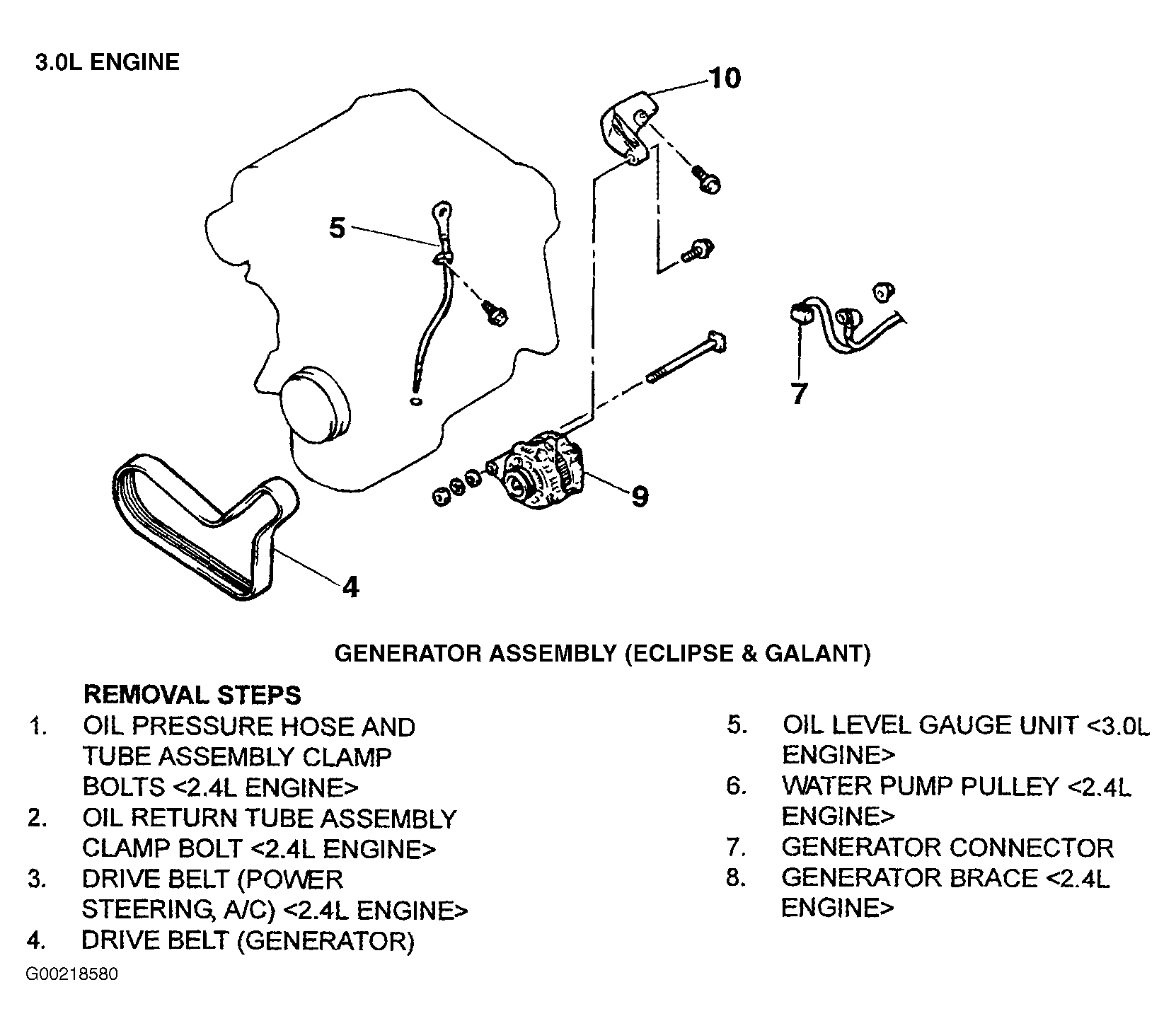

  Fig 3: Exploded View Of Generator (Eclipse 3.0L & Galant 3.0L)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
• For Lancer, see Fig 4 .

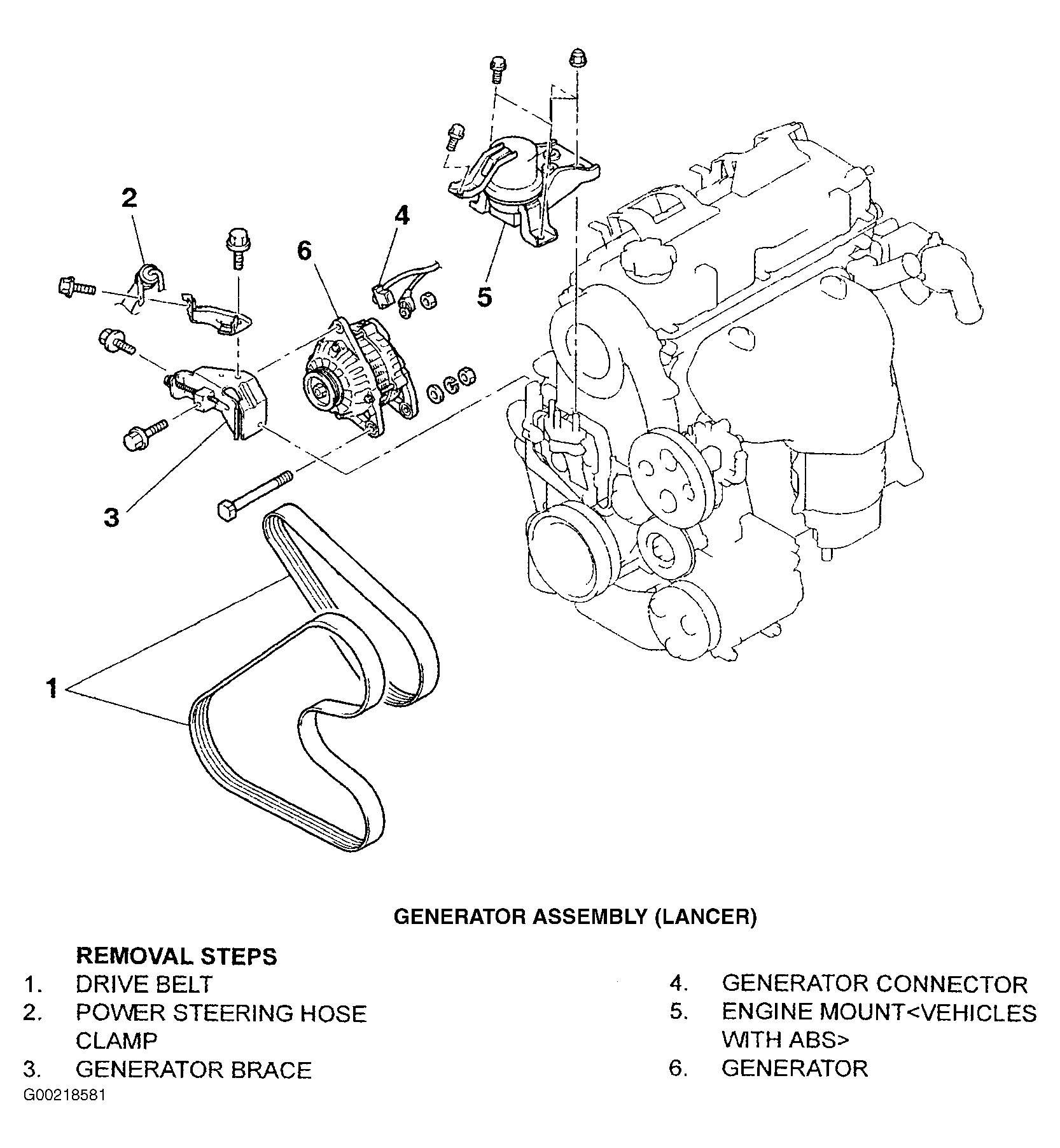

  Fig 4: Exploded View Of Generator (Lancer)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
• For Mirage, see Fig 5 .
  Fig 5: Exploded View Of Generator (Mirage 1.5L & 1.8L)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
• For Montero and Montero Sport, see Fig 6 .

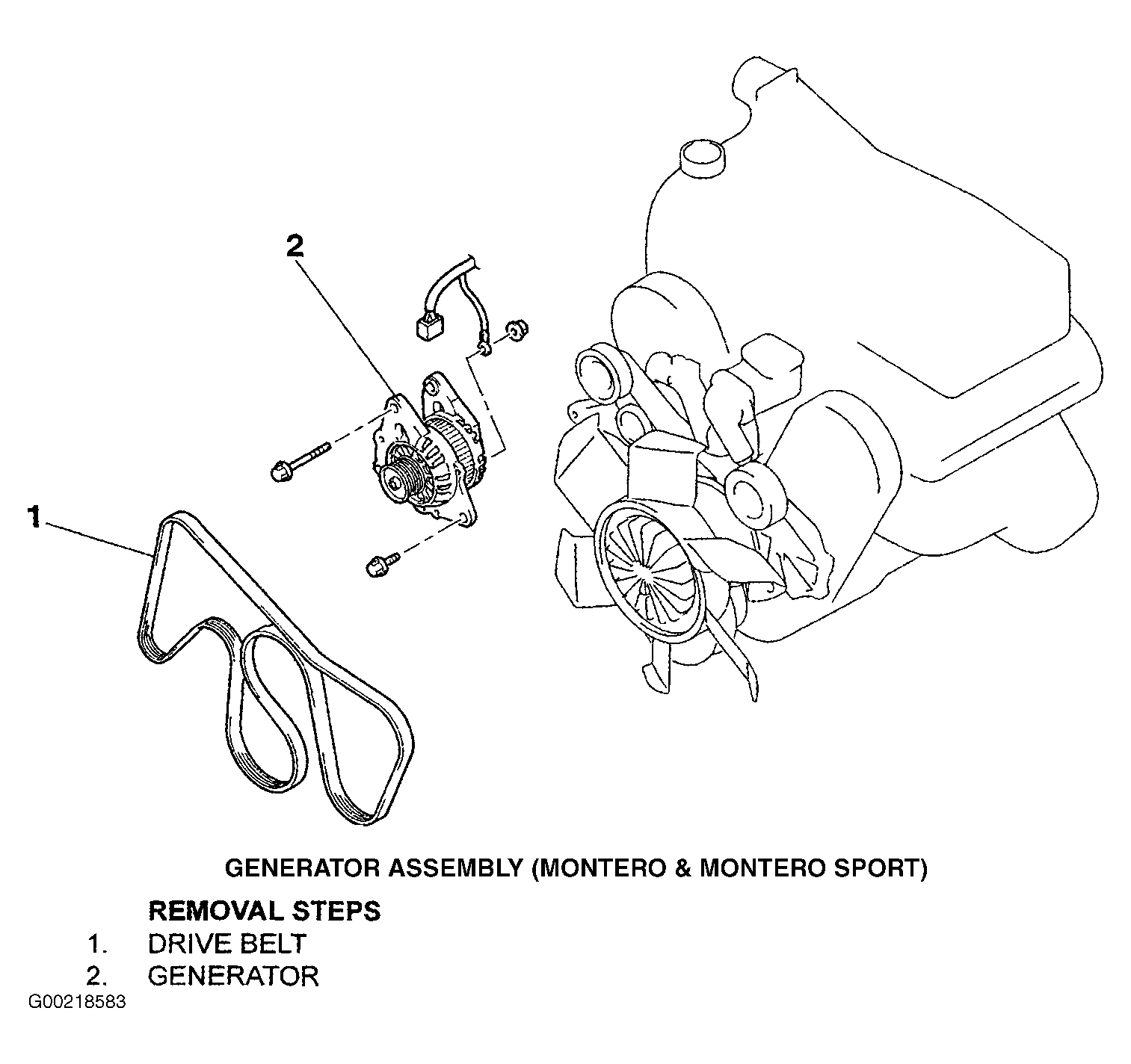

  Fig 6: Exploded View Of Generator (Montero & Montero Sport)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
