Key Reminder Switch Input Circuit Connector End Views
Key Reminder Switch Input Circuit Connector End Views

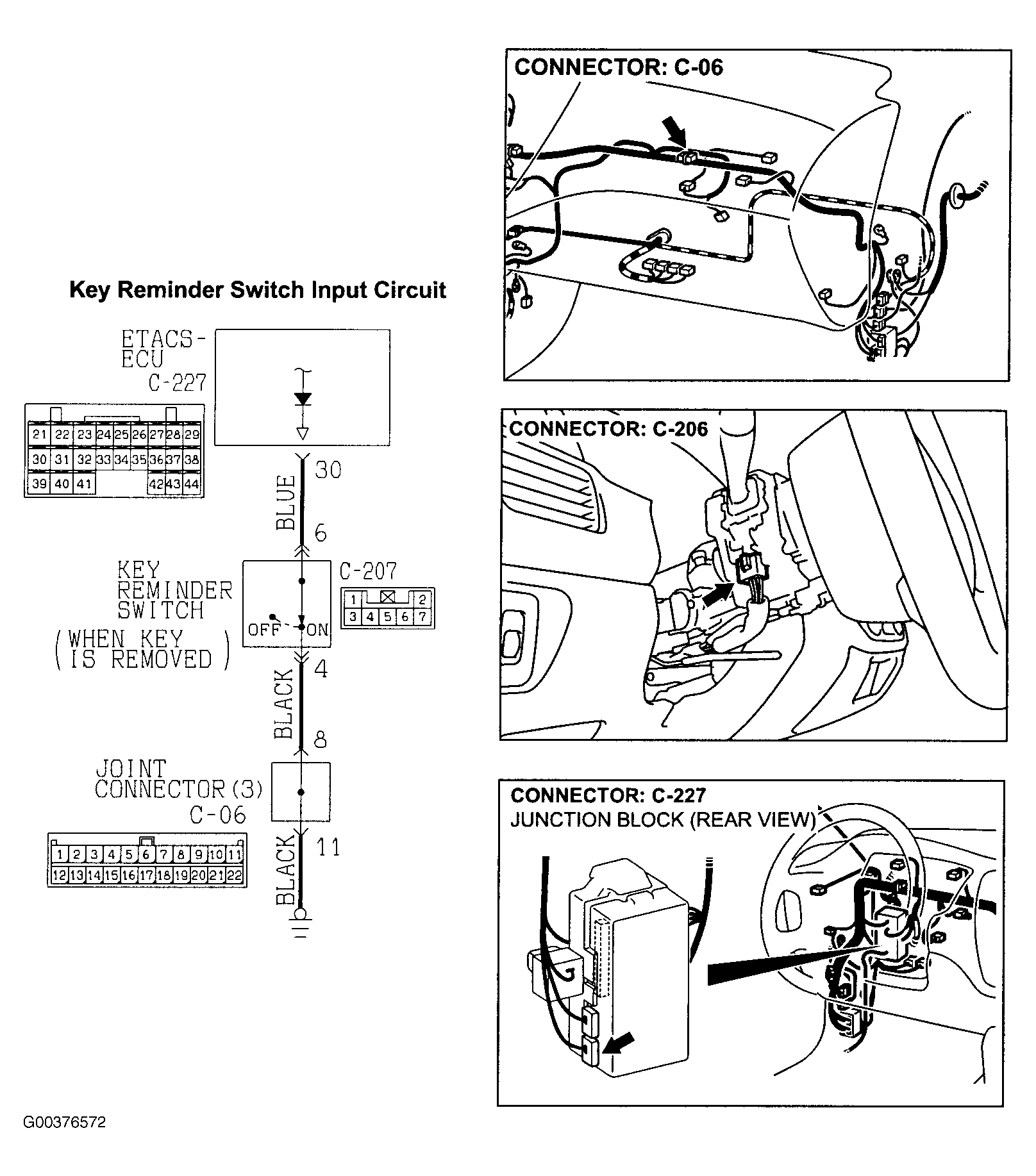

Fig 1: Key Reminder Switch Input Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
