Interior Light Automatic Shut-Down Function Circuit Connector End Views

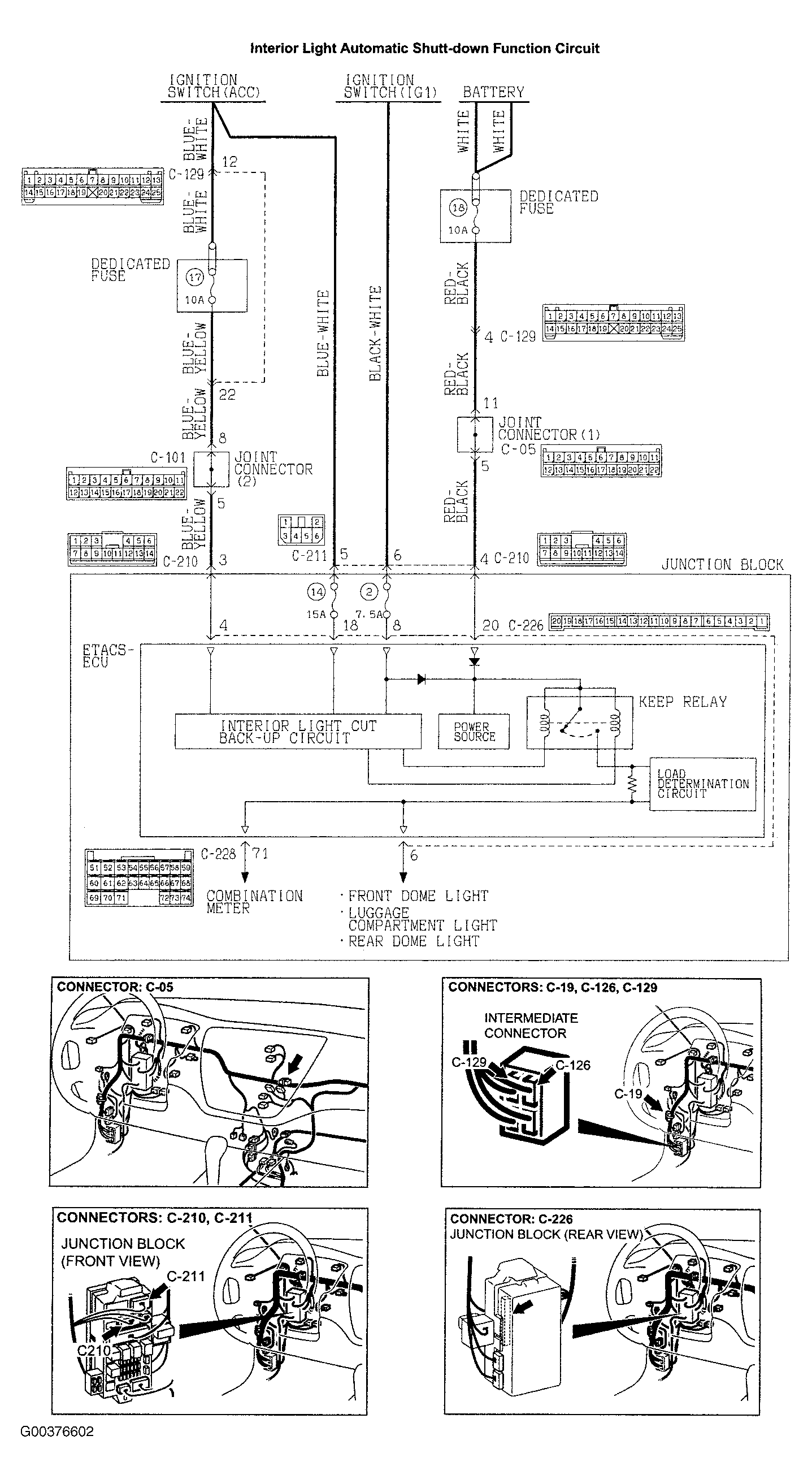

Fig 1: Interior Light Automatic Shut-Down Function Circuit Connector End Views

G00376602

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
