Door Lock Switch Input Circuit Connector End Views
Door Lock Switch Input Circuit Connector End Views

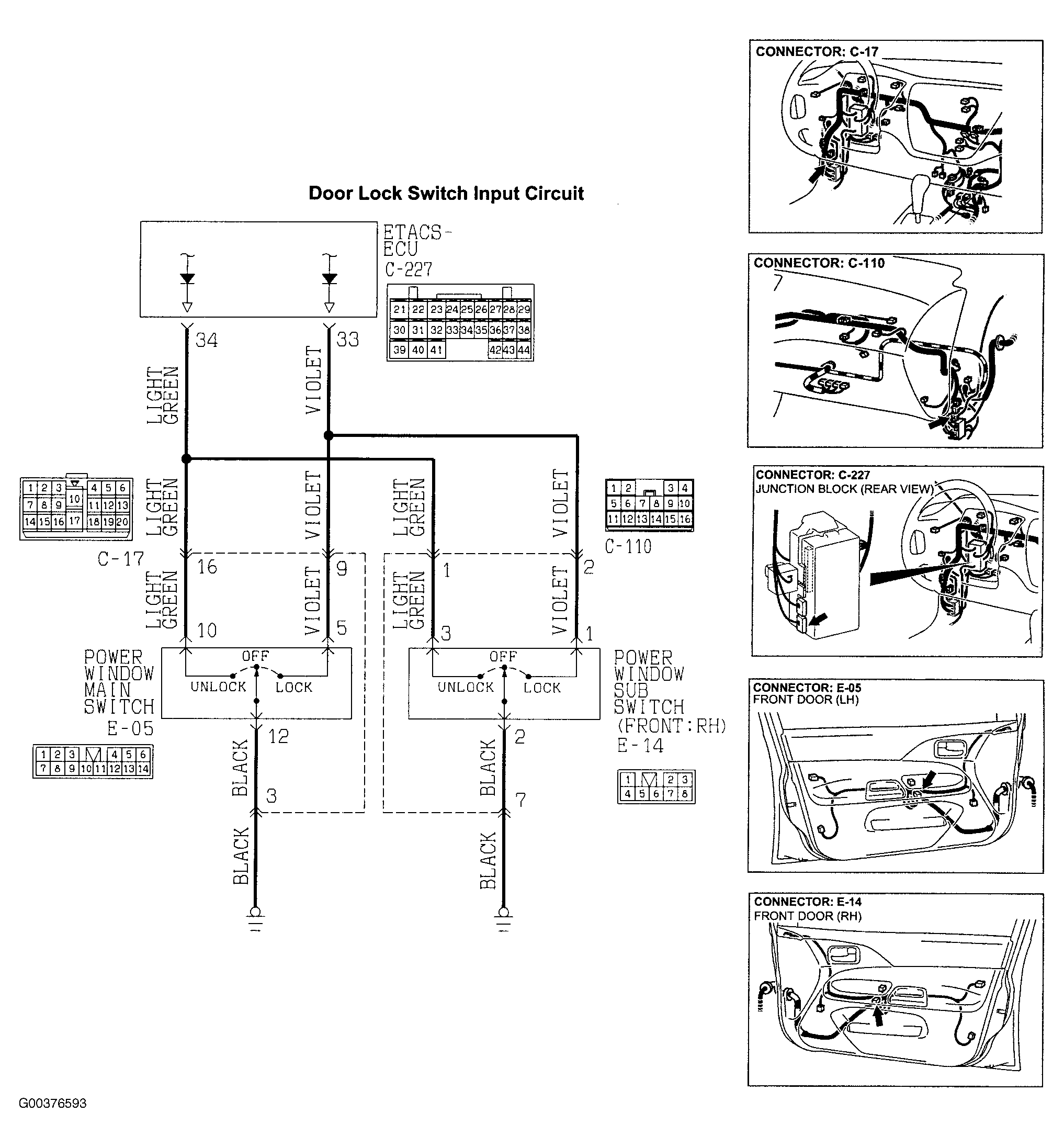

Fig 1: Door Lock Switch Input Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
