Pin Voltage Charts
NOTE:
To allow for ABS ECU to perform initial test, wait 3 seconds after ignition is turned on before beginning testing.
NOTE:
Perform all testing with a Digital Volt-Ohmmeter (DVOM) with a minimum 10-megohm input impedance.

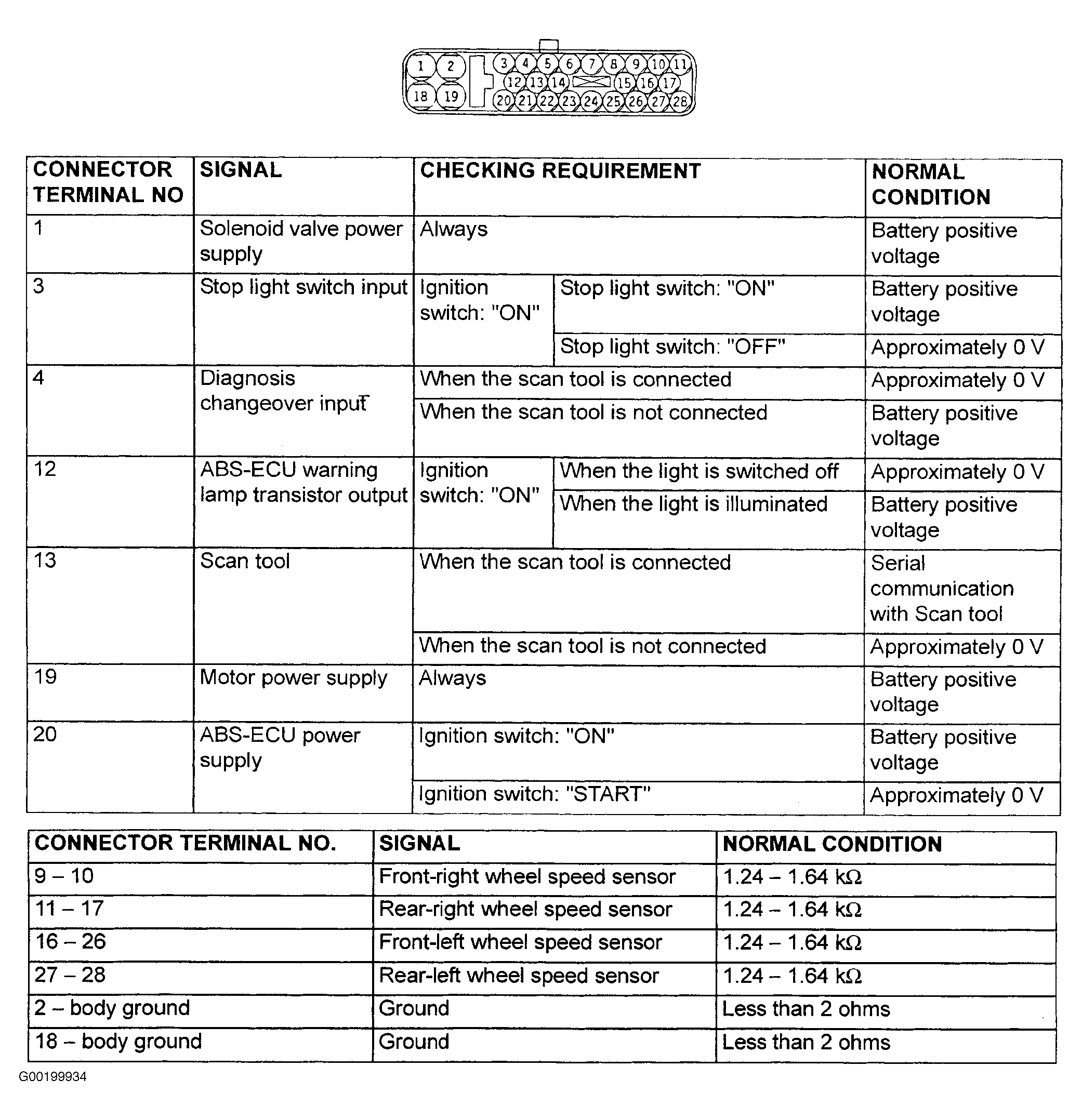

Measure voltage between ABS ECU harness connector B-118 ground terminals No. 2 and 18 (both wires are Black), and respective harness connector terminal. For resistance testing, turn ignition off and disconnect ABS ECU harness connector, and measure between specified terminals. See Fig 1 .
