Electric Remote Control Mirror Operation Check

Check that the mirror moves as described in the table when each terminal is connected to the battery. See Fig 1 .

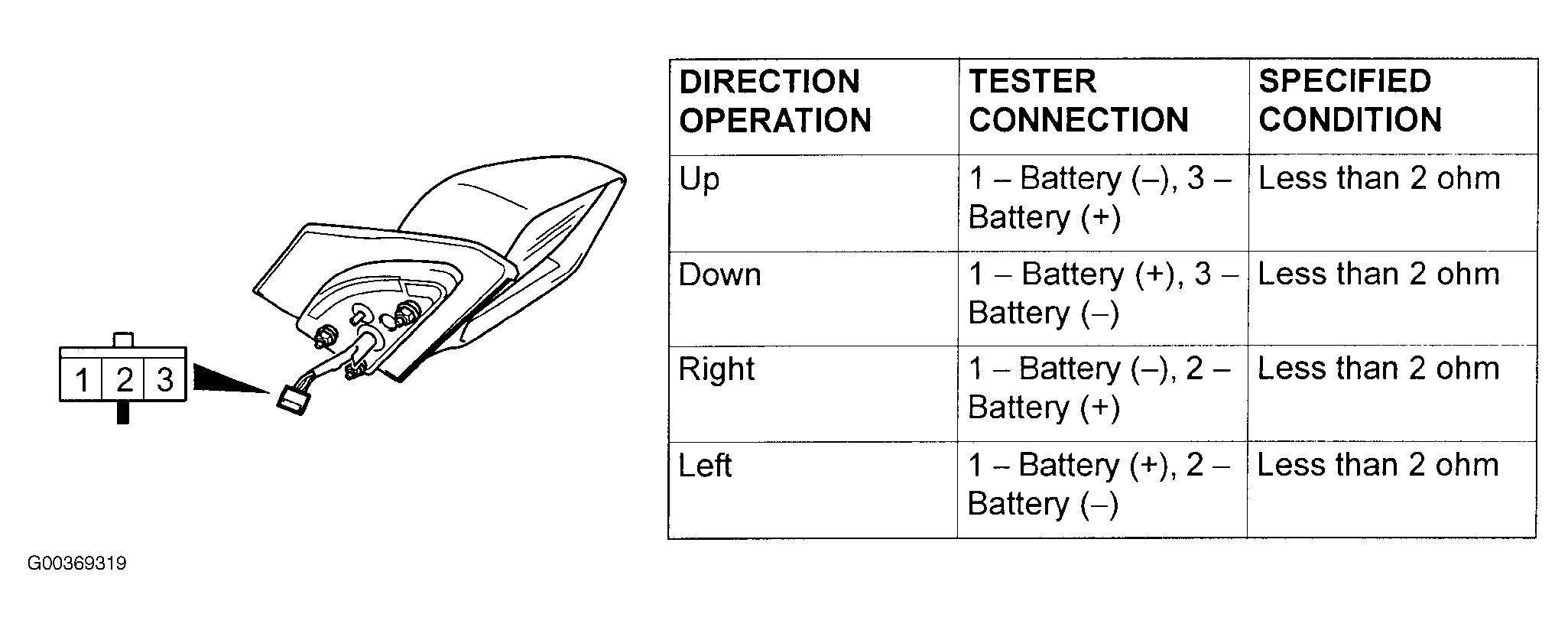

Fig 1: Checking Electric Remote Control Mirror Operation

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
