Door Mirror Control Switch Continuity Check

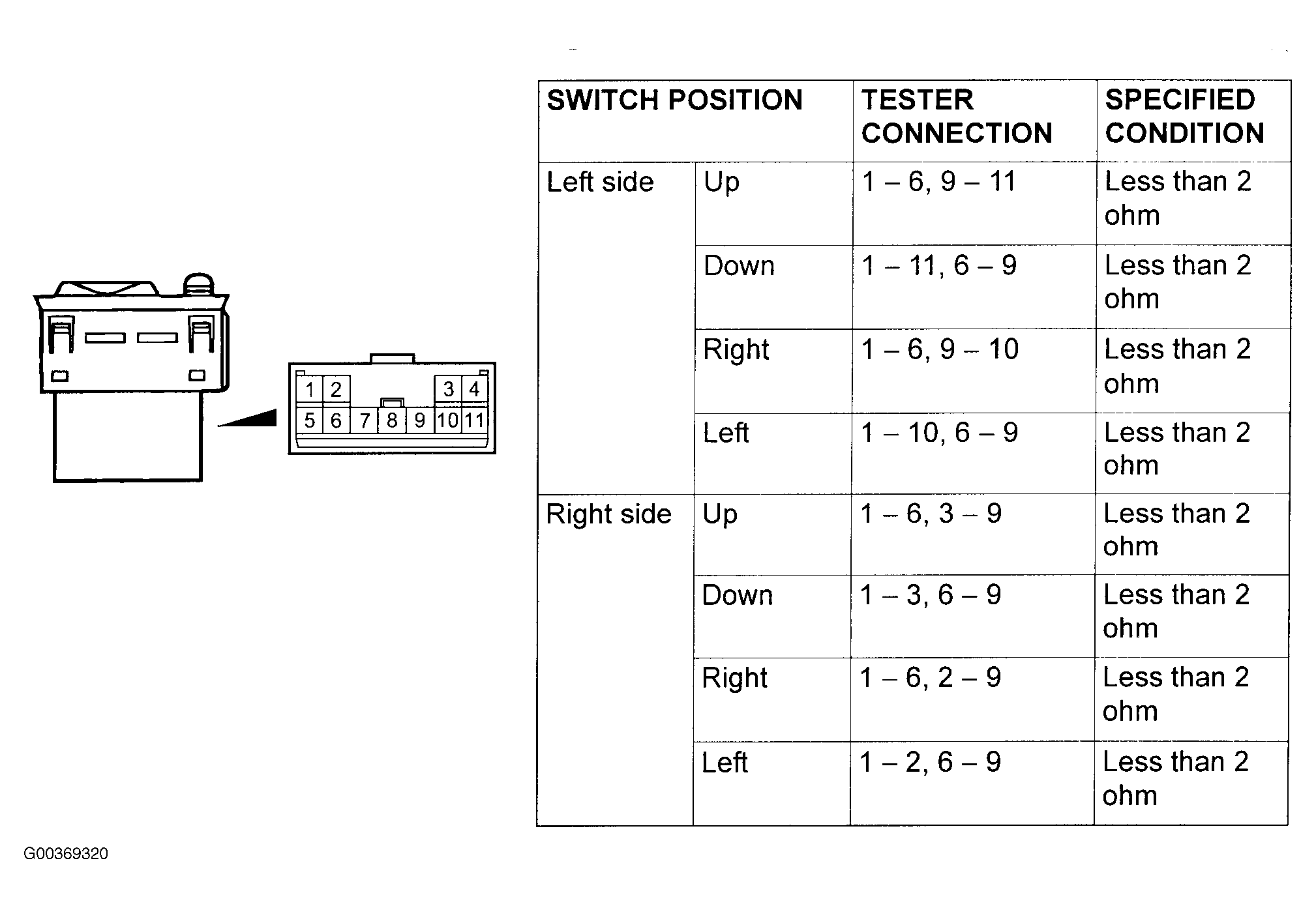

Fig 1: Checking Mirror Control Switch Continuity

G00369320

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
