Removal And Installation: Notes

For trim removal procedures, follow numbered steps in illustration. See Fig 1 . For trim installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing trims. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the removal procedure. See REMOVAL SERVICE POINT  .

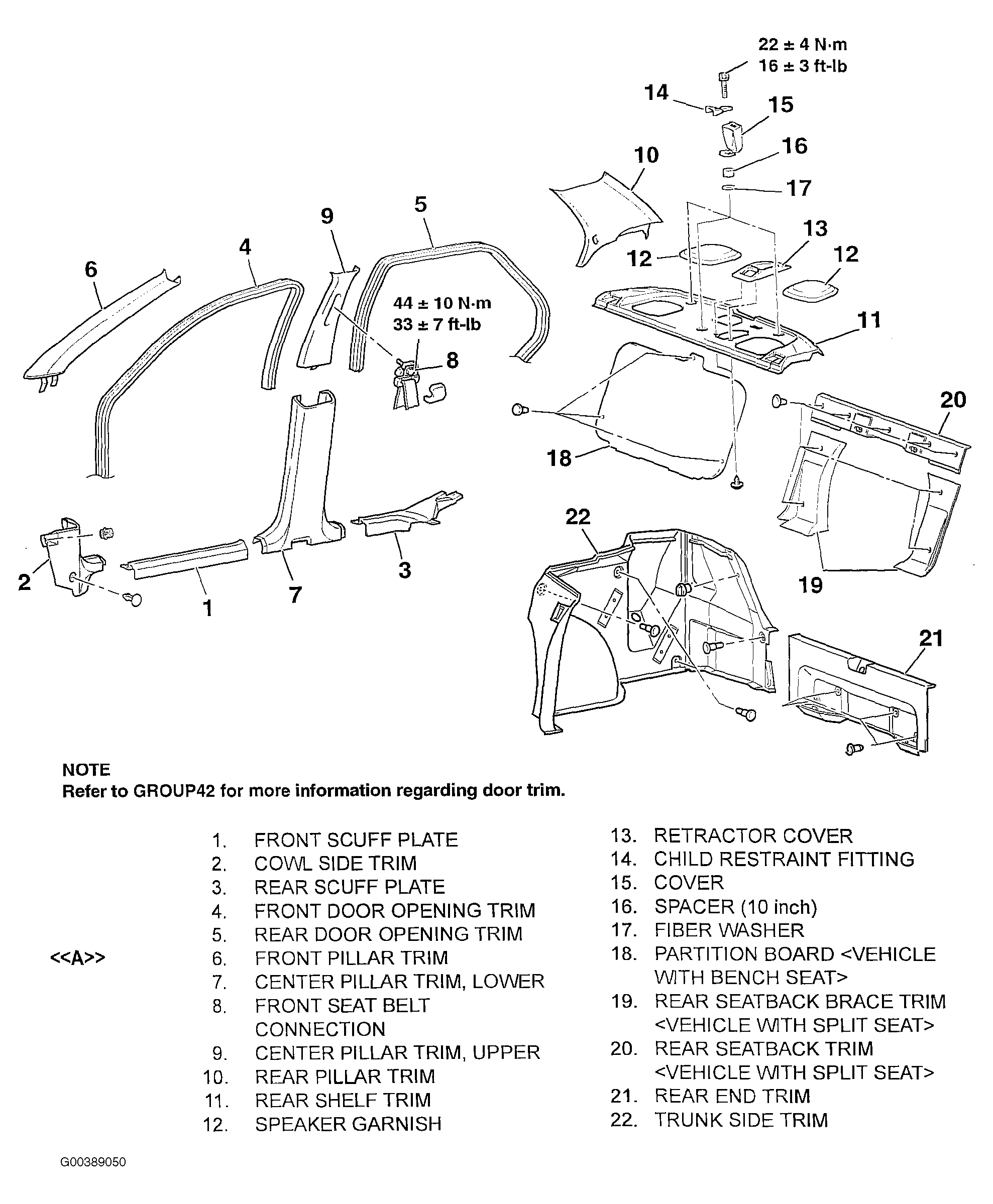

Fig 1: Removing & Installing Trims

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

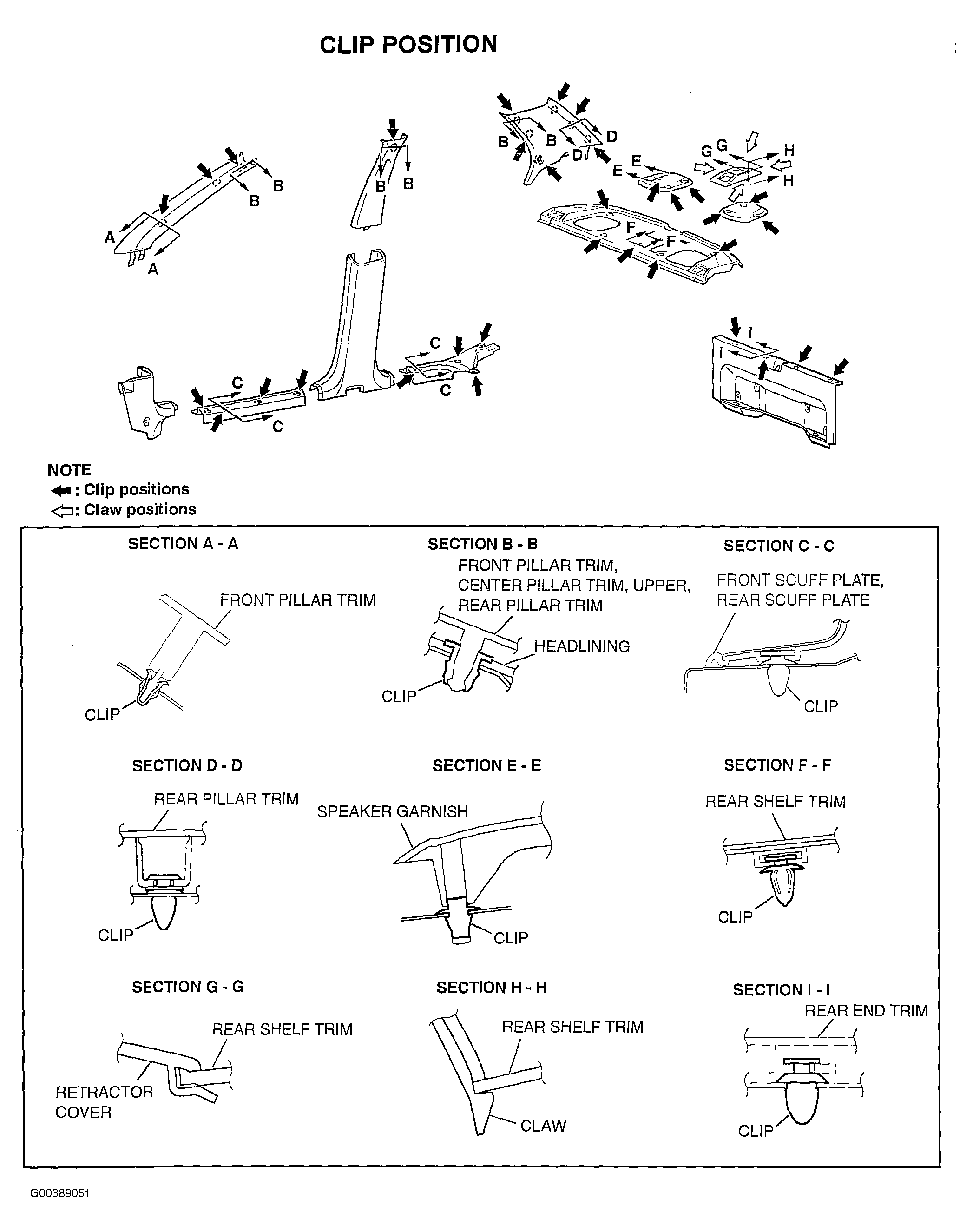

Fig 2: Identifying Clip Position

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
