Stoplight Switch

  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch. See Fig 1 .

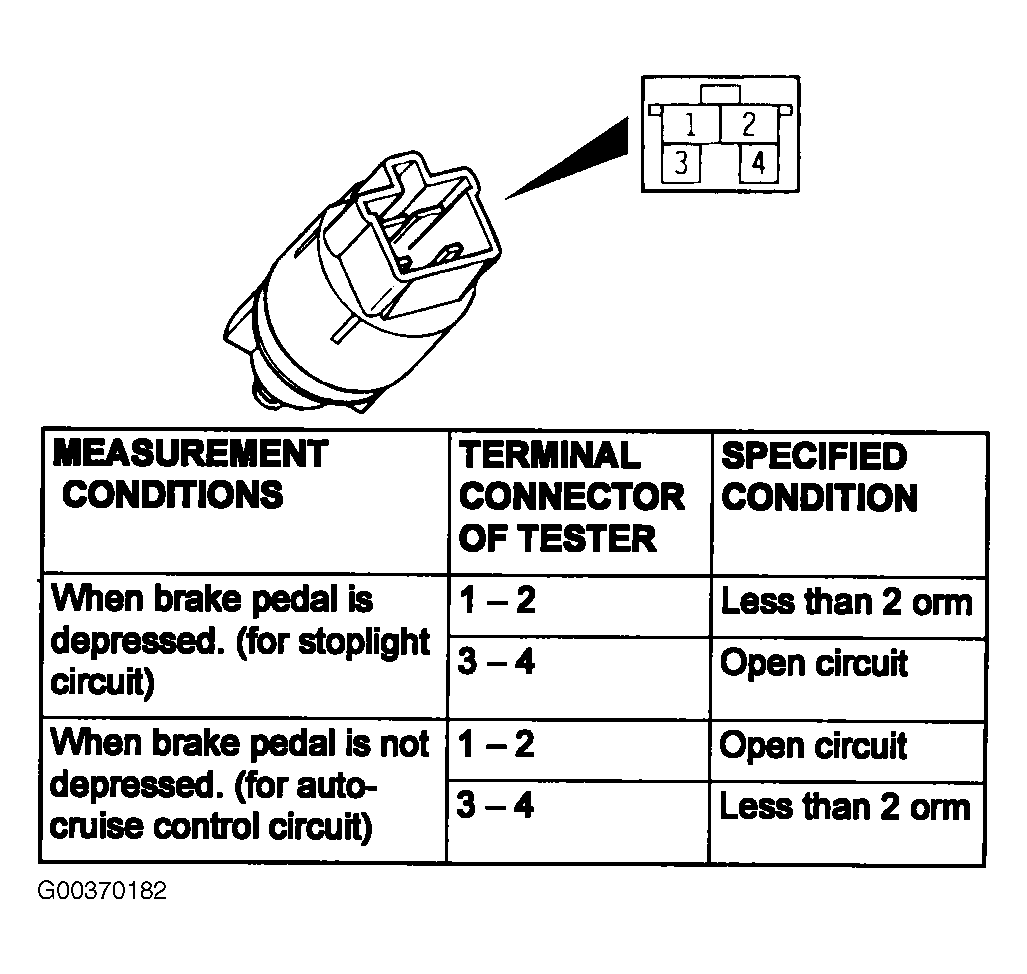

Fig 1: Checking Stoplight Switch Continuity
G00370182Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
