Sectional View

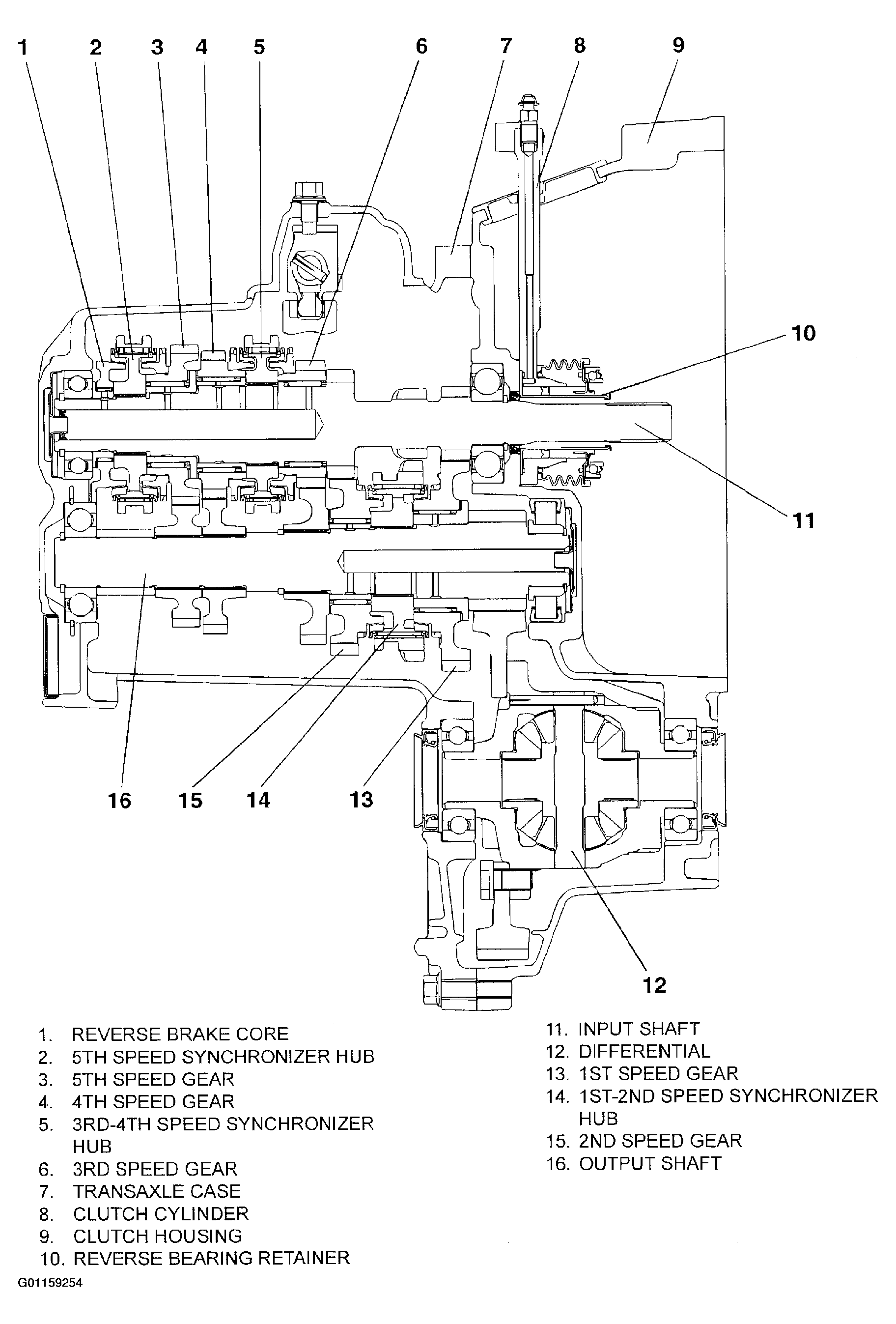

Fig 1: Identifying Manual Transaxle Sectional View
G01159254Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
