Home >> Mitsubishi >> 2002 >> Lancer ES, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Servicing - M/T >> General Description >> Notes

Servicing - M/T: General Description: Notes

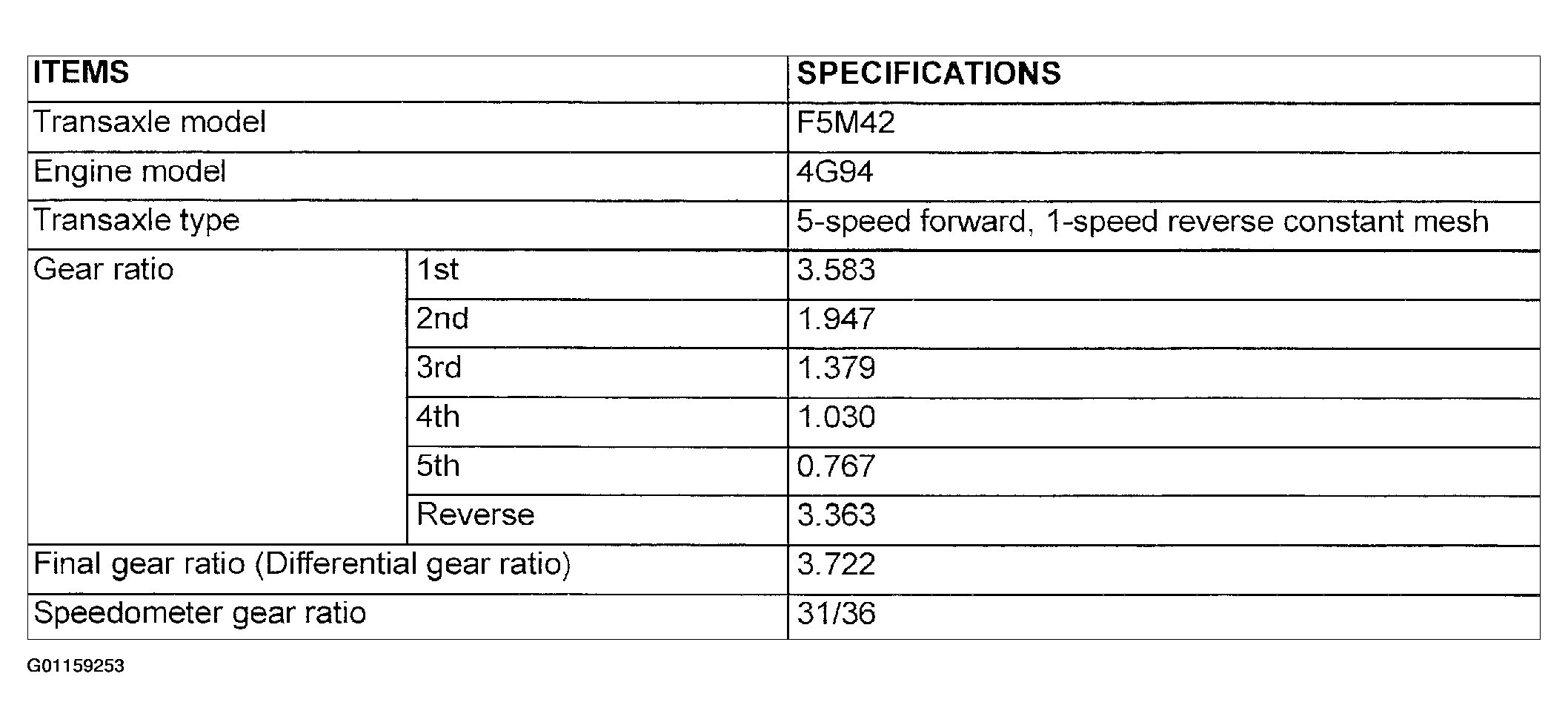

Fig 1: Identifying Manual Transaxle Specifications

G01159253

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
