Backup Light Switch

Check for continuity between terminals.

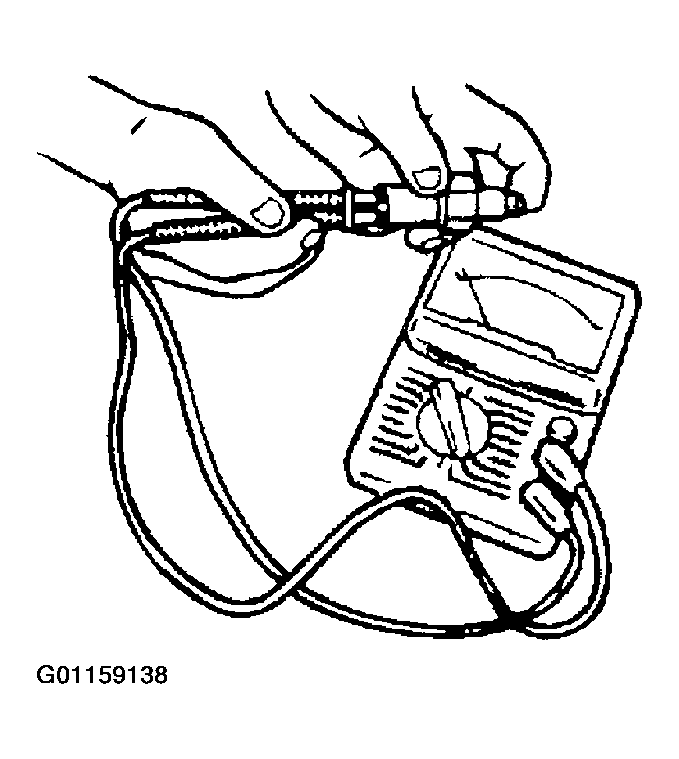

Fig 1: Checking Backup Light Switch (1 of 2)
G01159138Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Checking Backup Light Switch (2 of 2)
G01159137Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
