Disassembly And Assembly

For reverse speedometer gear disassembly procedures, follow numbered steps in illustration. See Fig 1. For reverse speedometer gear assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling reverse idler gear.

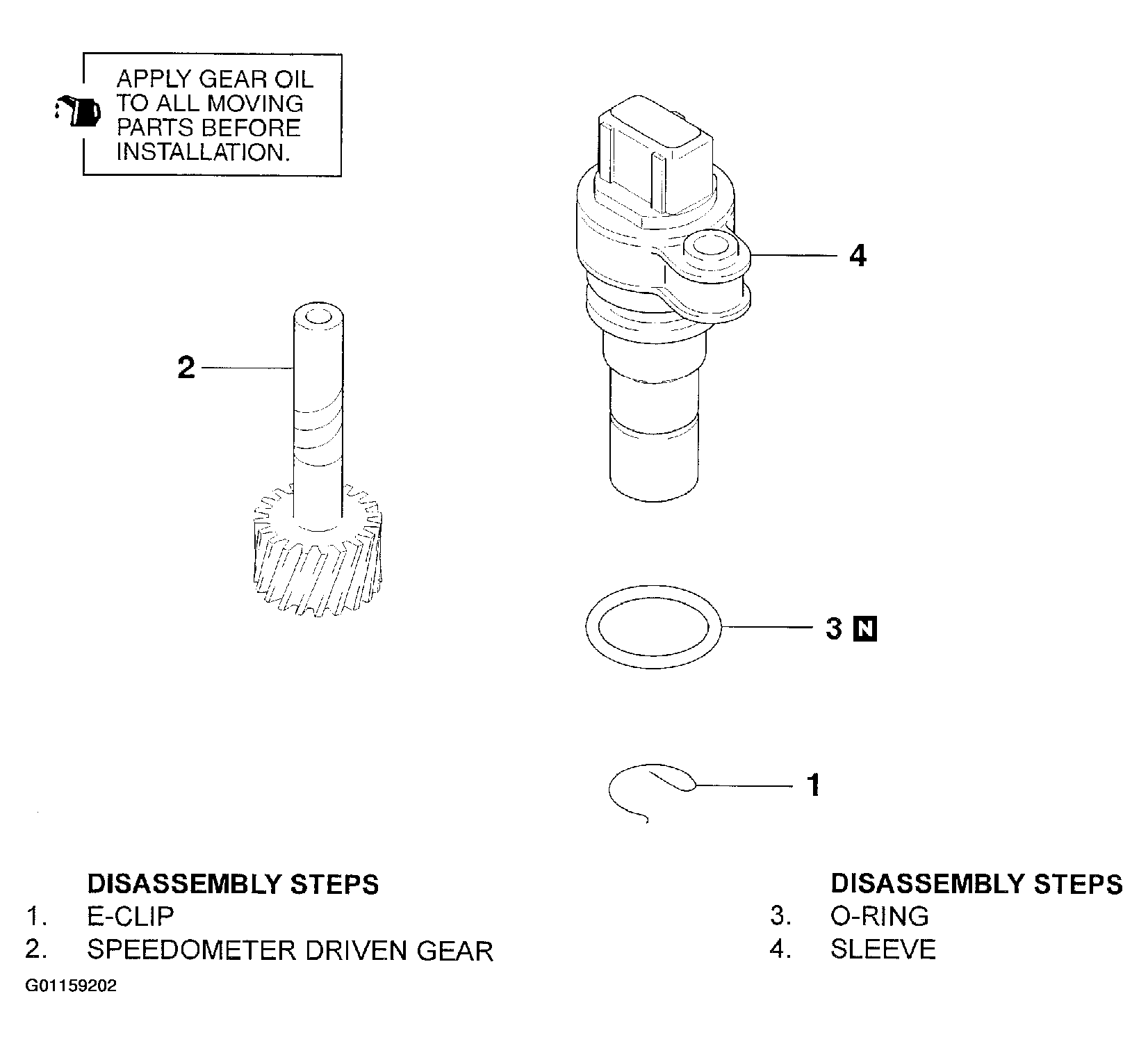

Fig 1: Exploded View Of Speedometer Gear

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
