Home >> Mitsubishi >> 2002 >> Lancer ES, Standard >> Repair and Diagnosis >> Transmission >> Clutch >> Specifications >> Fastener Tightening Specifications

Fastener Tightening Specifications

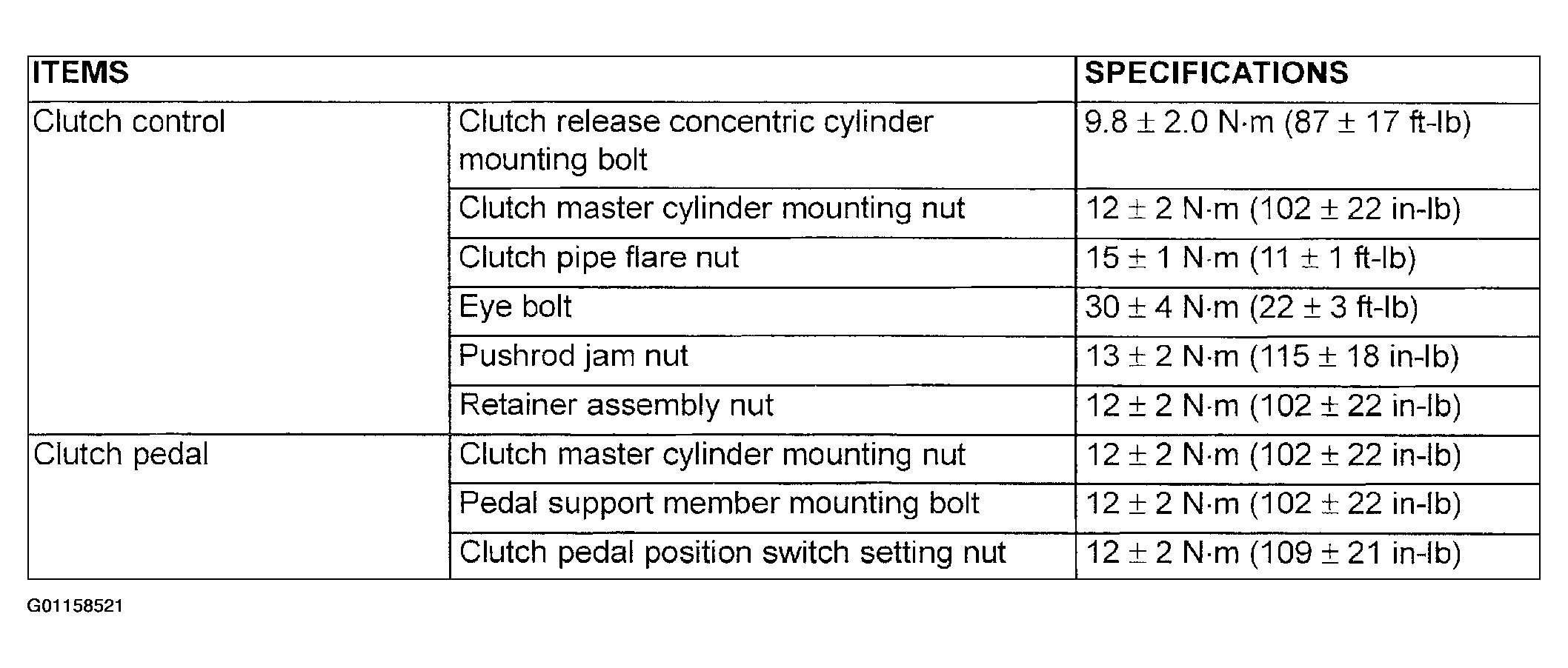

Fig 1: Fastener Tightening Torque Specifications Table
G01158521Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

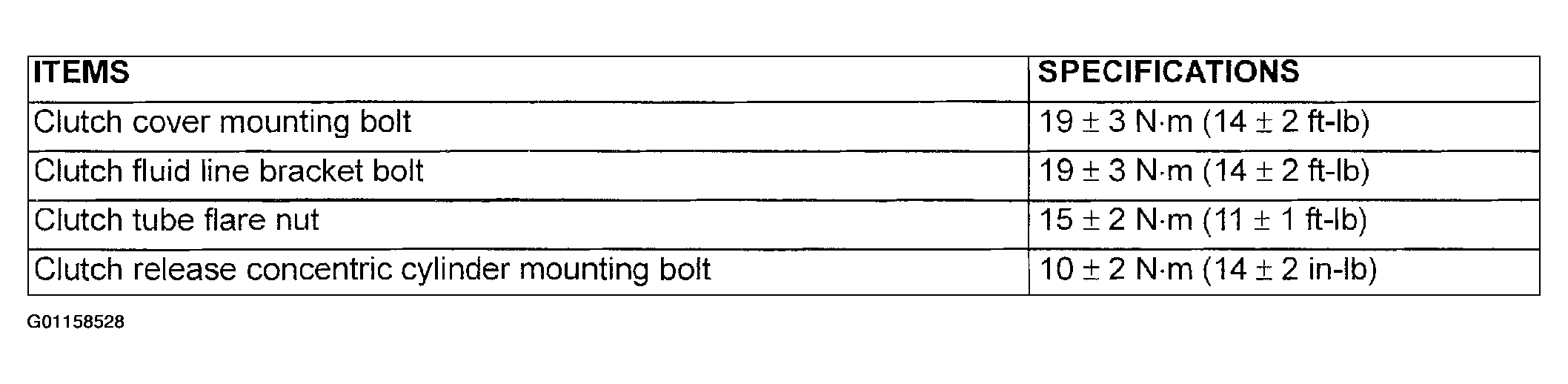

Fig 1: Fastener Tightening Torque Specifications Table
G01158528Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
