Removal And Installation

For clutch control removal procedures, follow numbered steps in illustration. See Fig 1. For clutch control installation procedures, follow numbers steps in illustration in reverse order.

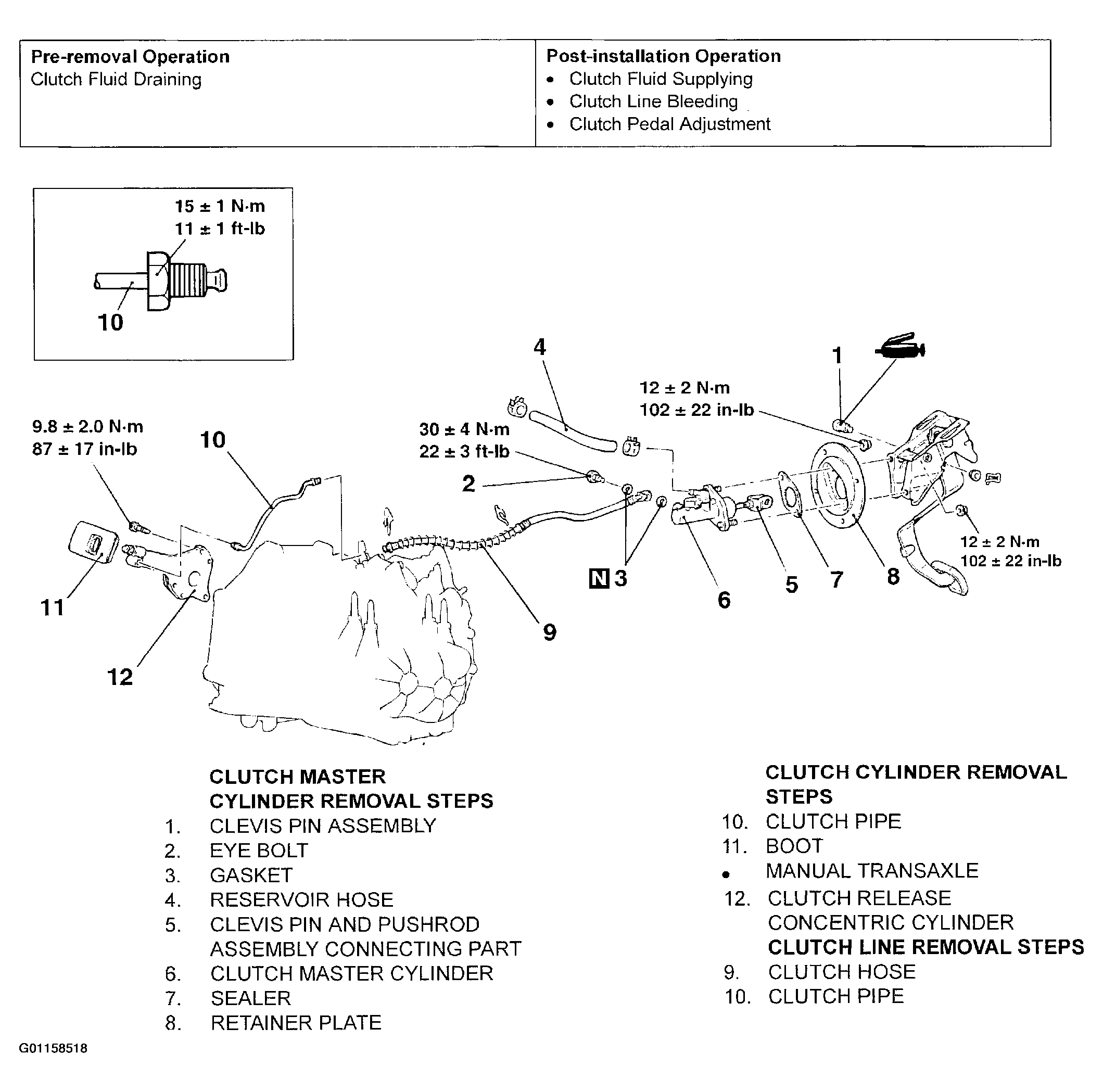

Fig 1: Removing & Installing Clutch Control

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
