DTC P0446: Evaporative Emission Control System Vent Control Circuit: Notes

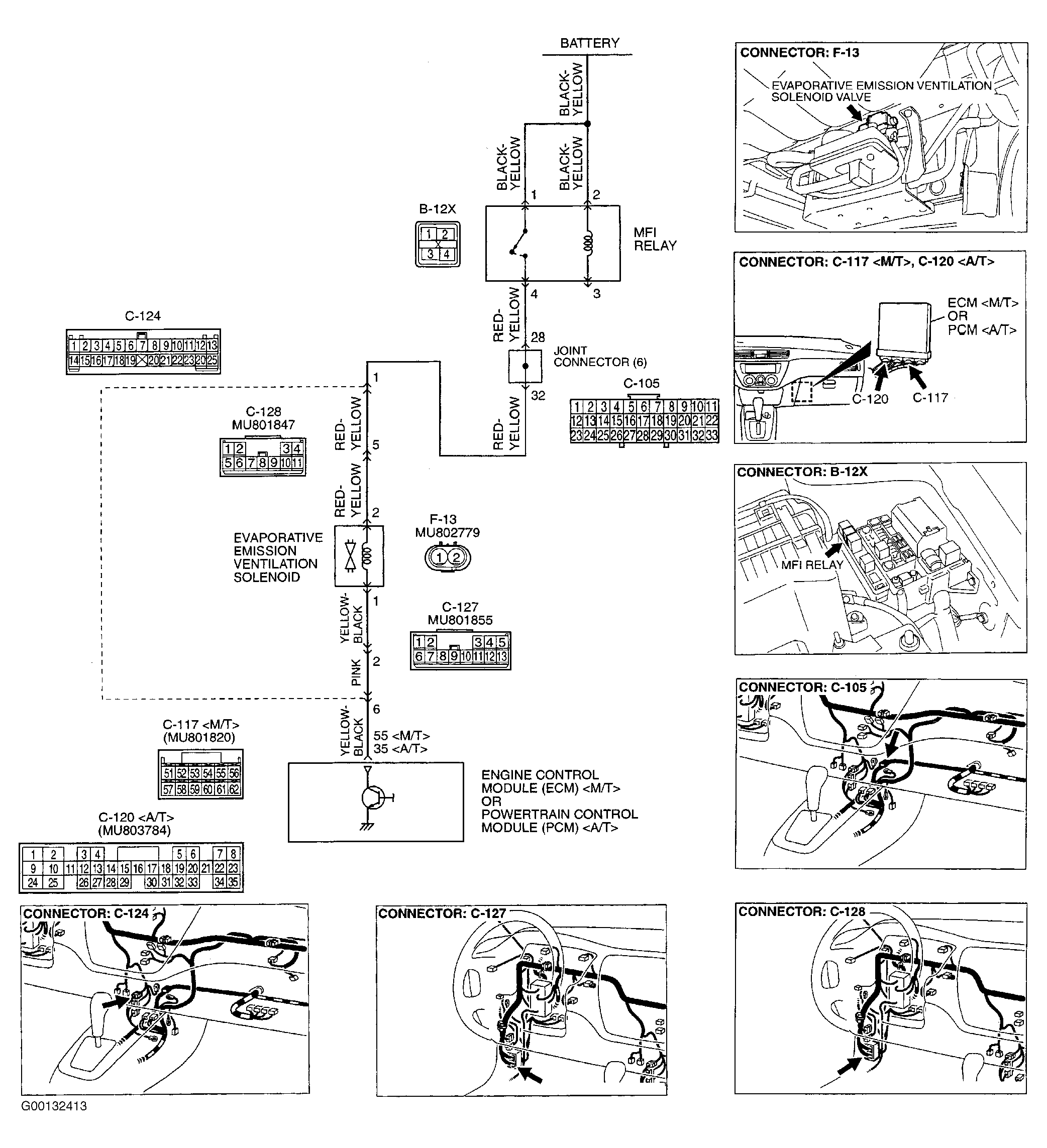

Fig 1: Identifying EVAP Emission Vent Solenoid Circuit, Component & Connector Location
G00132413Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
