Home >> Mitsubishi >> 2002 >> Lancer ES, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Diagnostic Tests >> DTC P1400: Manifold Differential Pressure Sensor Circuit Malfunction >> Notes

DTC P1400: Manifold Differential Pressure Sensor Circuit Malfunction: Notes

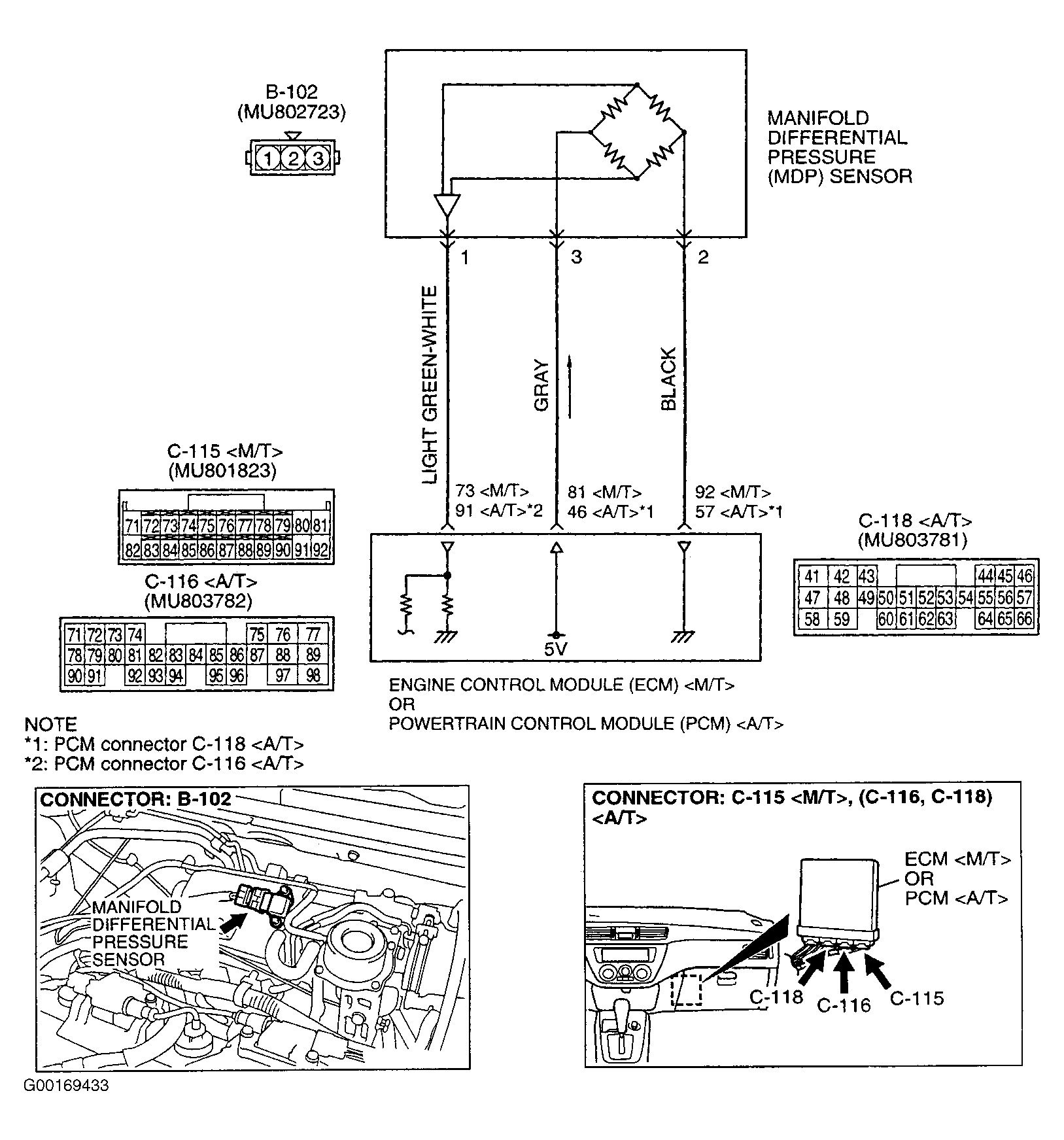

Fig 1: Identifying Manifold Differential Pressure Sensor Circuit, Component & Connector Location
G00169433Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
