>>A<< Transaxle Assembly Installation

Inserting the torque converter into the transaxle oil pump so that the shown dimension is approximately. 12.2 mm (0.48 inch) <2.4L ENGINE>, approximately 9.4 mm (0.37 inch) <3.0L ENGINE>. Install the transaxle assembly to the engine.

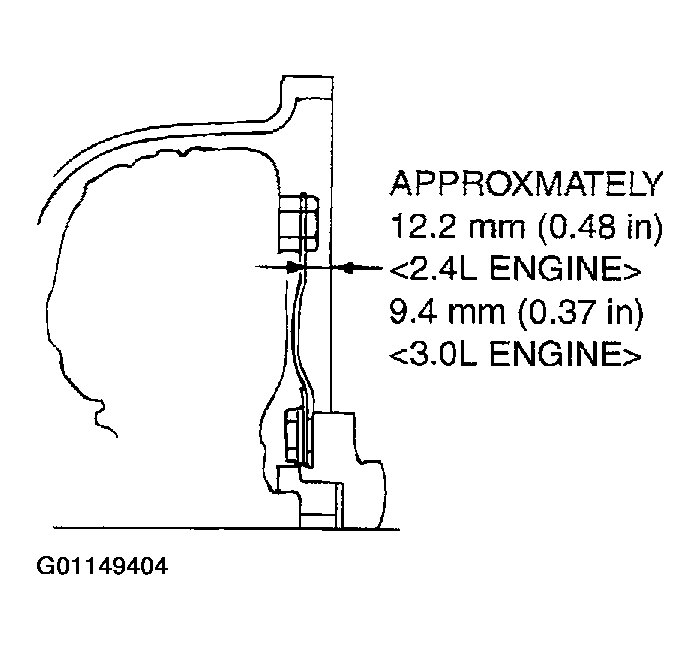

Fig 1: Inserting Torque Converter Into Transaxle Oil Pump
G01149404Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
