Stoplight Switch

  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch.

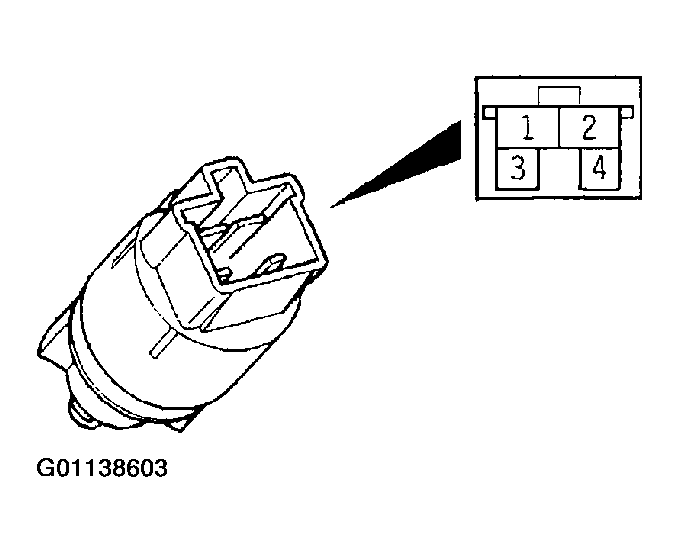

    Fig 1: Identifying Stoplight Switch Terminals
    G01138603Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

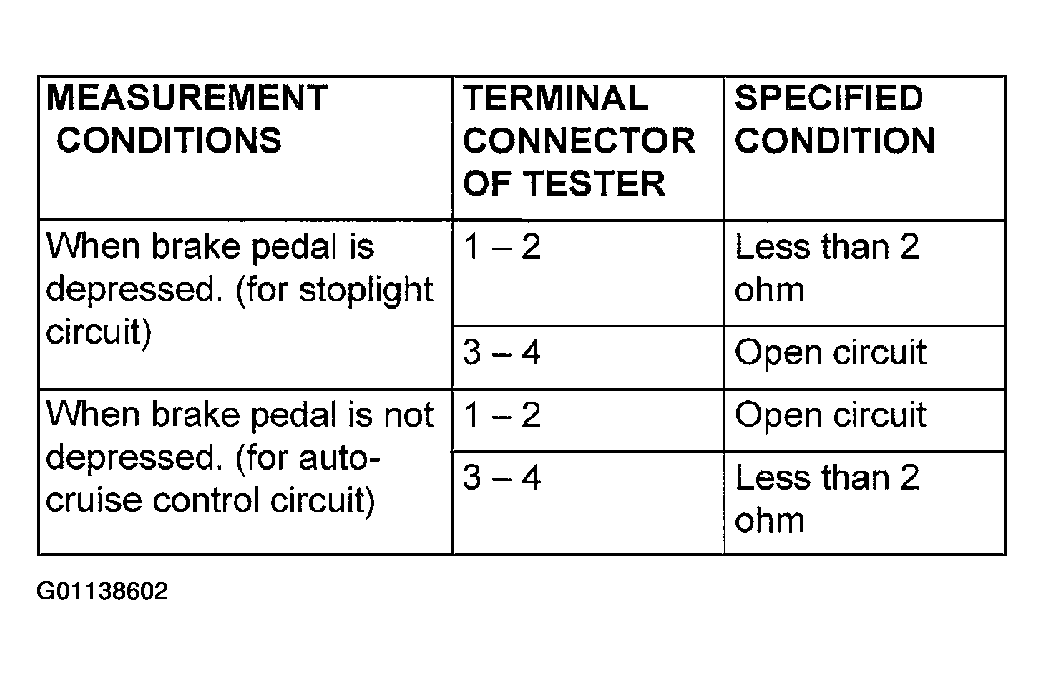

    Fig 2: Stoplight Switch Continuity
    G01138602Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
