Auto-Cruise Control Switch Check

1. Turn the ignition switch to the "ON" position.
2. Check that the indicator light within the combination meter illuminates when the main switch is switched "ON."

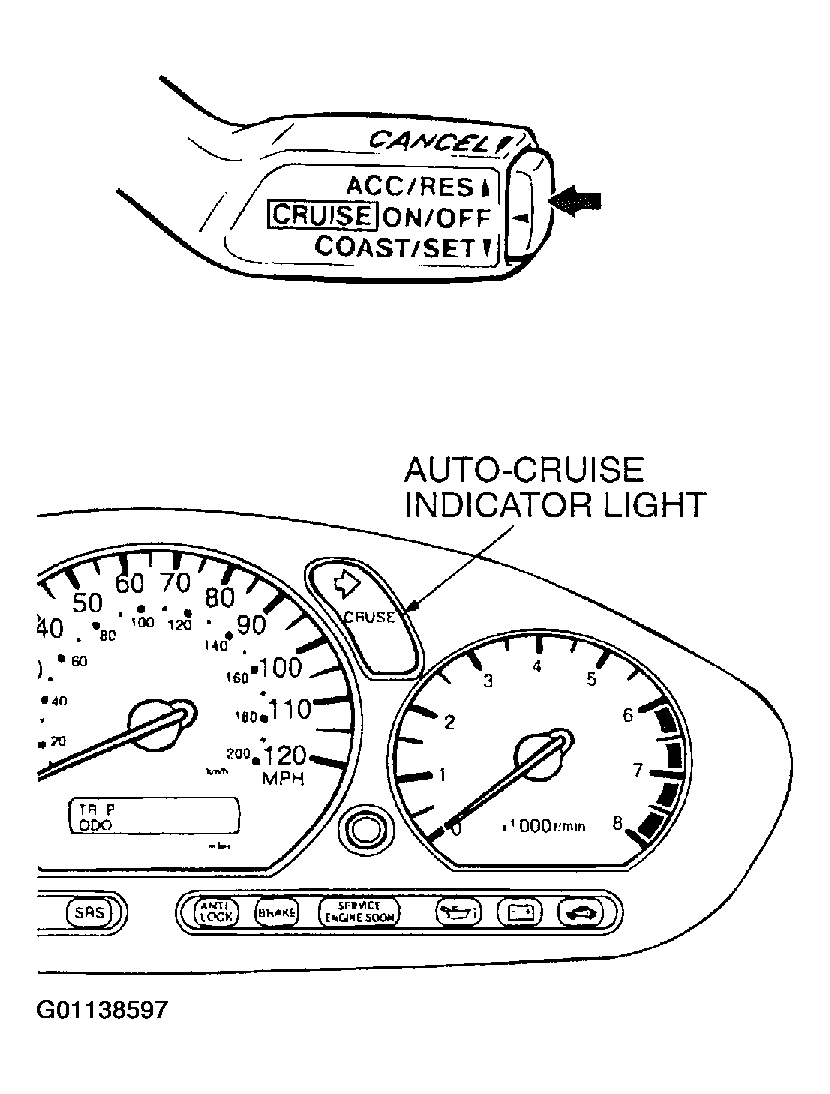

   Fig 1: Auto-Cruise Control Switch Check

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Measure the resistance between the terminals when each of the "SET," "RESUME," "CANCEL" and "MAIN" switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.

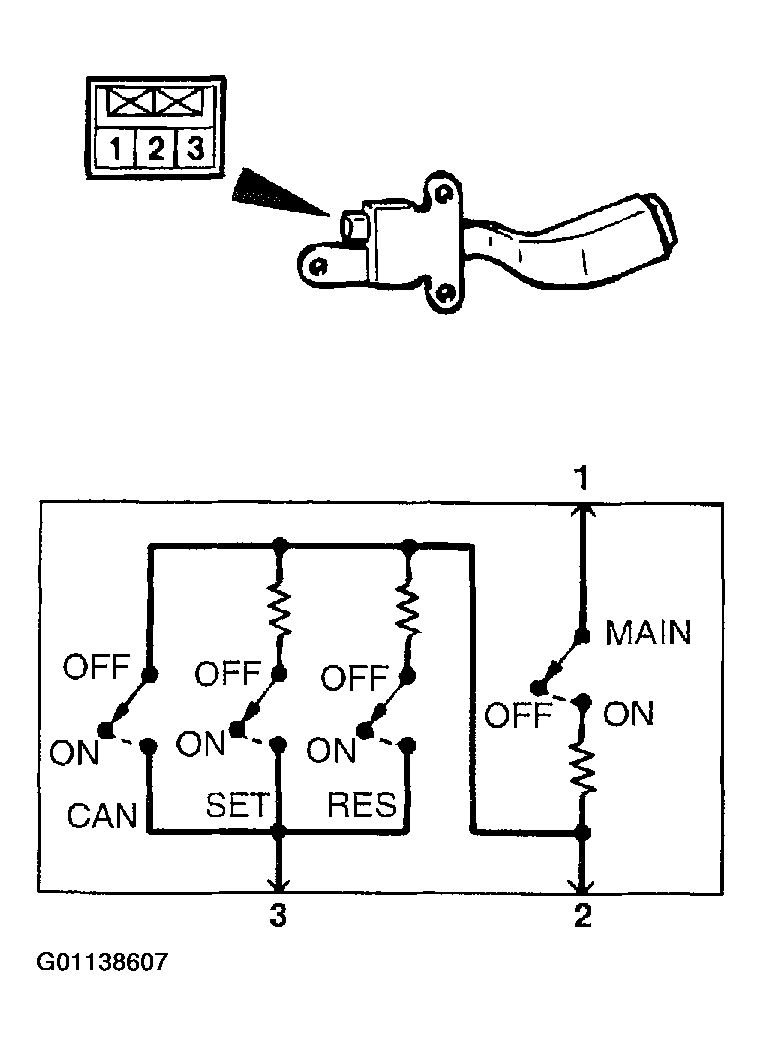

Fig 1: Identifying Auto-Cruise Control Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

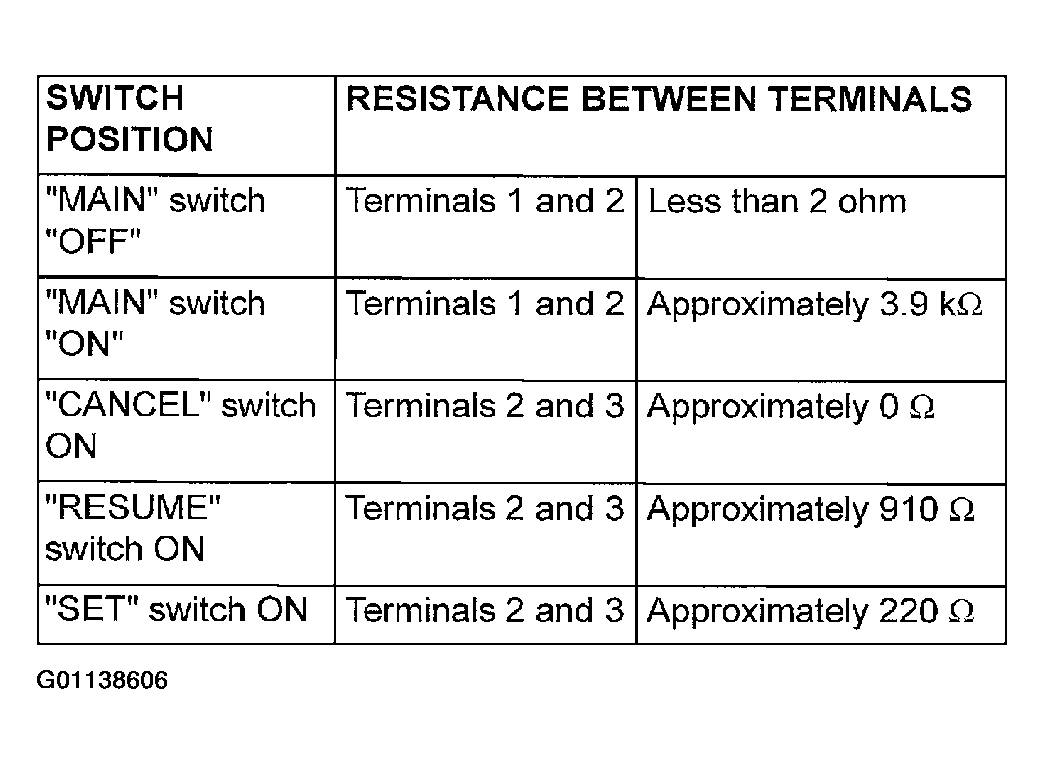

Fig 2: Auto-Cruise Control Switch Check

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
