DTC 17: Throttle Position Sensor System
>>
Notes
DTC 17: Throttle Position Sensor System: Notes

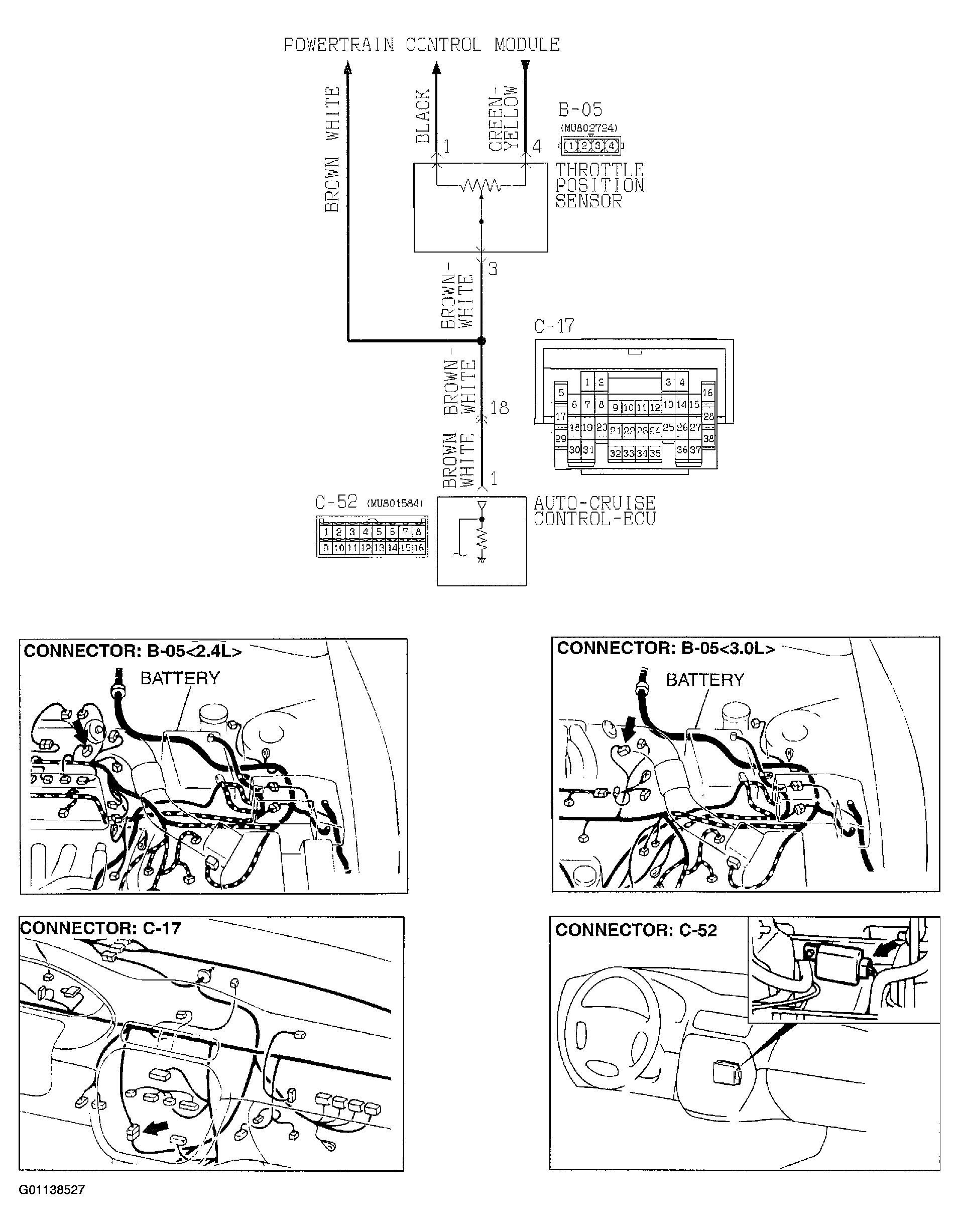

Fig 1: Circuit Diagram & Connector Locations
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
