Home >> Mitsubishi >> 2002 >> Galant LS, 2.4 G >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Auto-Cruise Control System Diagnosis >> Diagnostic Trouble Code Procedures >> DTC 15: Auto-cruise Control Switch System >> Notes

DTC 15: Auto-cruise Control Switch System: Notes

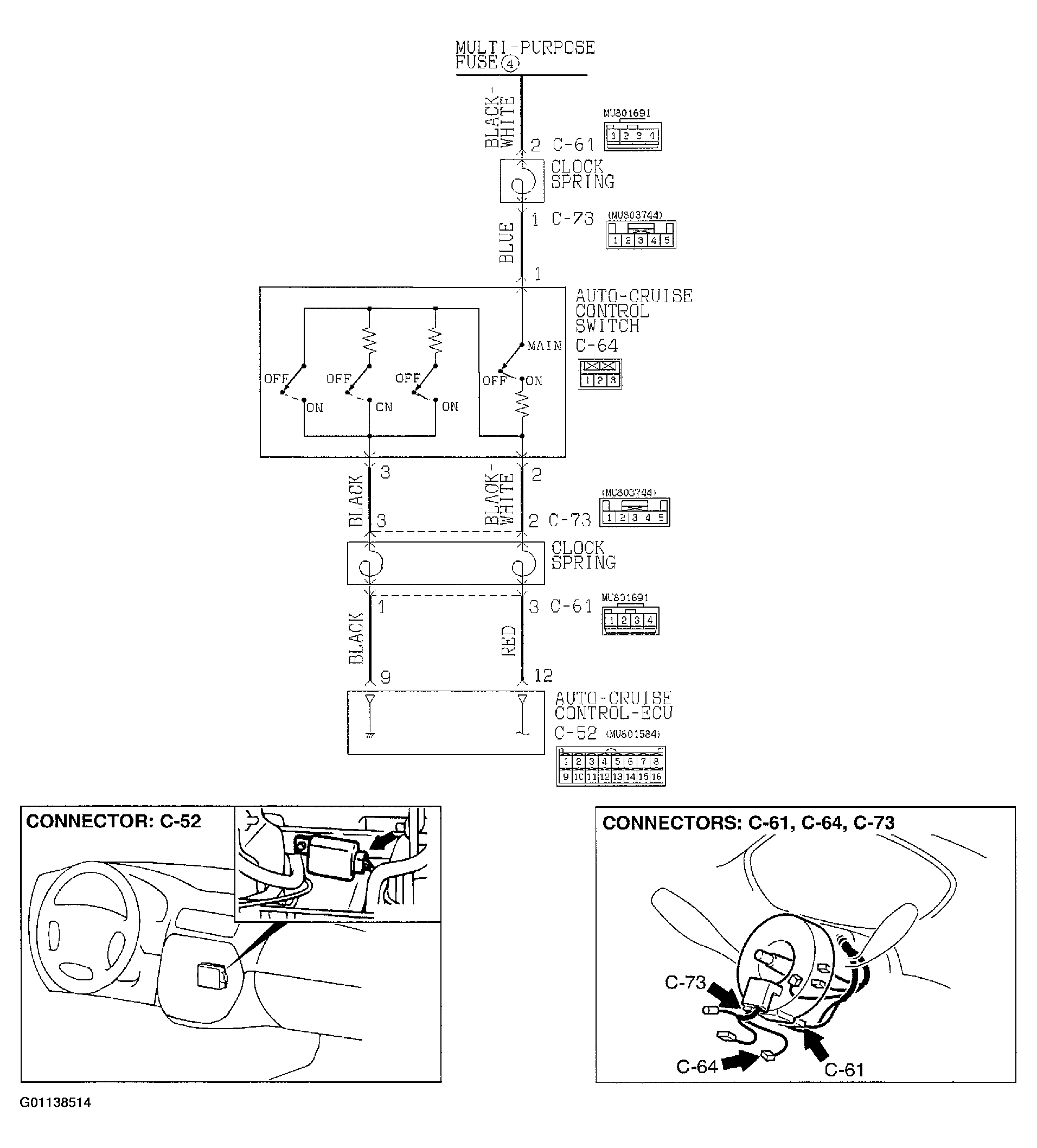

Fig 1: Circuit Diagram & Connector Locations

G01138514

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
