Fastener Tightening Specifications

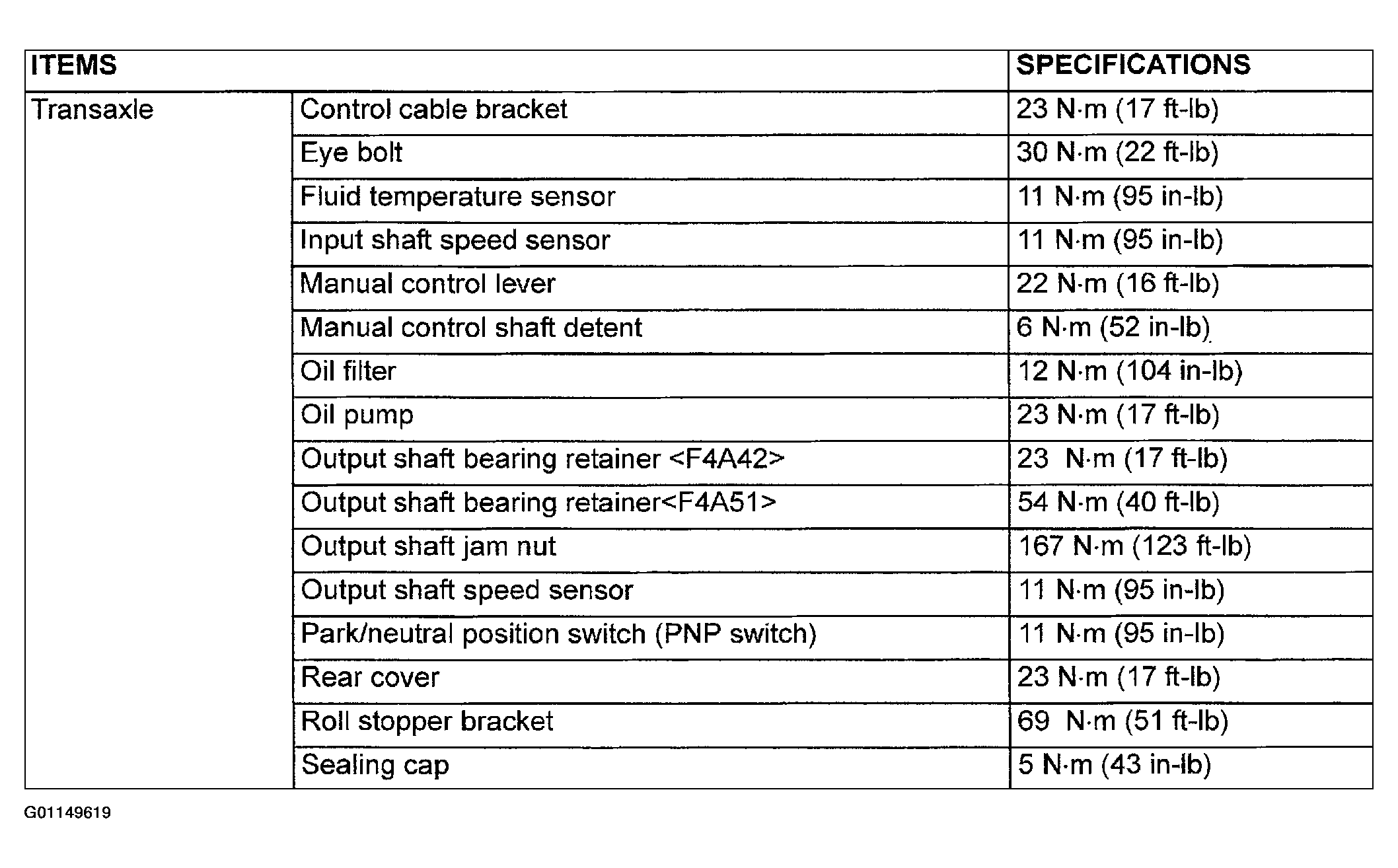

Fig 1: Torque Specifications Table (1 Of 2)
G01149619Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

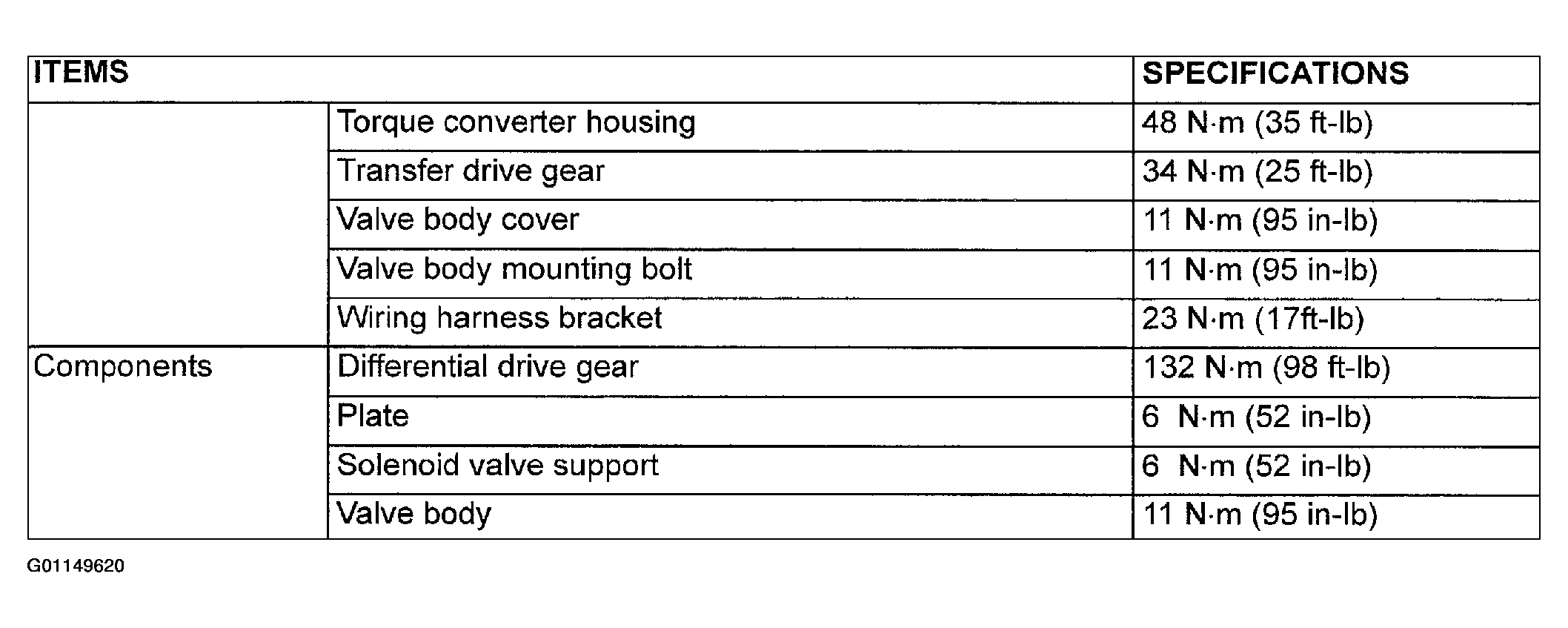

Fig 2: Torque Specifications Table (2 Of 2)
G01149620Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
