>>C<< Nut Installation

  1. Put the selector lever in the "N" position.
  2. Loosen the nut. Gently pull the transaxle control cable in the direction of the arrow until the cable is taut. Tighten the nut at the specified torque.

Tightening torque: 11 N.m (97 in-lb)

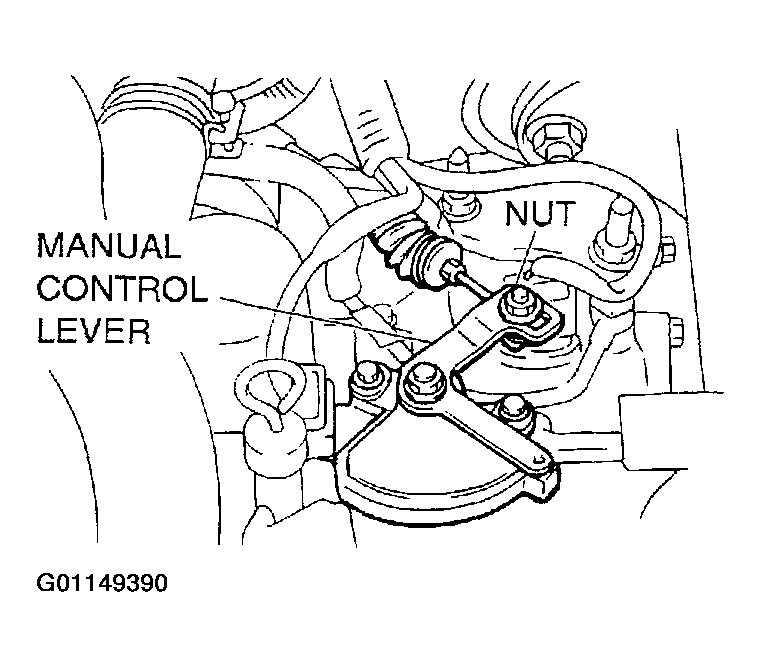

Fig 1: Installing Nut
G01149390Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
