<< C>> Engine Assembly Supporting

Set special tools MB991453 and MZ203827 to the vehicle to support the engine assembly.

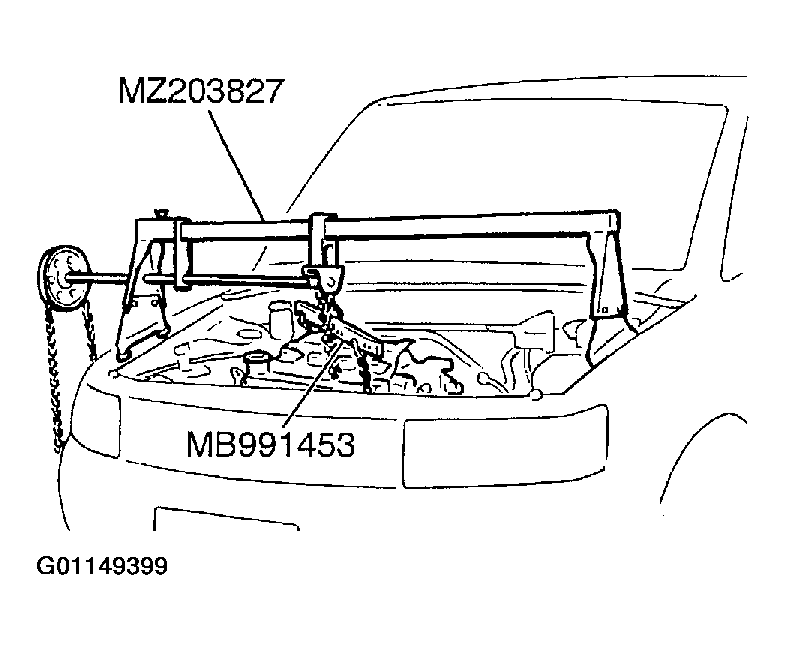

Fig 1: Supporting Engine Assembly

G01149399

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
