A/T Control Component Layout

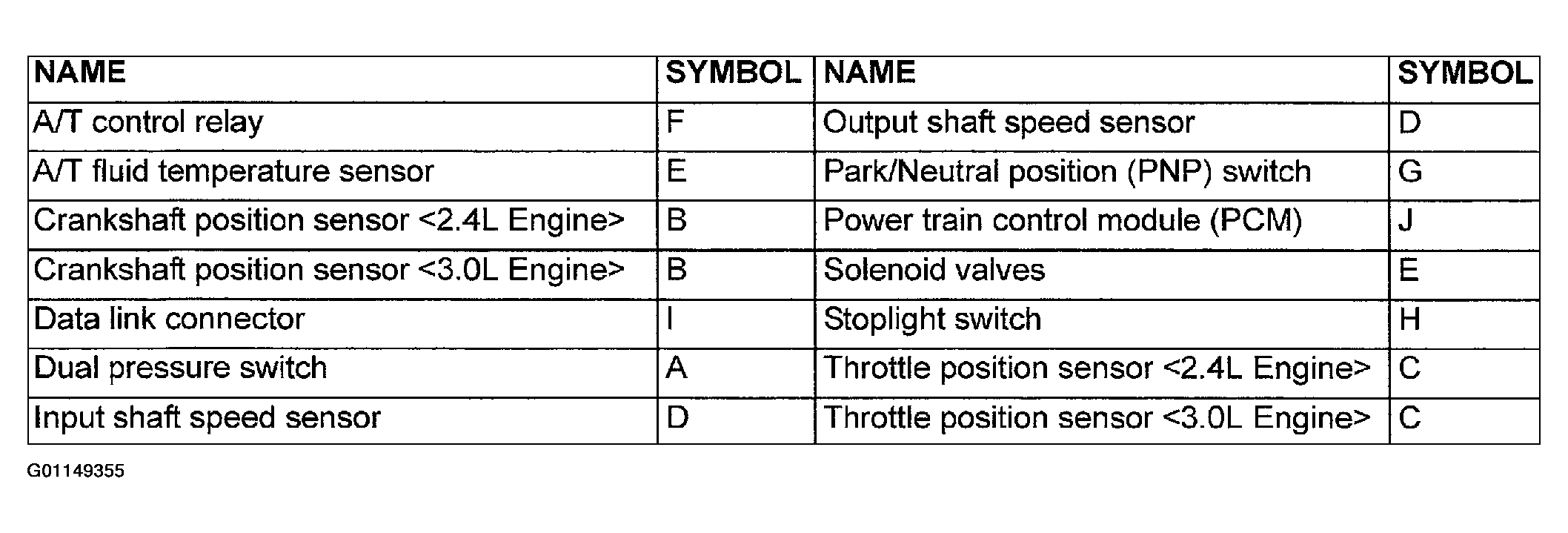

Fig 1: Identifying A/T Control Component Layout (1 Of 3)
G01149355Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

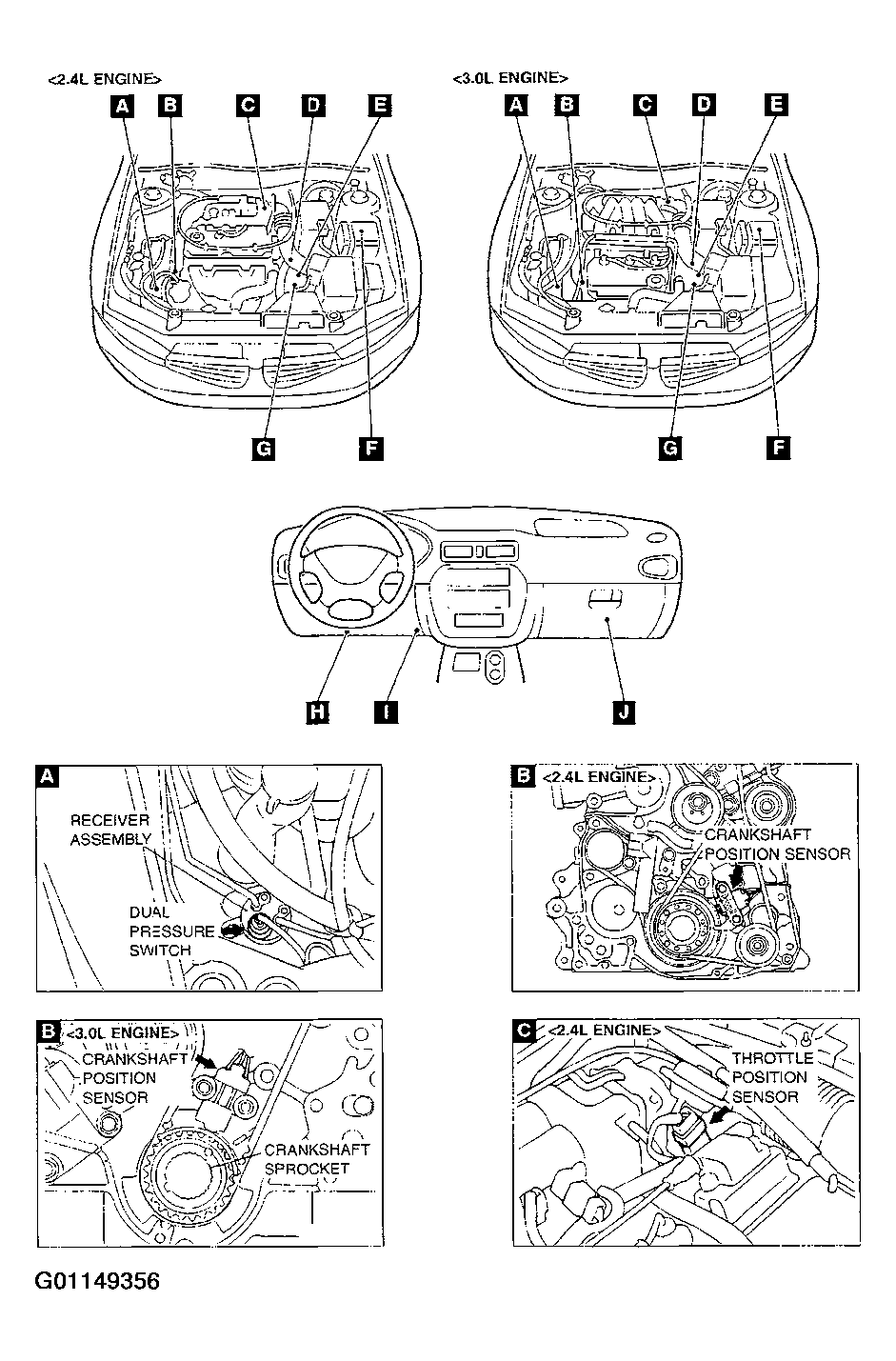

Fig 2: Identifying A/T Control Component Layout (2 Of 3)
G01149356Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

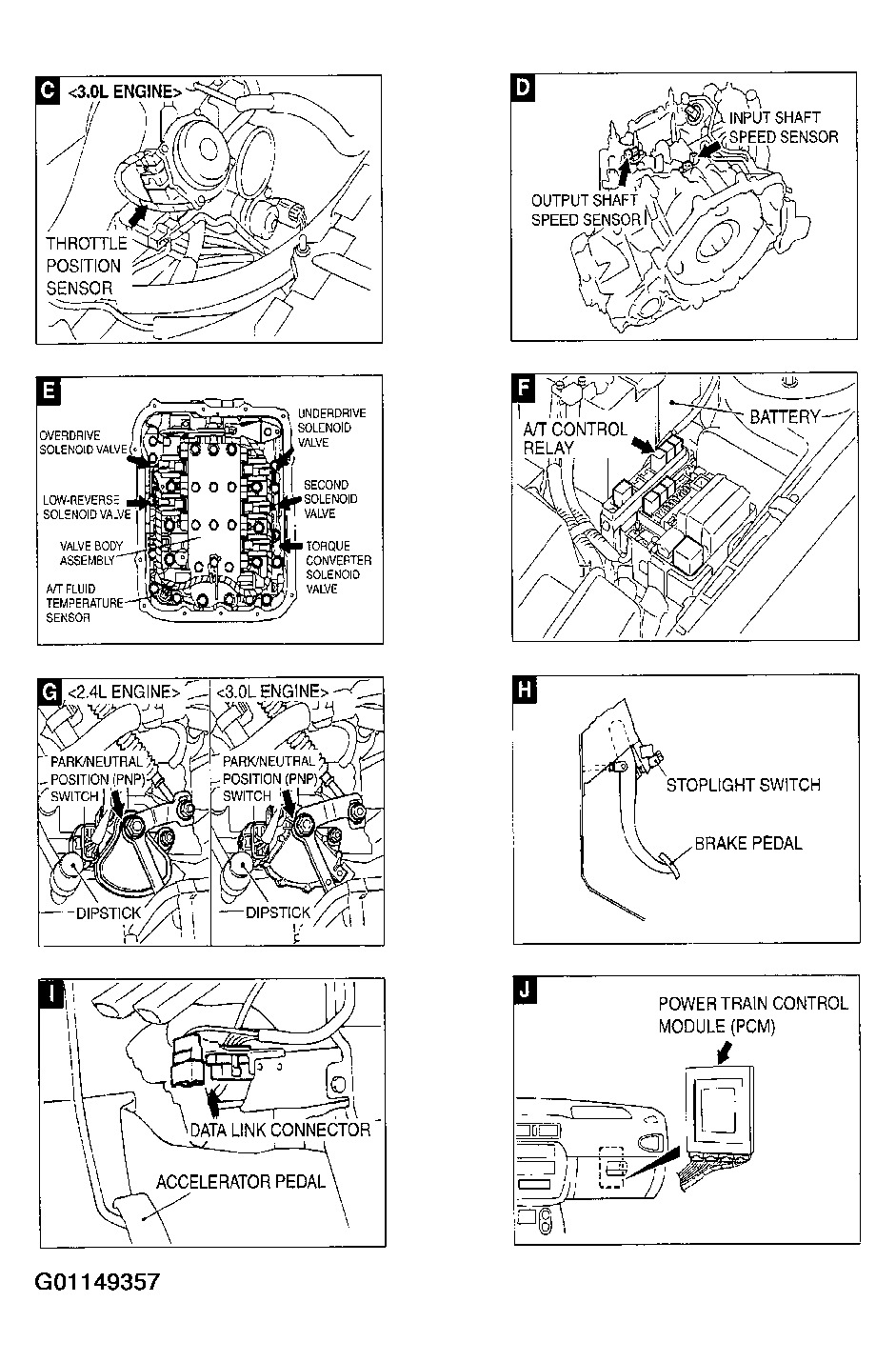

Fig 3: Identifying A/T Control Component Layout (3 Of 3)
G01149357Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
