Removal And Installation: Notes
CAUTION:
When removing and installing the transmission control cable and shift lock cable unit, be careful not to impact the SRS-ECU.

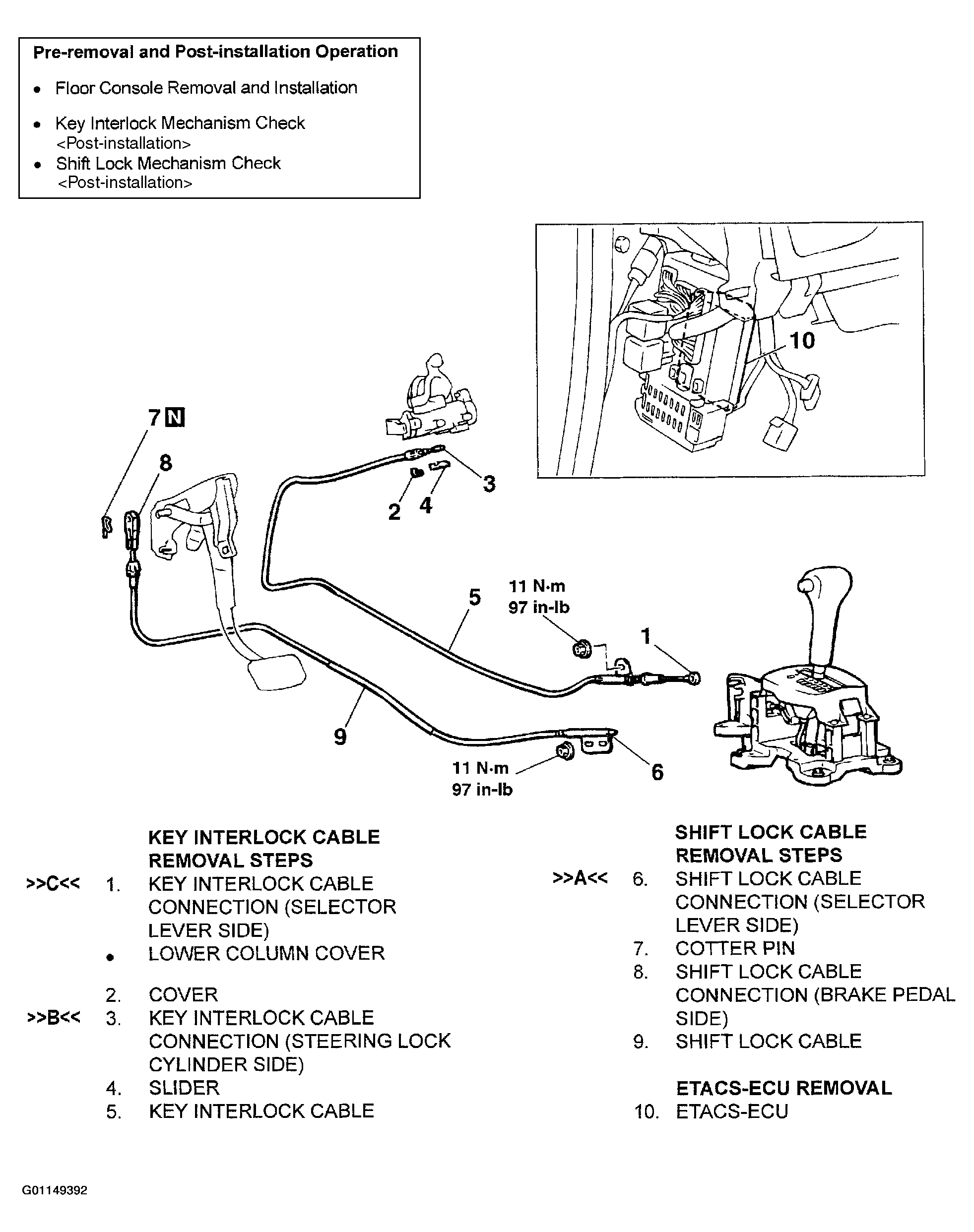

For A/T key interlock and shift lock mechanisms removal procedures, follow numbered steps in illustration. See Fig 1 . For A/T key interlock and shift lock mechanisms installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing A/T key interlock and shift lock mechanisms. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See INSTALLATION SERVICE POINTS .
