Other Monitor
This monitor applies to DTCs not covered by the rest of the monitors. Following conditions must be met during the test:
- Engine Coolant Temperature Must Be 176°F (80°C) Or More
- Atmospheric Temperature Is 41°F (5°C) Or More
- Selector Lever Is In "D" Range
NOTE:
Remove all test equipment from vehicle and install all components and connectors that were removed or disconnected during testing.

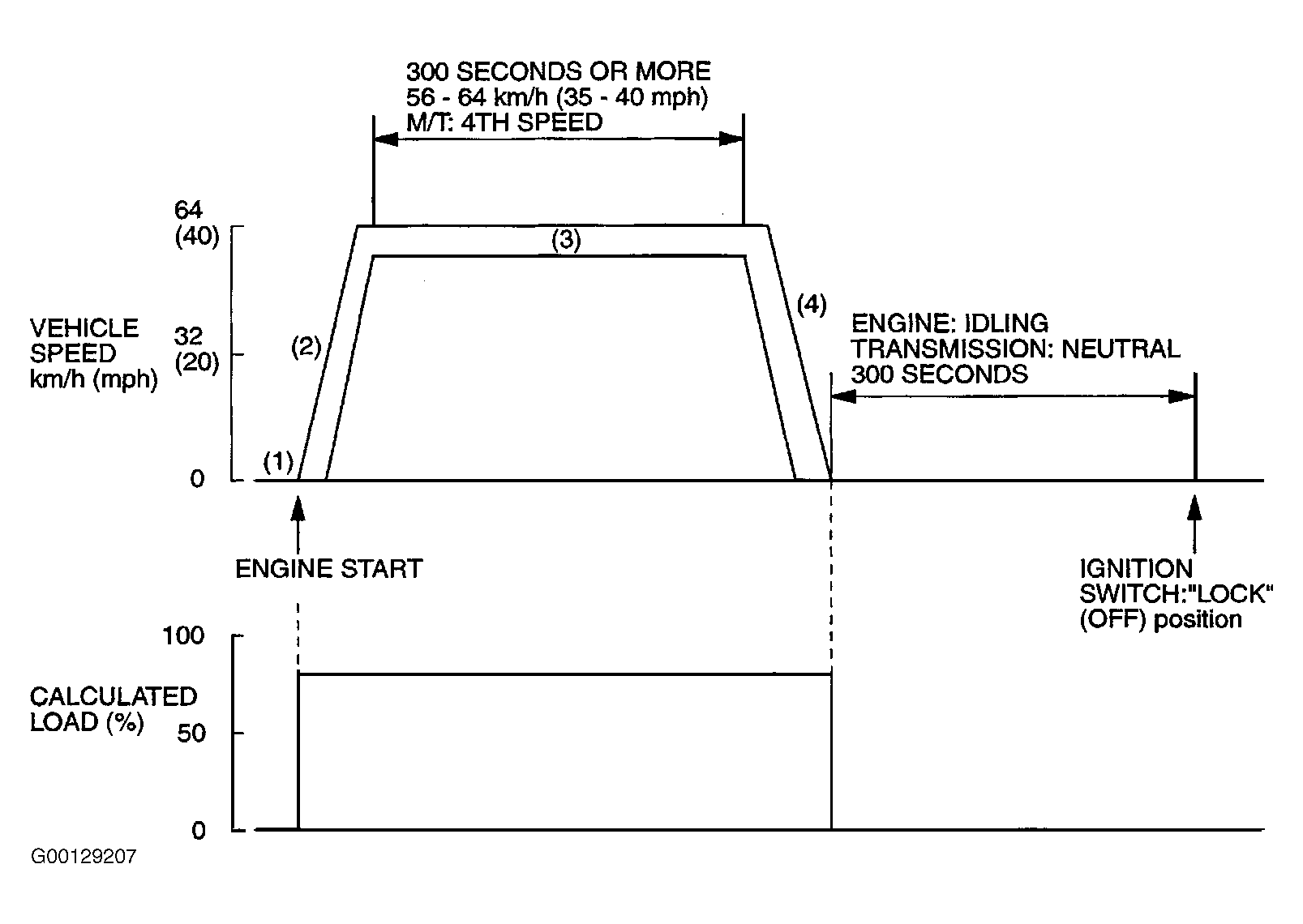

Monitor takes about 10 minutes to complete. To run monitor, use illustration. See Fig 1 . Perform steps as follows:
- Start the engine and allow it to reach 176°F (80°C).
- Accelerate vehicle to 35-40 MPH and travel for 300 seconds or more (4th gear on M/T).
- Return vehicle to shop and allow engine to continue to idle. While engine is idling, A/C switch must be in OFF position, lights and accessories must be off, steering wheel must be straight ahead, and automatic transaxle must be in "P" range. After idling for 300 seconds, turn ignition switch to LOCK position.
- Recheck for DTCs. If any DTC resets, return to appropriate diagnostic procedure under DIAGNOSTIC TESTS .
