Component Locations

NOTE: For component locations, see Fig 1 -Fig 46 .

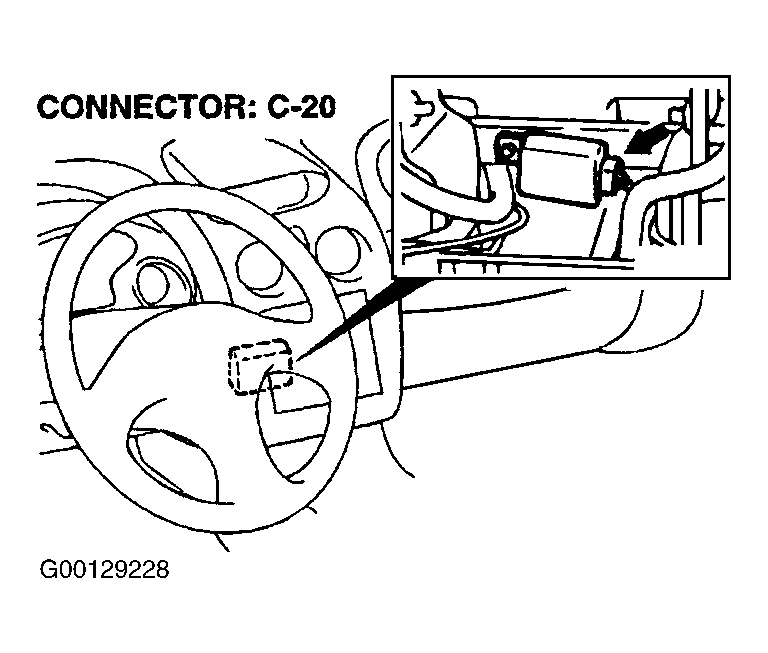

Fig 1: Locating Auto-Cruise Control ECU Harness Connector C-20

G00129228

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

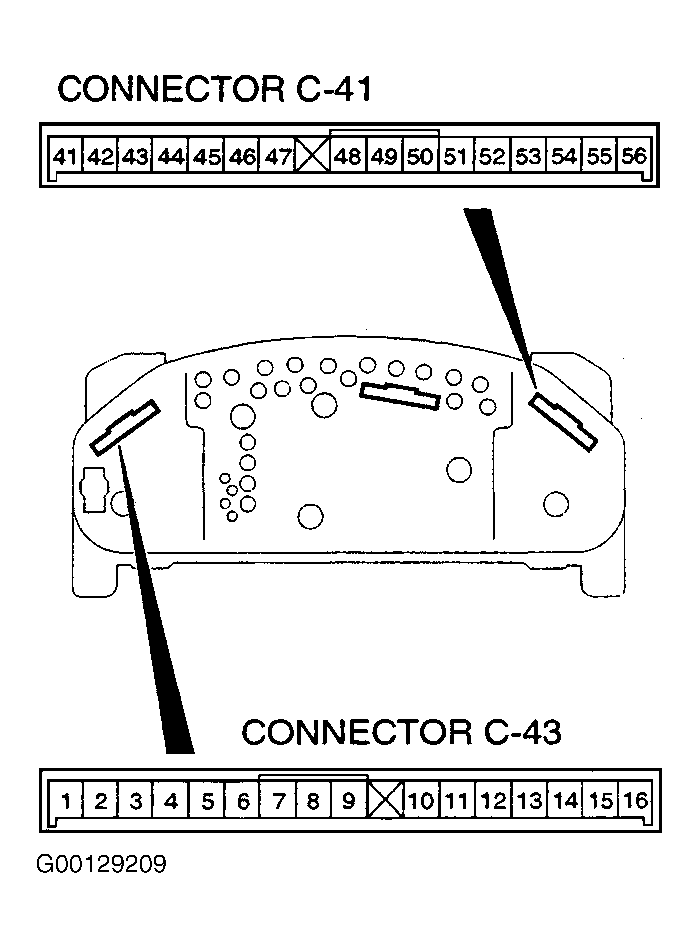

Fig 2: Locating Combination Meter C-41 & C-43 Connectors

G00129209

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

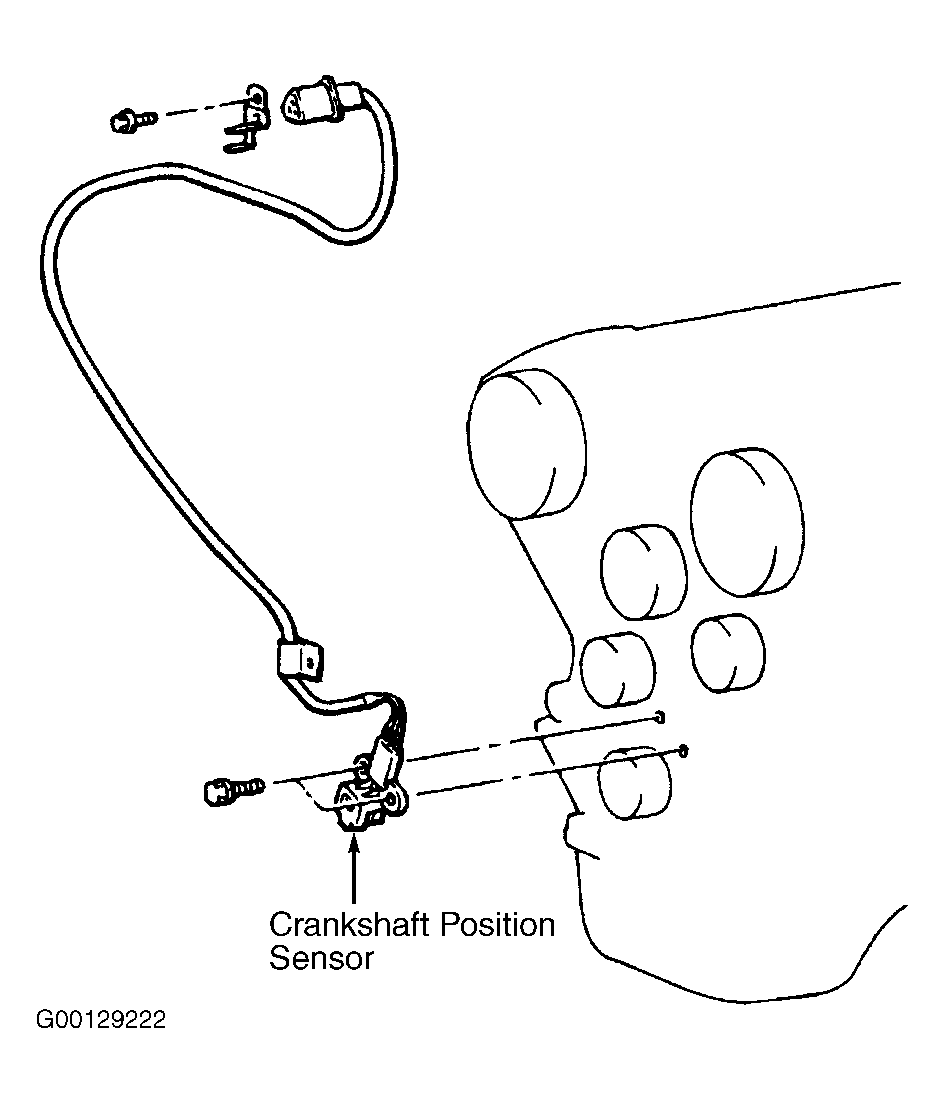

Fig 3: Locating Crankshaft Position Sensor

G00129222

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

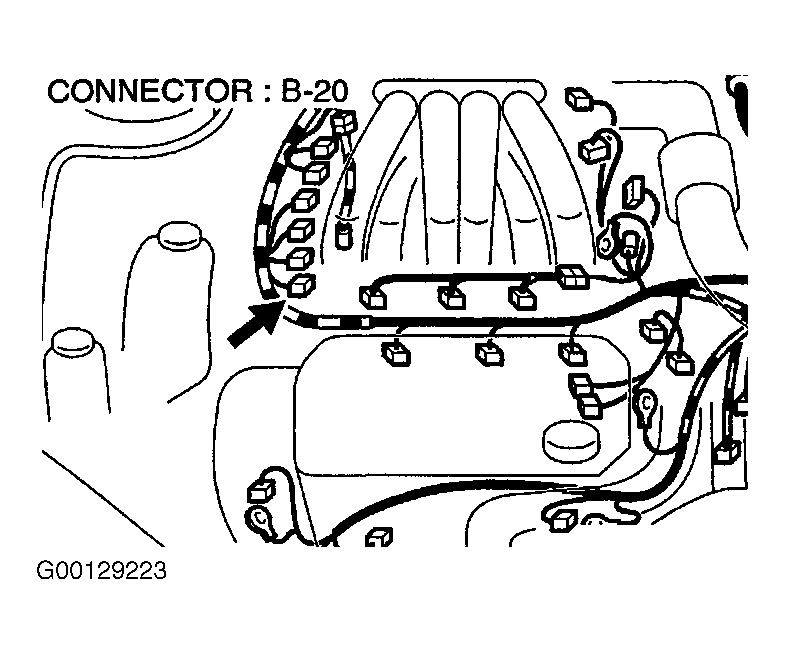

Fig 4: Locating Crankshaft Position Sensor Harness Connector B-20

G00129223

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Locating Data Link Connector

G98I00156

Courtesy of DAIMLERCHRYSLER CORP.

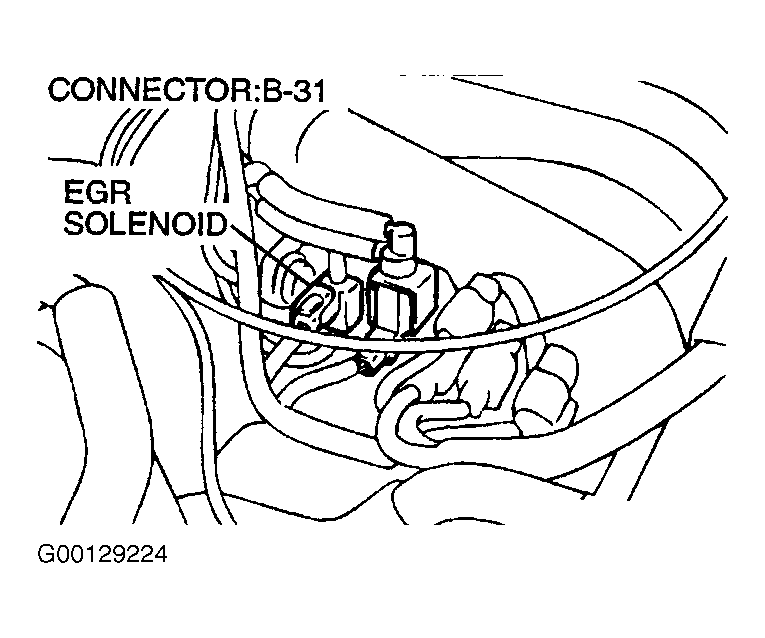

Fig 6: Locating EGR Solenoid Harness Connector B-31

G00129224

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Locating Electronic Control Units

G00023288

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Locating Engine Control Module/Powertrain Control Module Harness Connectors

G00129208

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

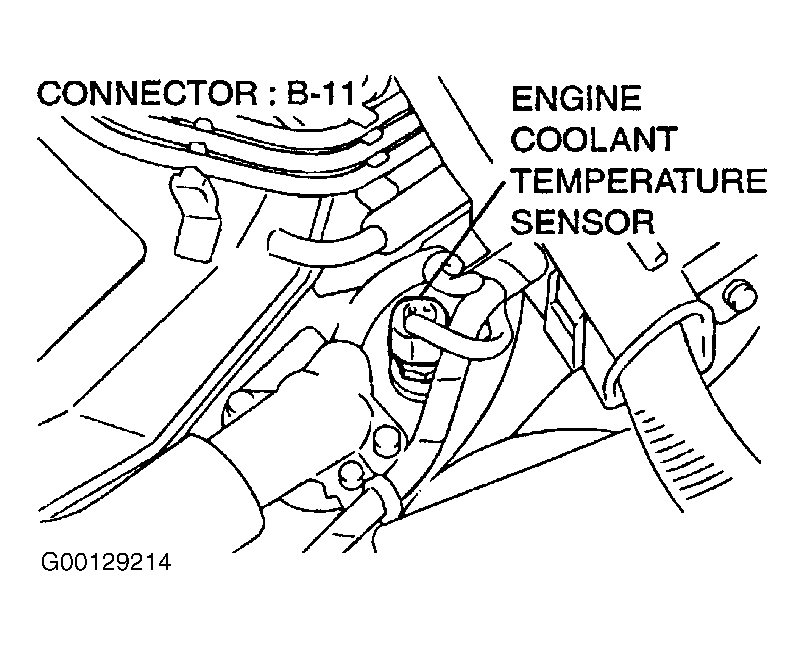

Fig 9: Locating Engine Coolant Temperature Sensor Harness Connector B-11

G00129214

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

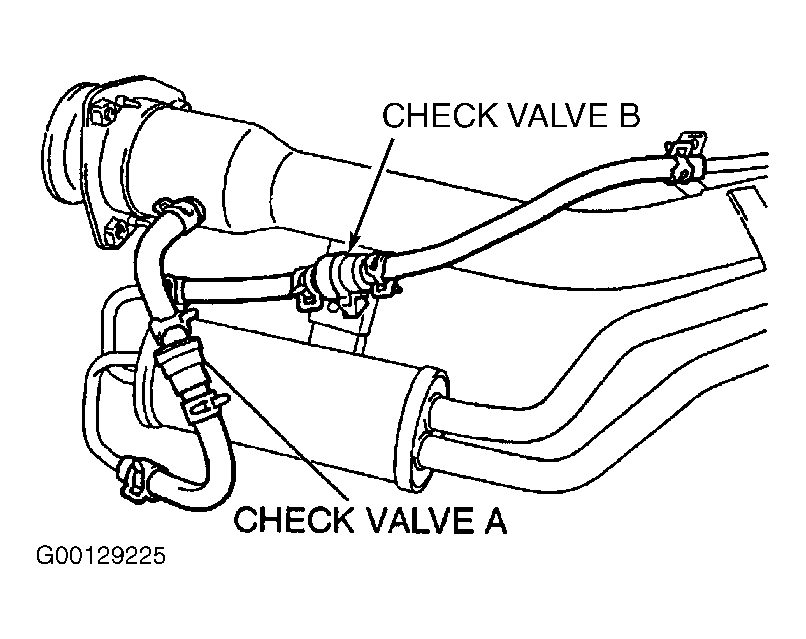

Fig 10: Locating EVAP System Check Valves

G00129225

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Locating EVAP Ventilation Solenoid

G00023251

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Locating Fuel Tank Differential Pressure Sensor Harness Connector D-18

G00129227

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 13: Locating Fuel Temperature Sensor Harness Connector D-17

G00129218

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 14: Locating Fuse Block Connector C-111

G00129230

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 15: Locating Fuse Block Connector C-112

G00129231

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 16: Locating Generator Harness Connector B-45

G00176125

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 17: Locating Hose "A"

G00023264

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 18: Locating Hoses "B" & "C", & EVAP Purge Solenoid

G00023248

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 19: Locating Hoses "D" & "E"

G00023252

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 20: Locating Hoses "F"-"H", & EVAP Canister

G00023224

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 21: Locating Hose "G" & EVAP Ventilation Solenoid

G00023295

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 22: Locating Hose "I"

G00023299

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 23: Locating Hose "I"

G00023228

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 24: Locating Hose "J"

G00023236

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 25: Locating Hoses "J", "K", "Q" & "R", EVAP Ventilation Solenoid & Vent Valve Module

G00023256

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 26: Locating Hose "K"

G00023240

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 27: Locating Hoses "L"-"O"

G00023232

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 28: Locating Hose "P" & Leveling Valve

G00023244

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

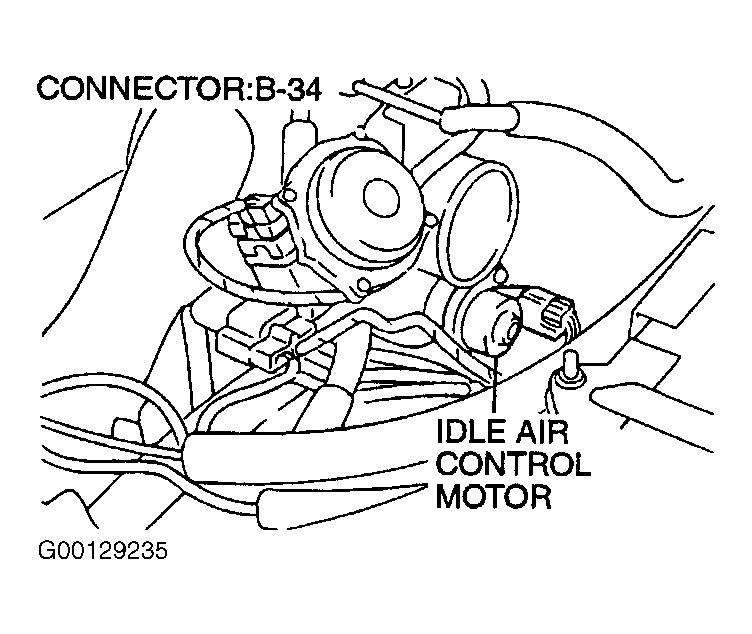

Fig 29: Locating Idle Air Control Motor

G00129235

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 30: Locating Ignition Switch Harness Connector C-87

G00129233

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

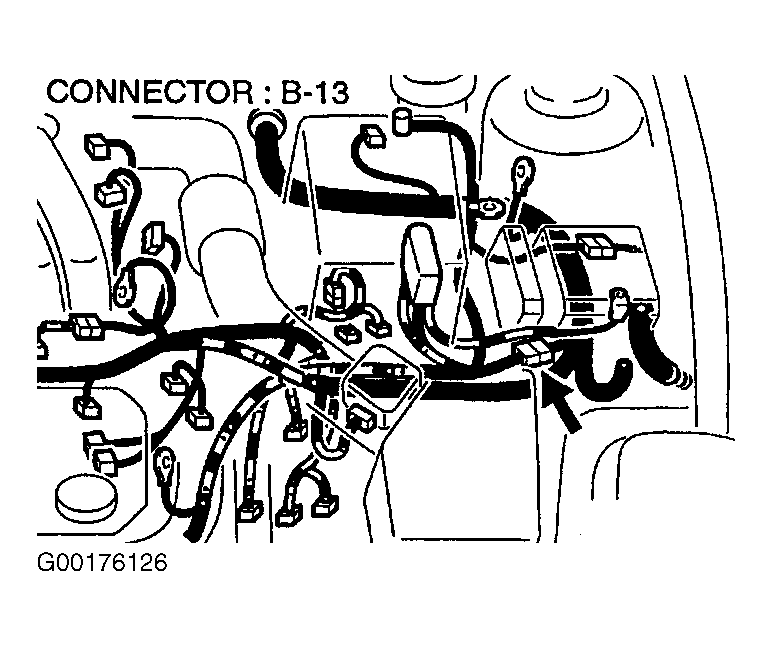

Fig 31: Locating Intermediate Connector B-13

G00176126

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

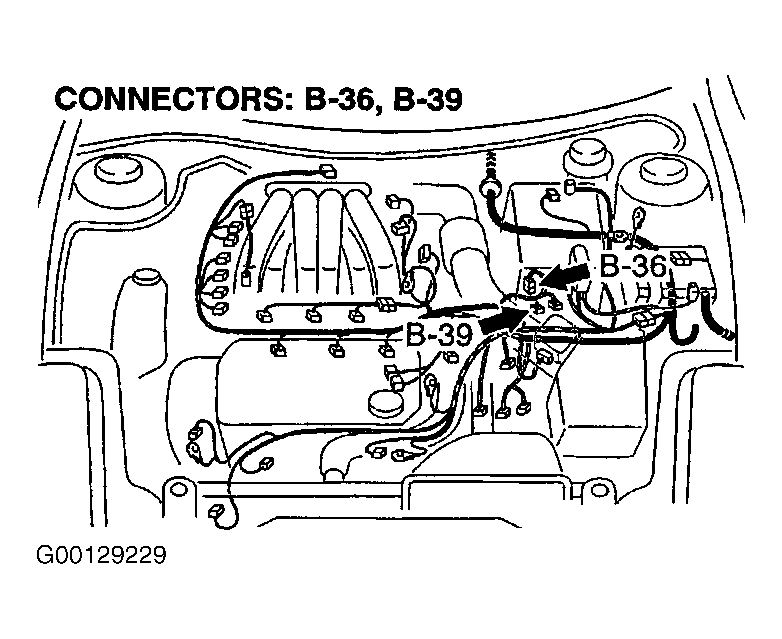

Fig 32: Locating Intermediate Connector B-36 & Vehicle Speed Sensor Harness Connector B-39

G00129229

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

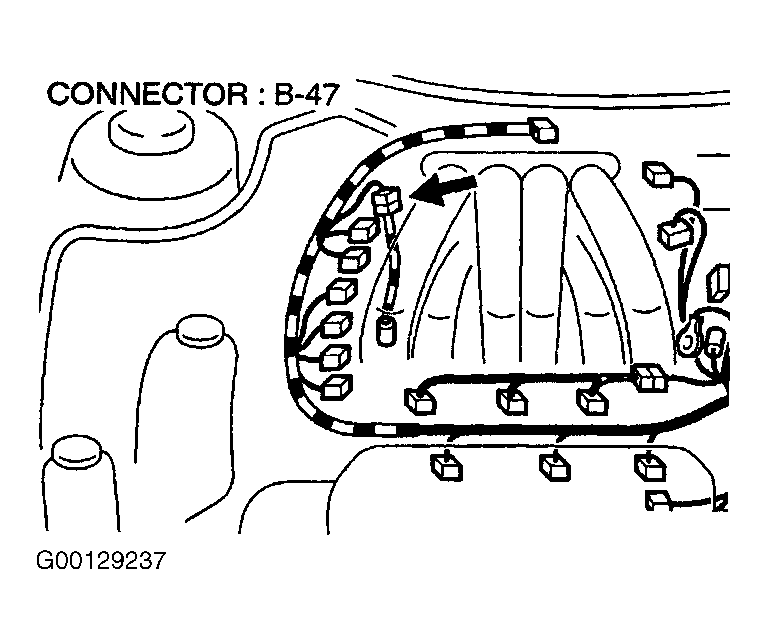

Fig 33: Locating Intermediate Connector B-47

G00129237

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

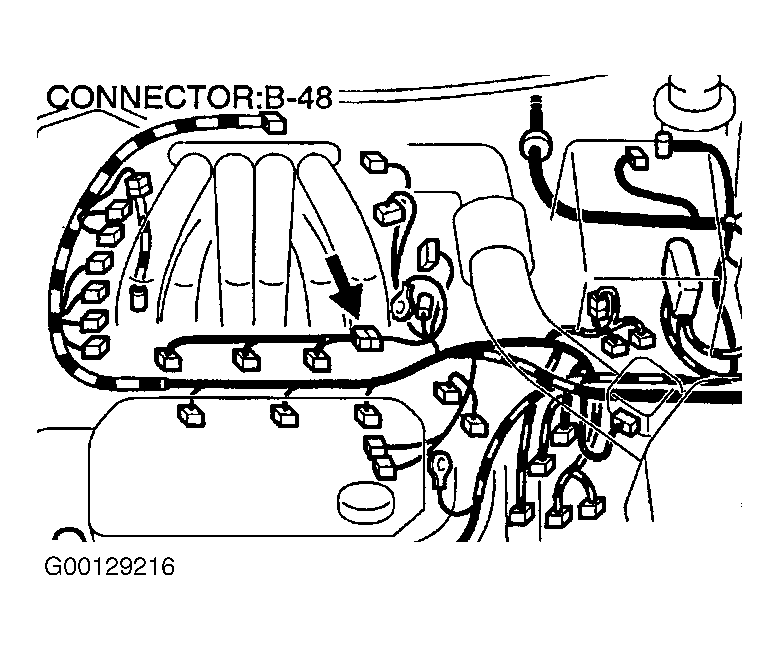

Fig 34: Locating Intermediate Connector B-48

G00129216

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 35: Locating Intermediate Connector C-07

G00176129

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

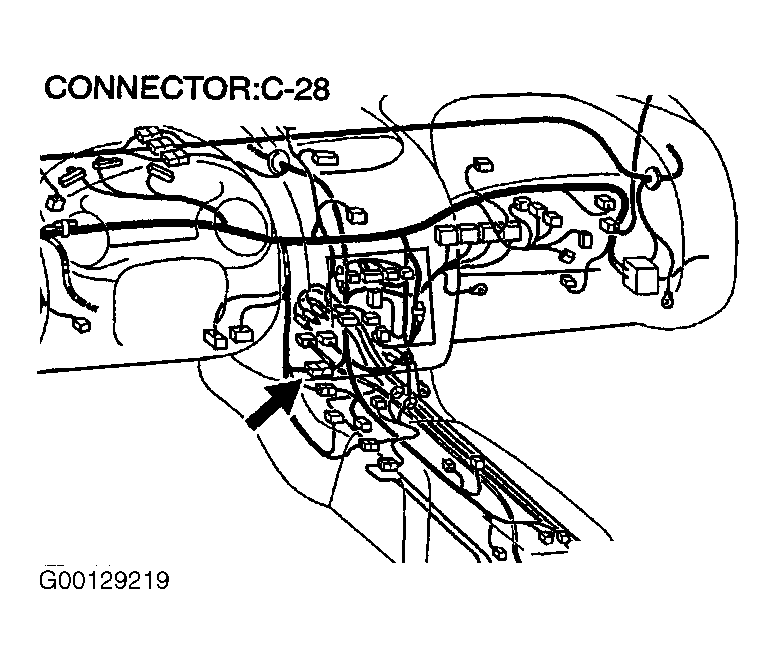

Fig 36: Locating Intermediate Connector C-28

G00129219

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

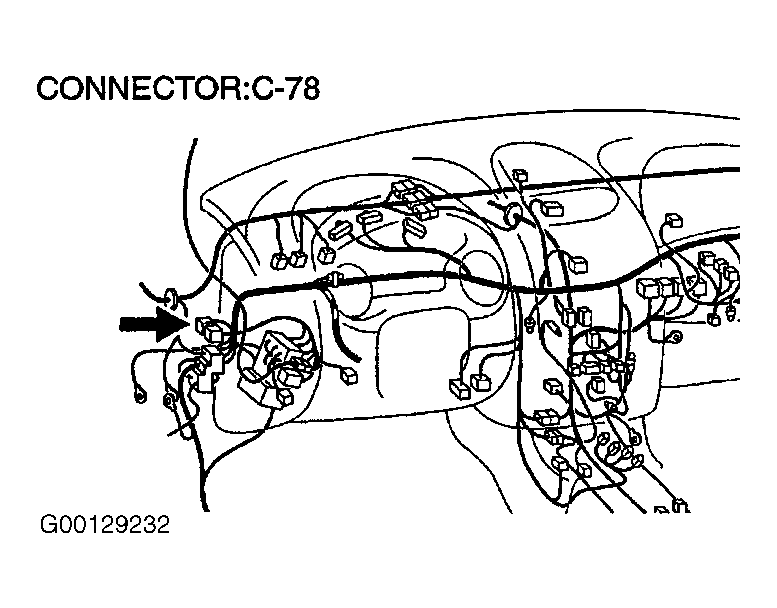

Fig 37: Locating Intermediate Connector C-78

G00129232

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 38: Locating Intermediate Connector C-89

G00176127

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 39: Locating Intermediate Connector C-90

G00129220

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 40: Locating Intermediate Connector D-16

G00129226

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

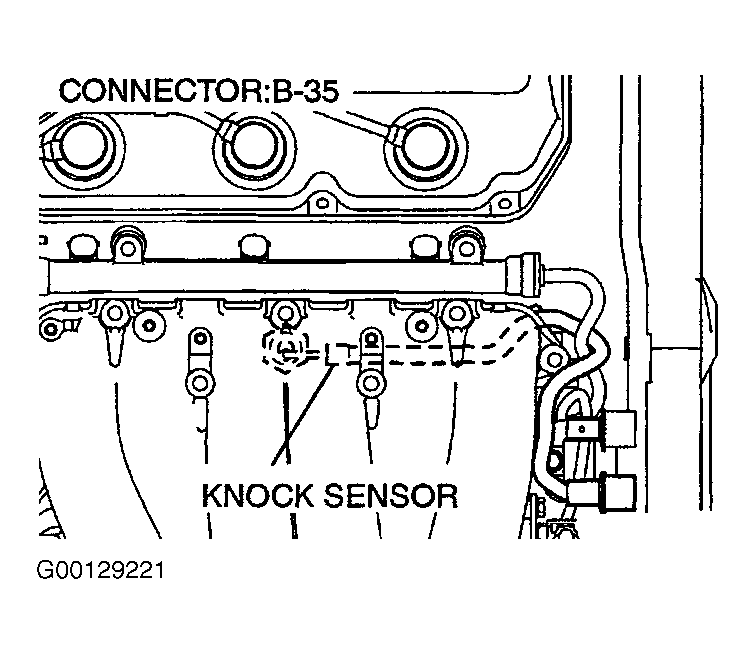

Fig 41: Locating Knock Sensor

G00129221

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

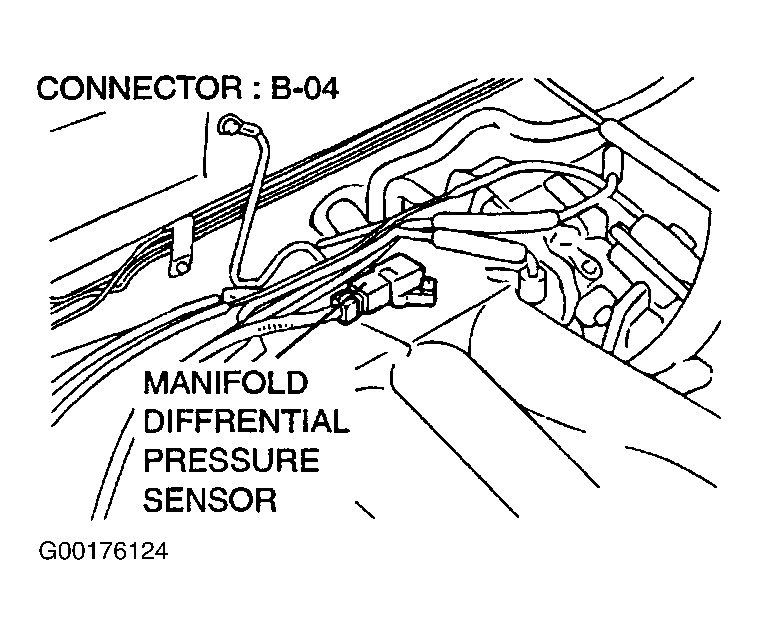

Fig 42: Locating Manifold Differential Pressure Sensor

G00176124

Courtesy of MITSUBISHI FUSO TRUCKS OF AMERICA, INC.

Fig 43: Locating MFI Relay

G00074973

Courtesy of CHRYSLER CORP.

Fig 44: Locating Power Steering Pressure Switch

G00129236

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

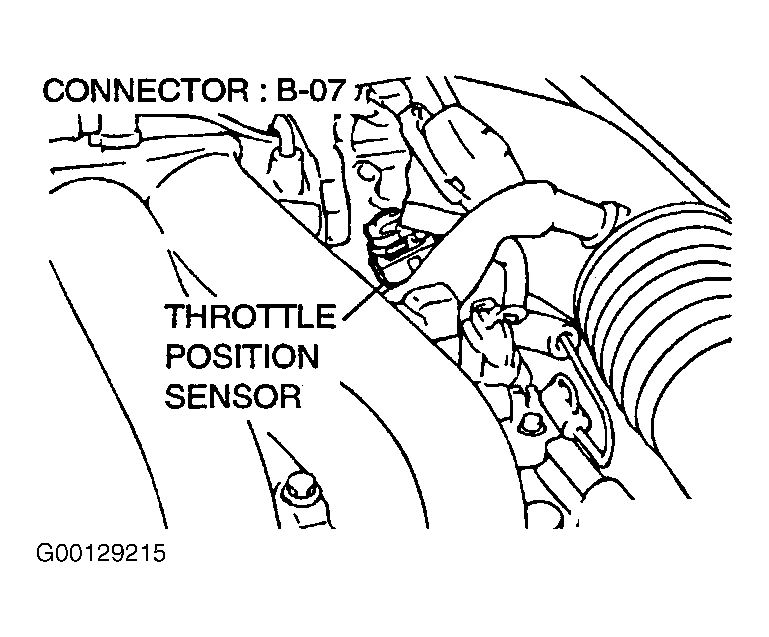

Fig 45: Locating Throttle Position Sensor

G00129215

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 46: Locating Volume Airflow Sensor

G00074974

Courtesy of CHRYSLER CORP.
