Home >> Mitsubishi >> 2002 >> Eclipse Spyder GS, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul >> Select Lever >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

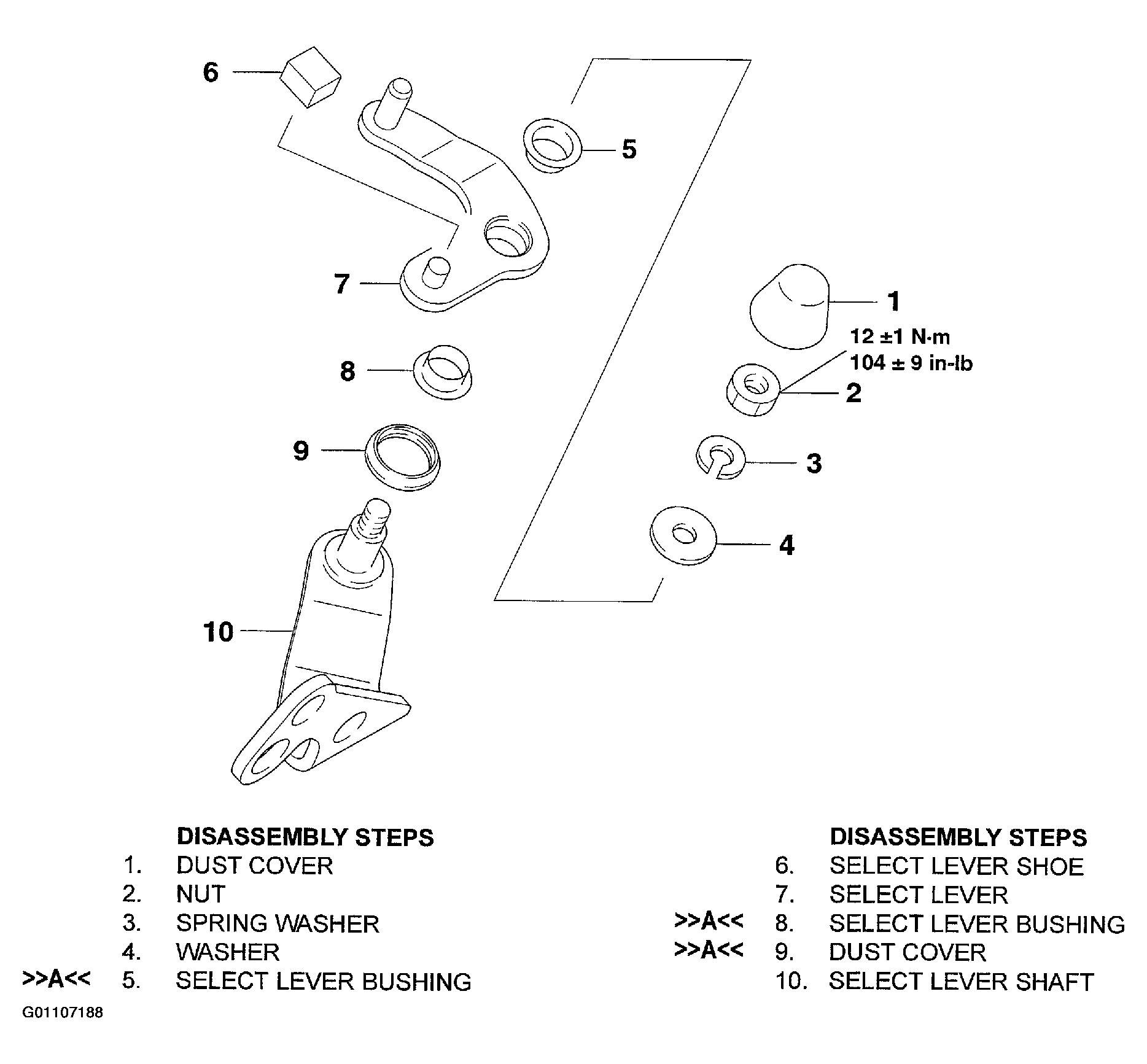

Fig 1: Select Lever Disassembly & Assembly

G01107188

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
