Fastener Tightening Specifications

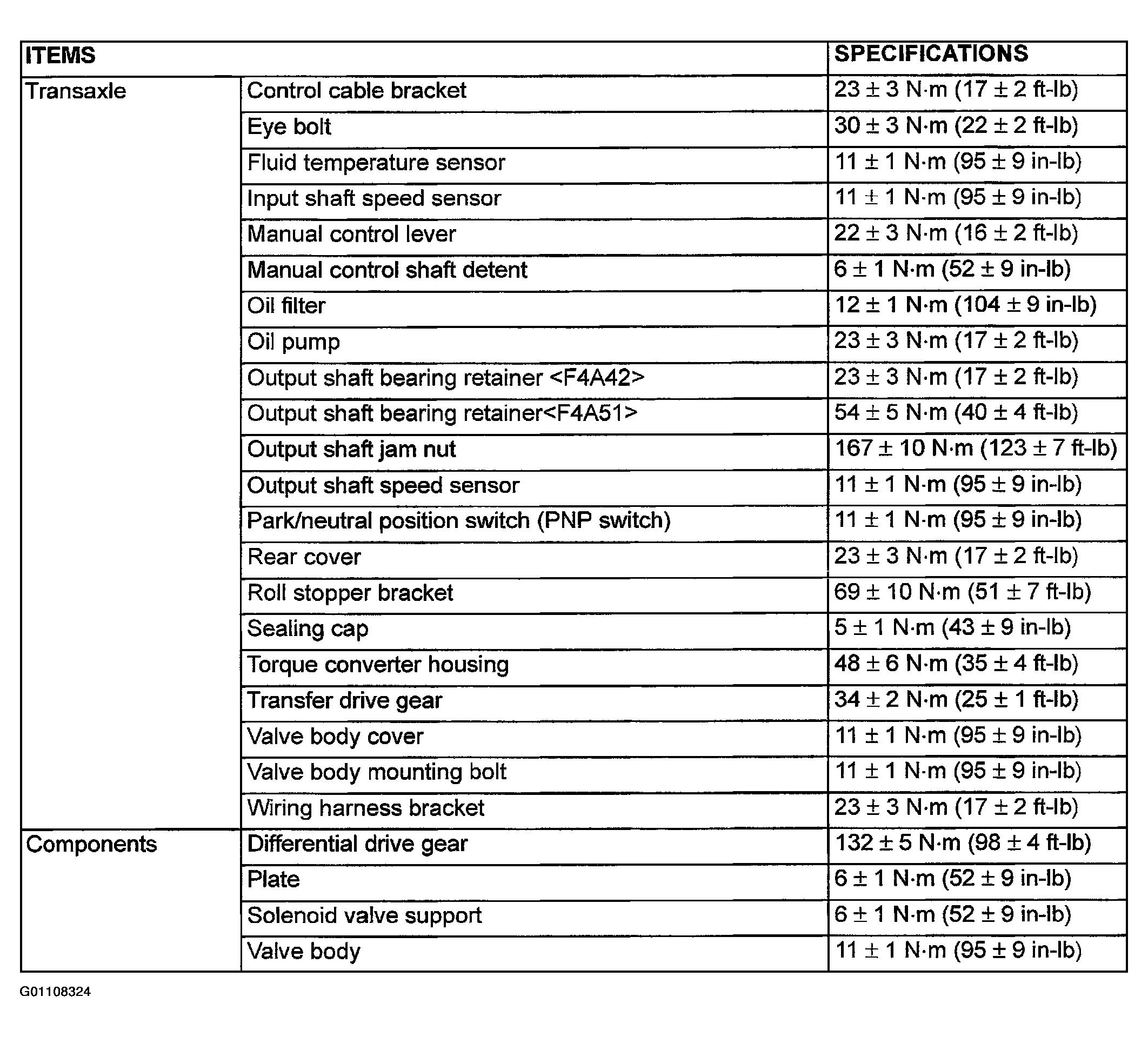

Fig 1: Fastener Tightening Torque Specifications Table

G01108324

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
