<< A >> Lock Pin Removal

Drive the lock pin out of position from the direction shown.

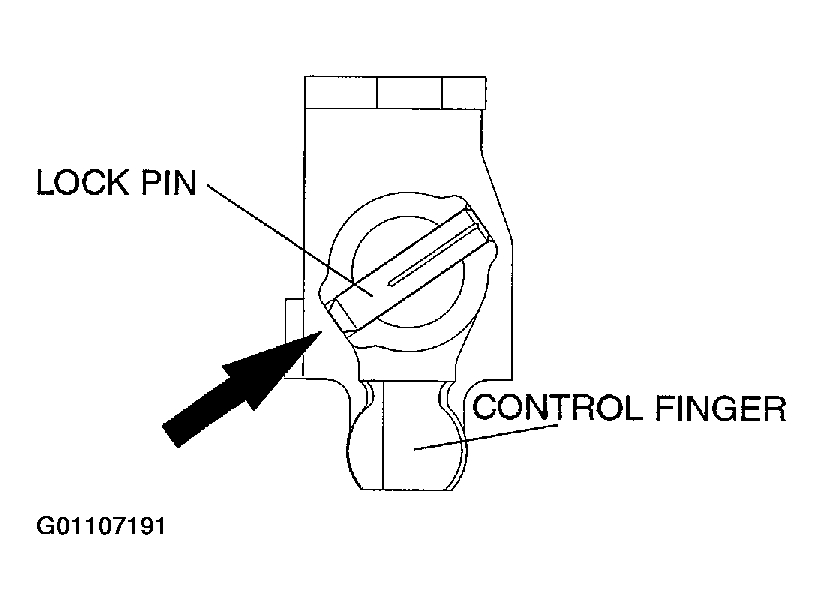

Fig 1: Removing Lock Pin

G01107191

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
