Home >> Mitsubishi >> 2002 >> Eclipse RS, Standard >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering Hoses >> Removal And Installation >> Notes

Removal And Installation: Notes

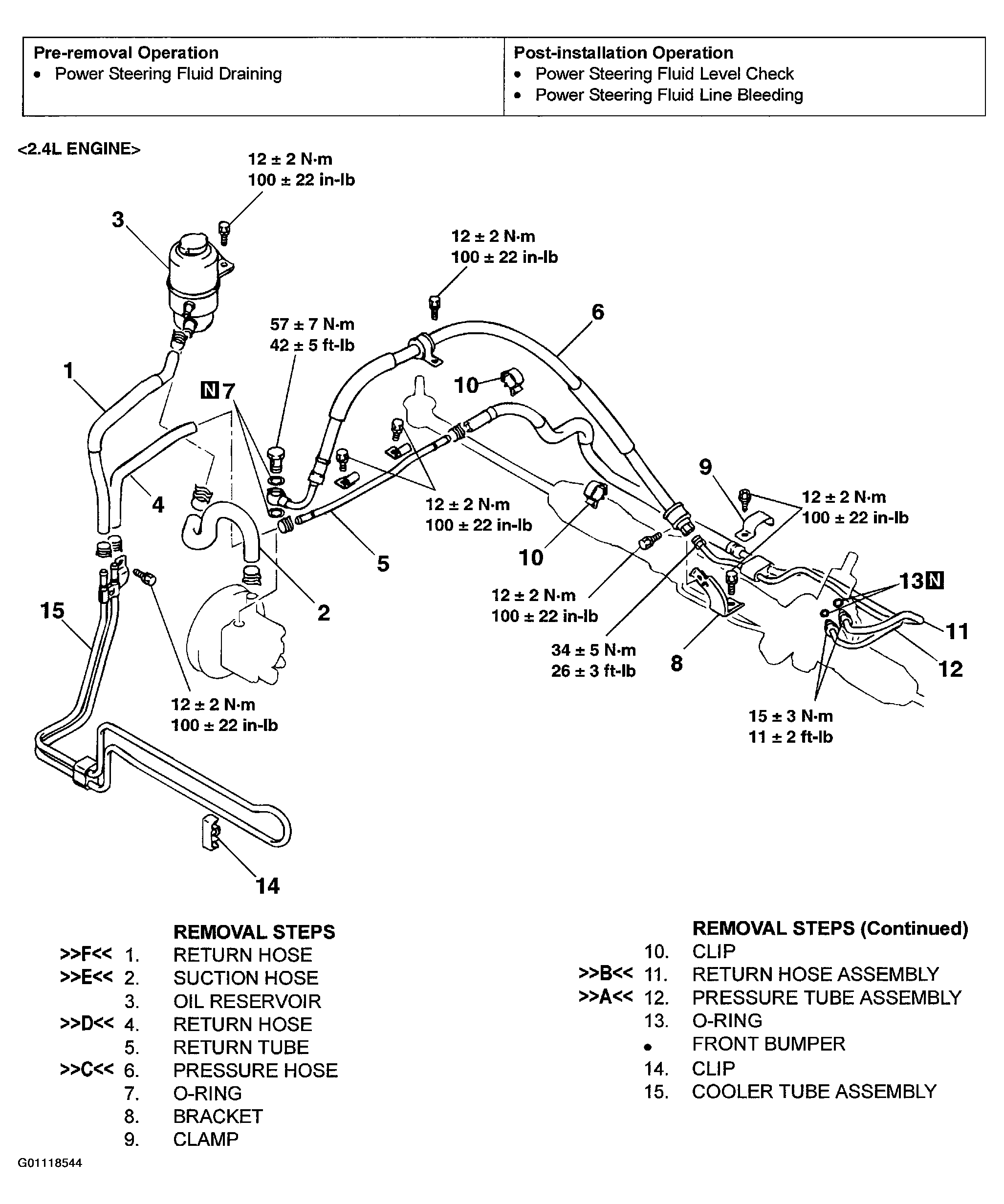

Fig 1: Removing & Installing Power Steering Hoses (1 Of 2)
G01118544Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

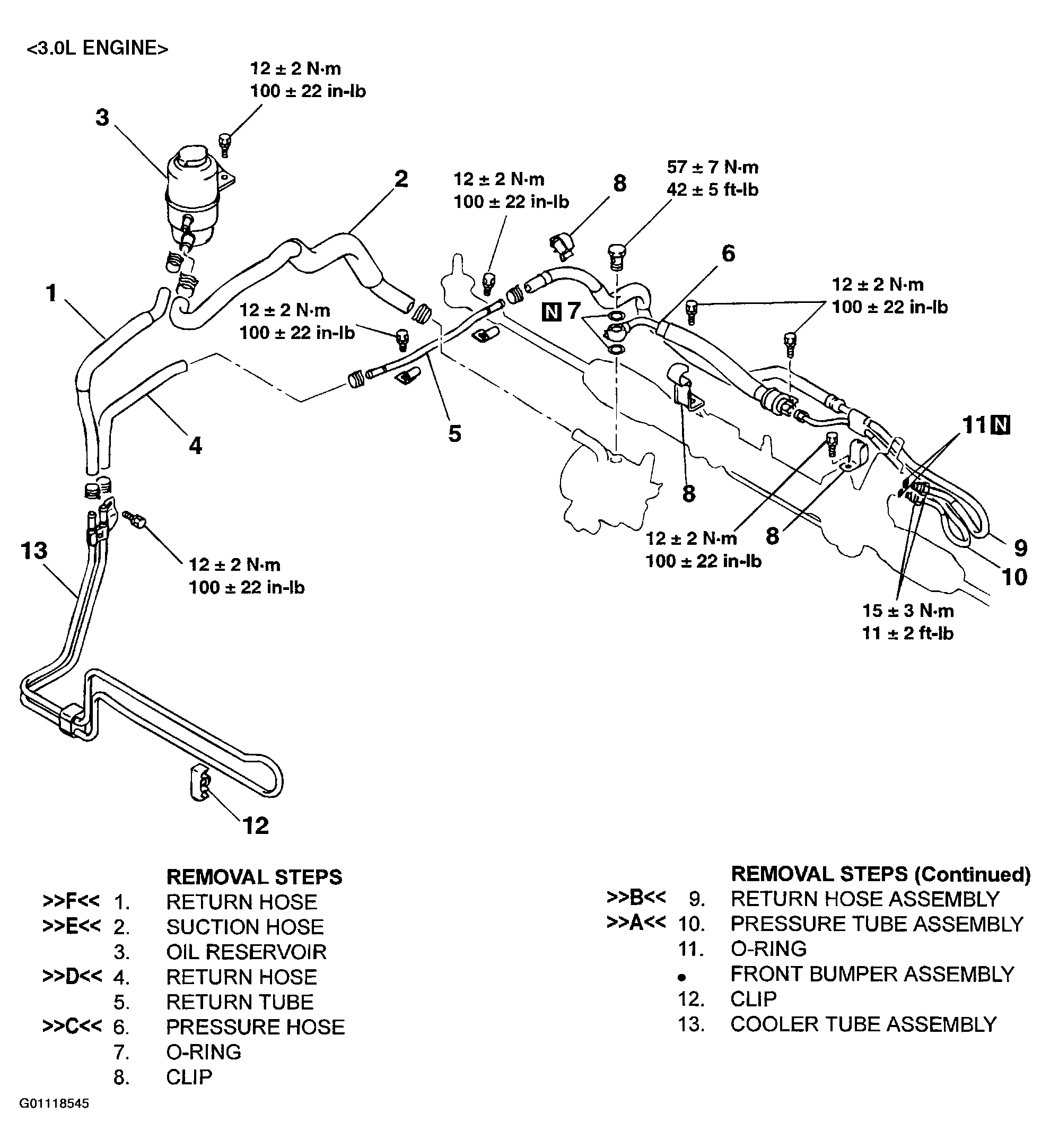

Fig 2: Removing & Installing Power Steering Hoses (2 Of 2)
G01118545Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
