Disassembly & Reassembly: Notes

For disassembly and reassembly of axle shafts, see Fig 1 .

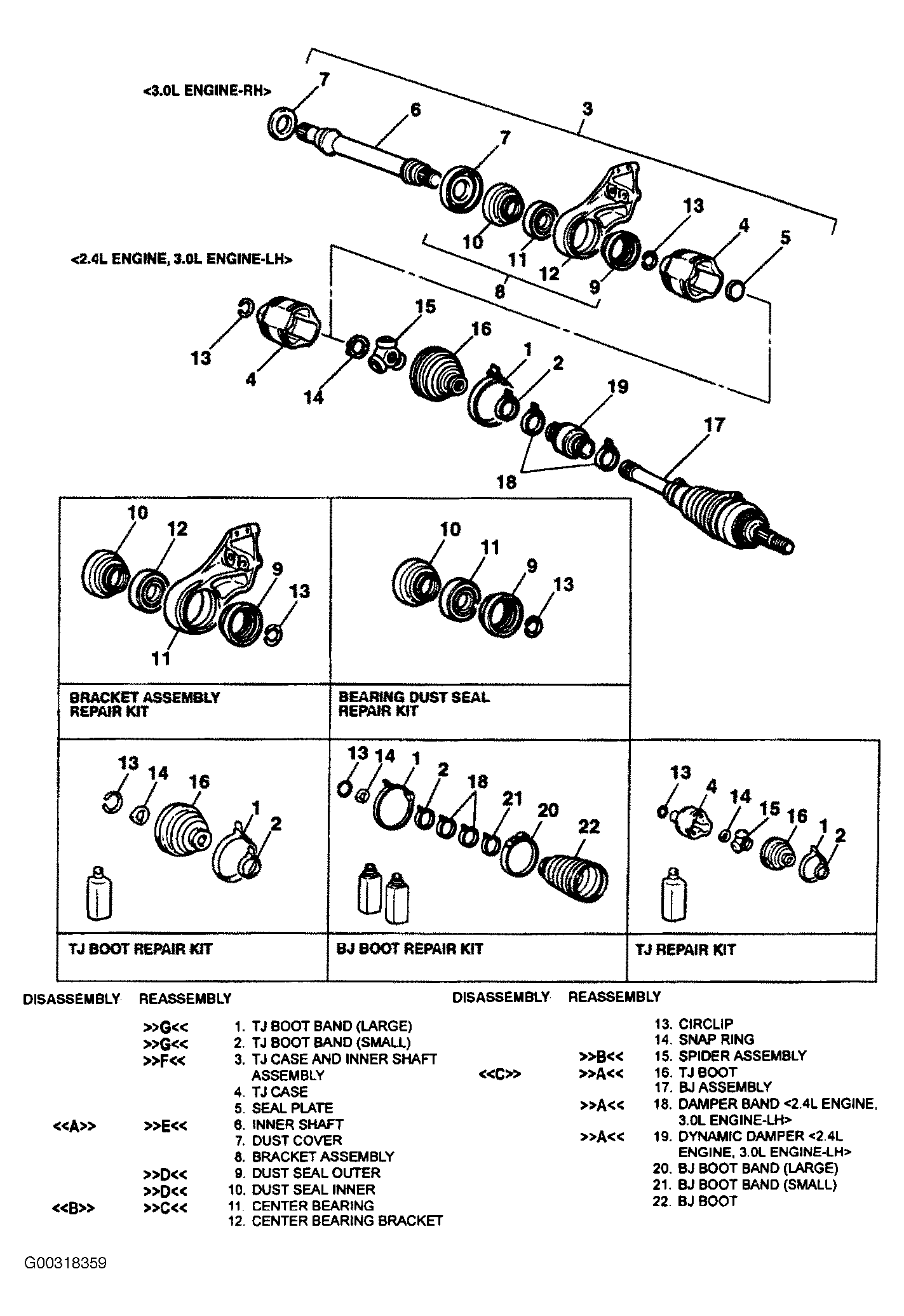

Fig 1: Exploded View Of Axle Shaft

G00318359

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
