Installation Service Point

RIVET INSTALLATION
1. Insert the rivet [4.8 mm (0.19 inch)] into the top cover side strap and control link.

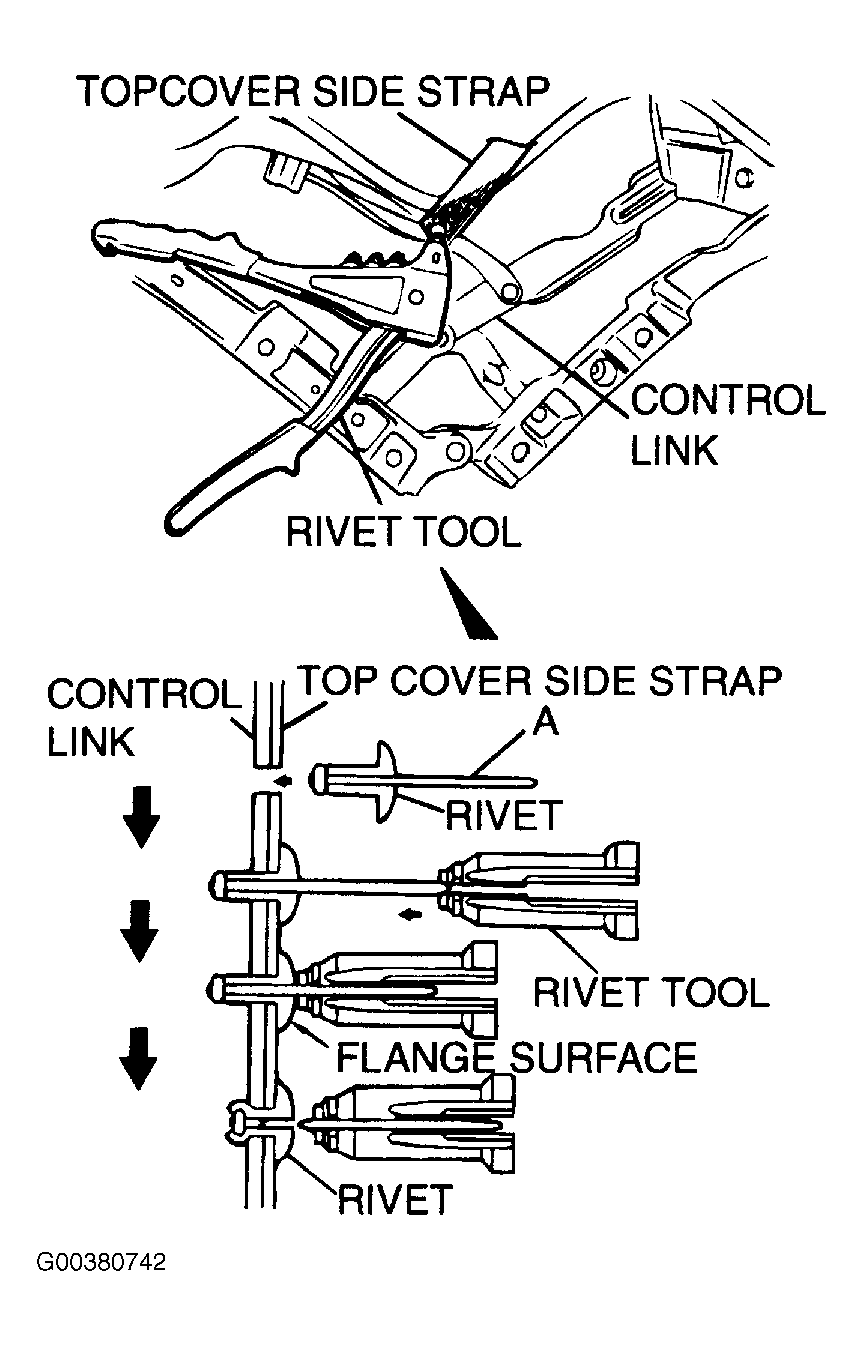

  Fig 1: Installing Rivet
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Insert "A" of the rivet into the rivet tool.
3. Pressing the flange surface of the rivet, move the handle of the rivet tool.
4. The thinnest point of "A" is cut and the rivet is held in the position.
