A/T Control Component Layout

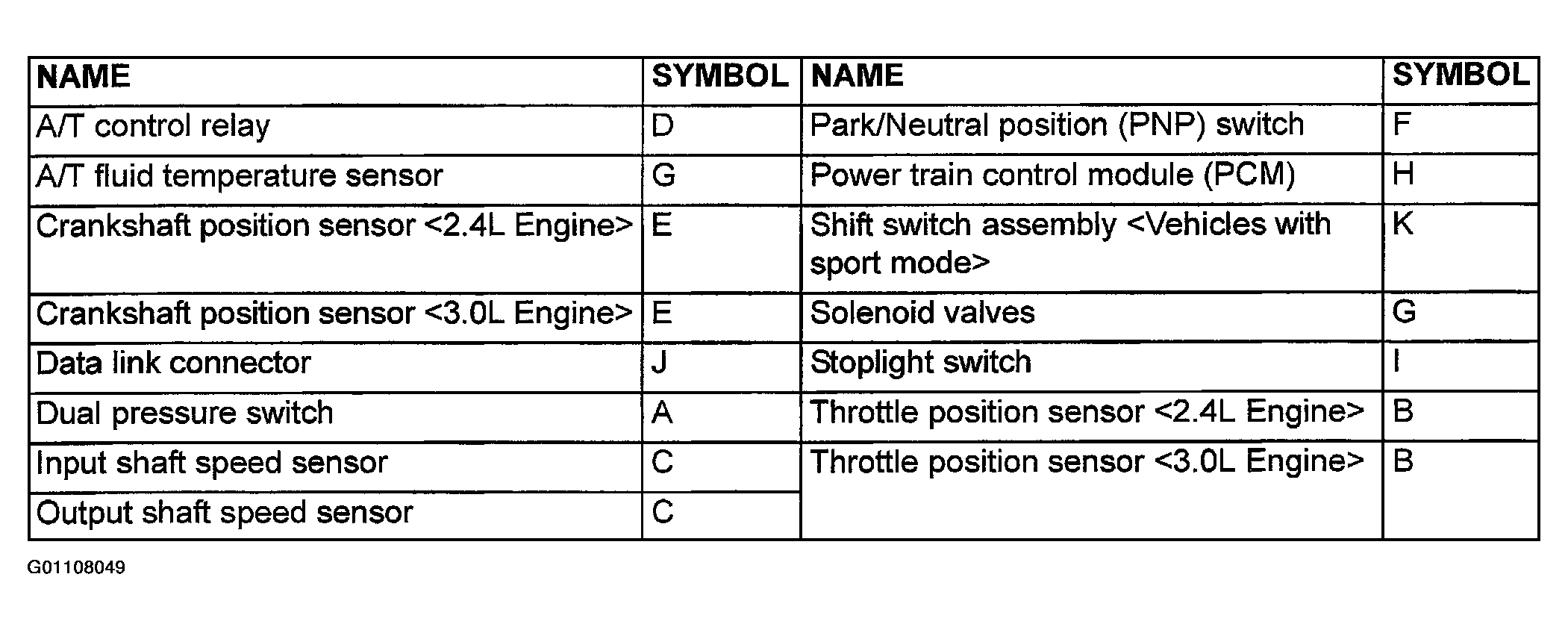

Fig 1: A/T Control Component Layout Legend
G01108049Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

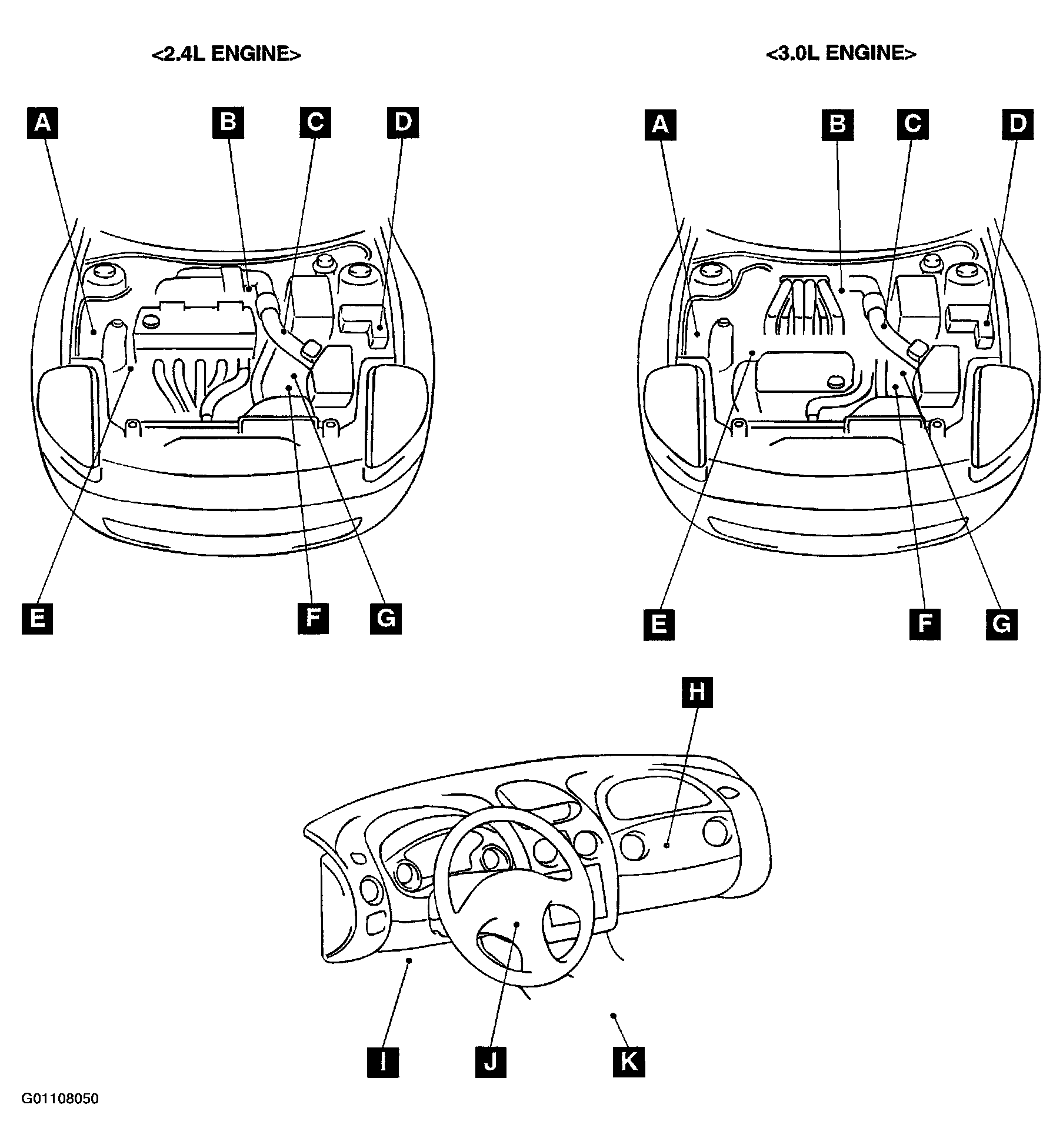

Fig 2: A/T Control Component Layout
G01108050Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

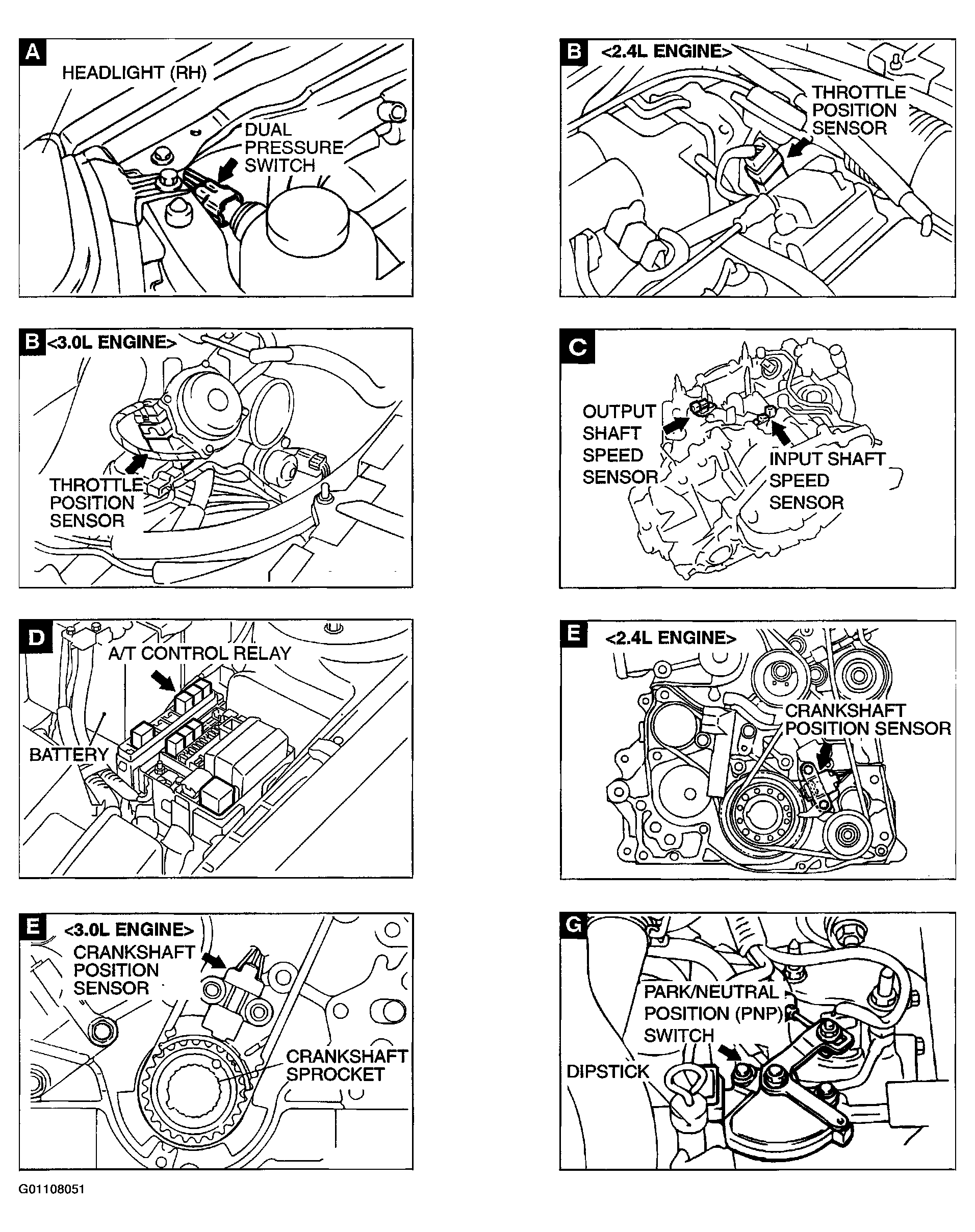

Fig 3: A/T Control Component Locations (1 Of 2)
G01108051Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

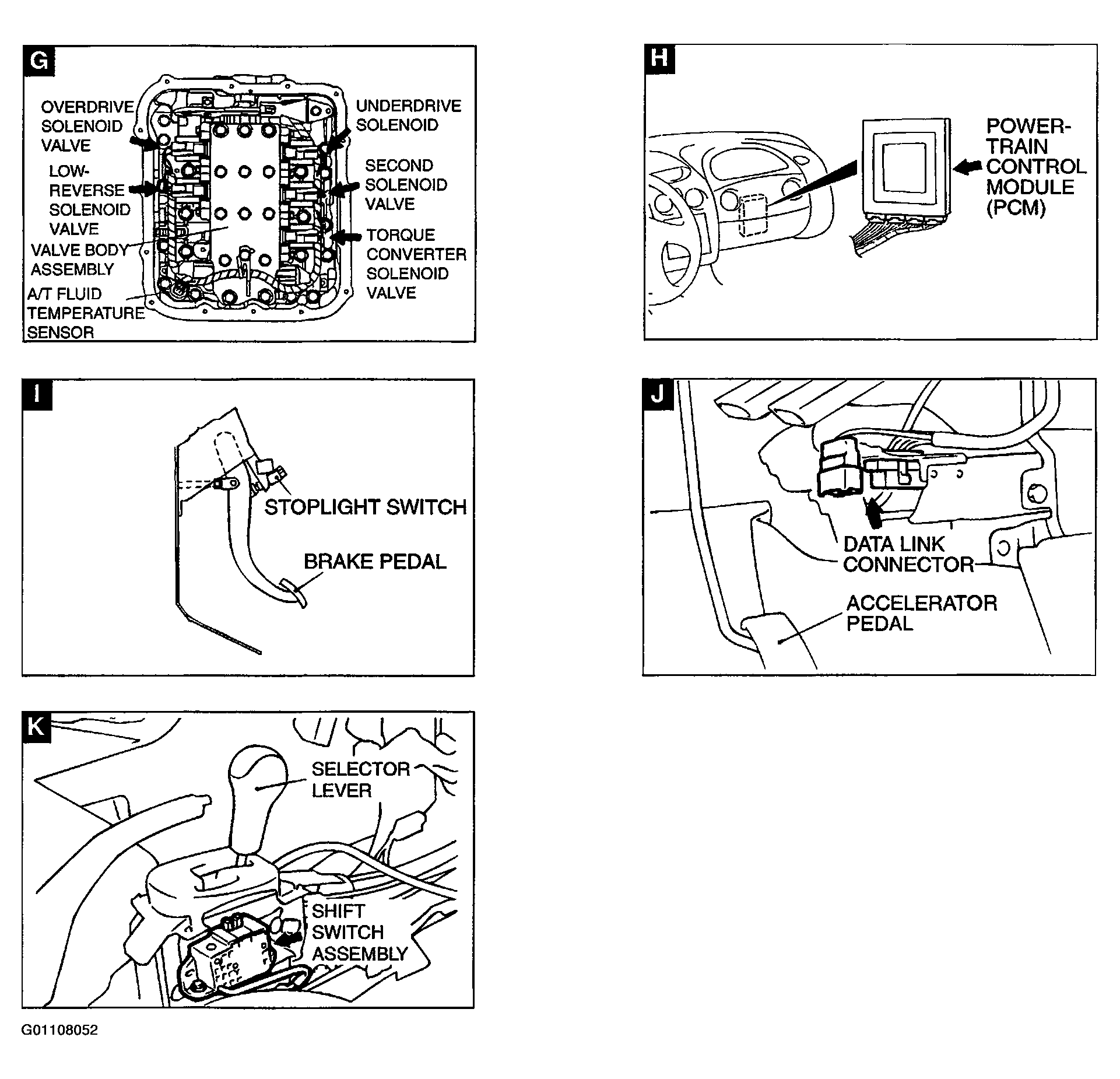

Fig 4: A/T Control Component Locations (2 Of 2)
G01108052Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
