Removal And Installation: Notes
WARNING: This page is about a different car, the 2002 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
For vehicles with ABS, be careful when handling the pole piece at the tip of the speed sensor so as not to damage it by striking against other parts.

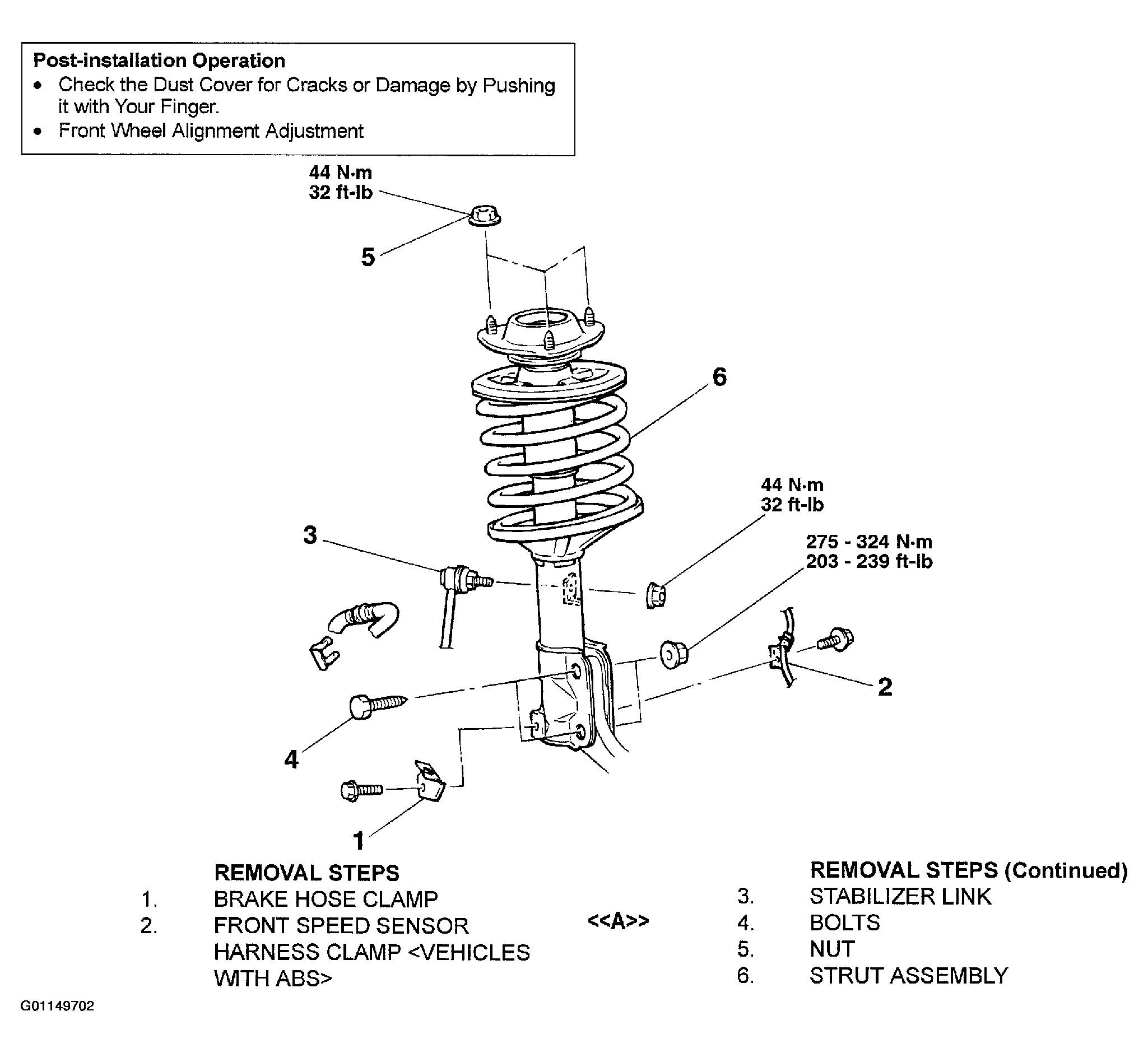

For strut assembly removal procedures, follow numbered steps in illustration. See Fig 1. For strut assembly installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing strut assembly. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the removal procedure. See REMOVAL SERVICE POINT .
