Disassembly And Assembly: Notes
WARNING: This page is about a different car, the 2002 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

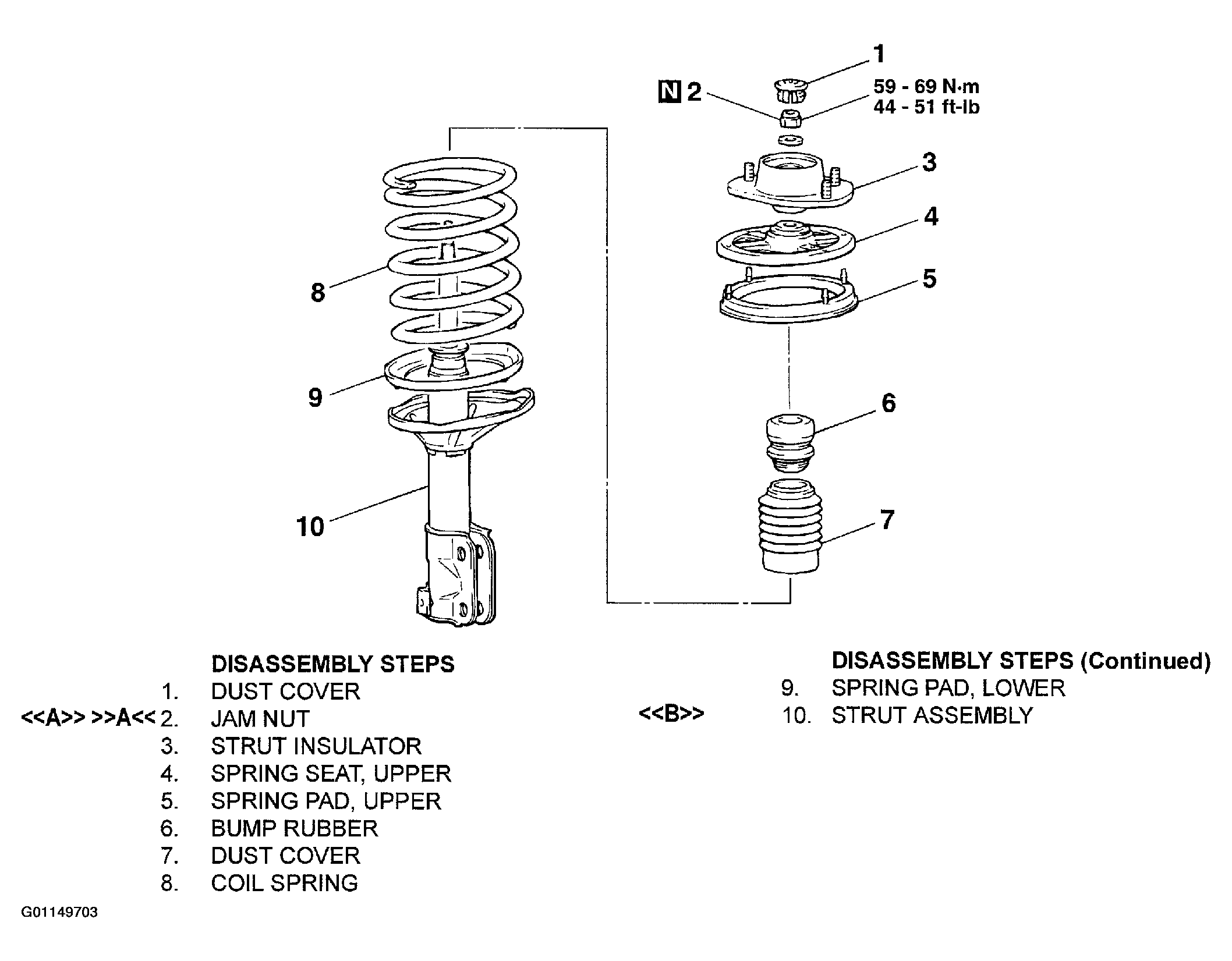

For strut assembly disassembly procedures, follow numbered steps in illustration. See Fig 1. For strut assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling strut assembly . Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the disassembly procedure. See DISASSEMBLY SERVICE POINTS . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See ASSEMBLY SERVICE POINT .
