Removal And Installation: Notes
WARNING: This page is about a different car, the 2002 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

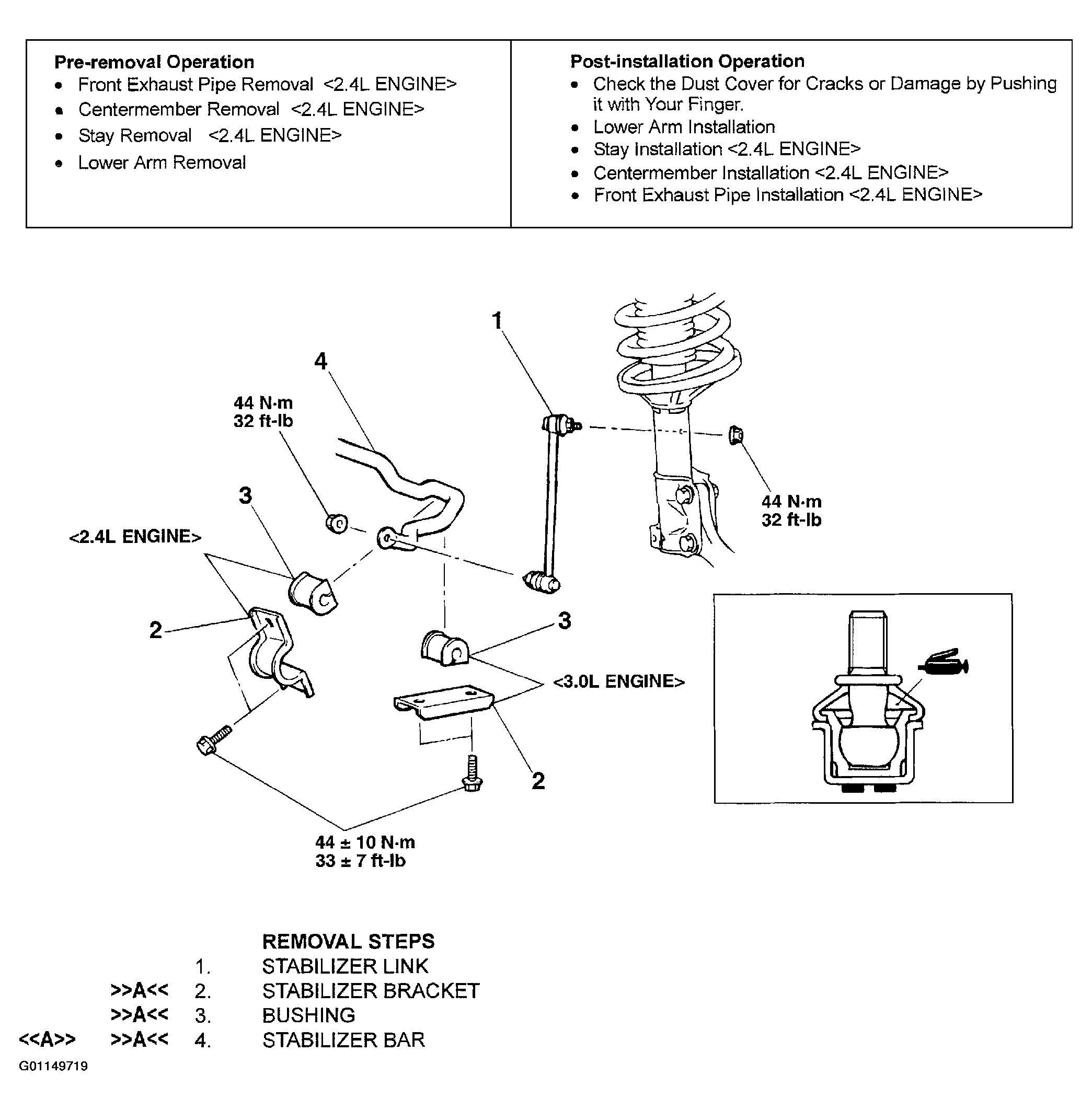

For stabilizer bar removal procedures, follow numbered steps in illustration. See Fig 1. For stabilizer bar installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing stabilizer bar. Letters with arrows pointing away refer to service points to be observes while performing that step of the removal procedure. See REMOVAL SERVICE POINT . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See INSTALLATION SERVICE POINT .
