Removal And Installation: Notes
WARNING: This page is about a different car, the 2002 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
*: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.

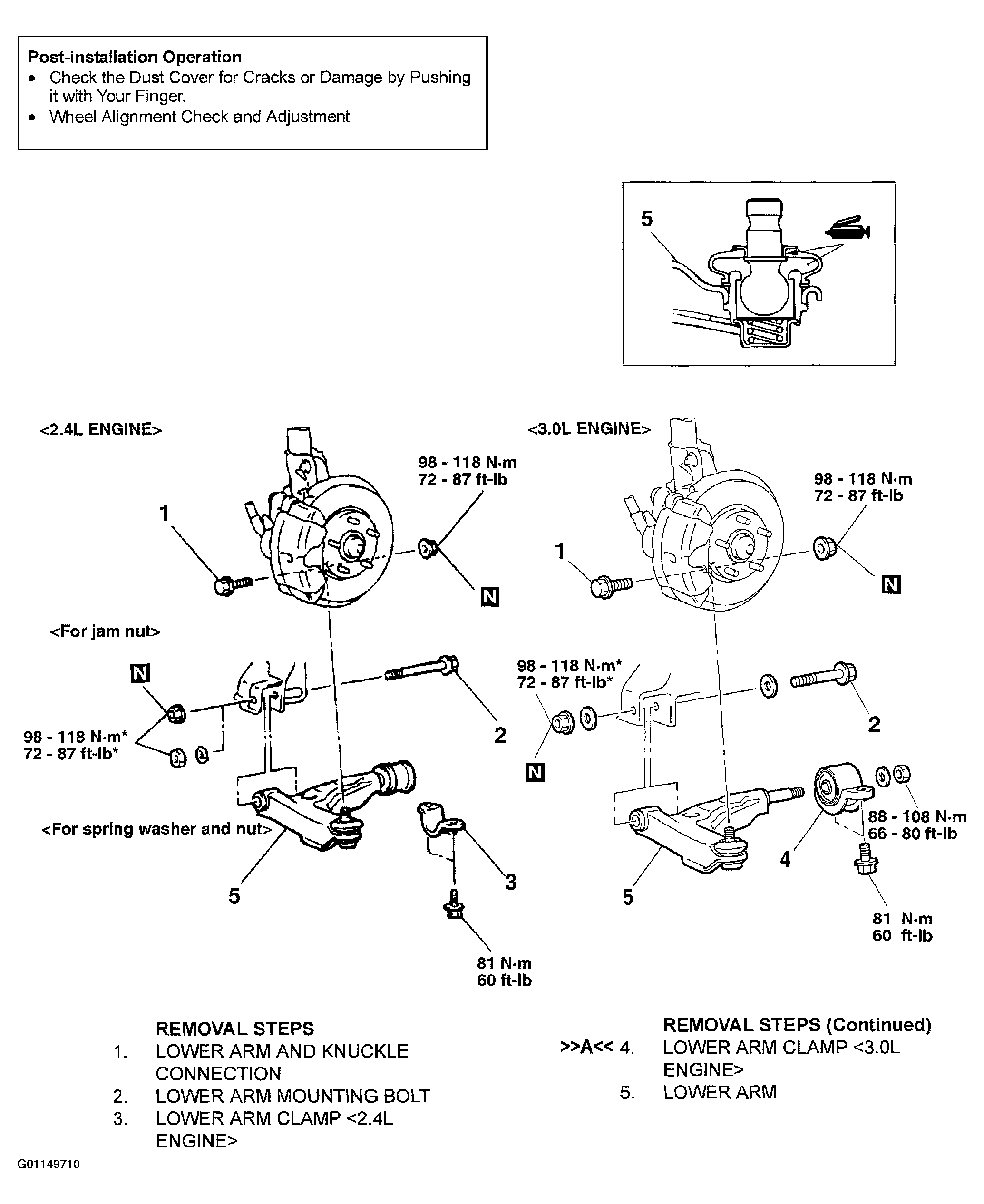

For lower arm removal procedures, follow numbered steps in illustration. See Fig 1. For lower arm installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing lower arm. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See INSTALLATION SERVICE POINT .
Required Special Tools:
- MB990799: Ball Joint Remover and Installer
- MB991006: Preload Socket
- MB991007: Bearing Installer
- MB991446: Bushing Remover and Installer Spacer
