Pin Voltage Tests

WARNING: This page is about a different car, the 2001 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For pin voltage test, see Figure and Fig 1 .

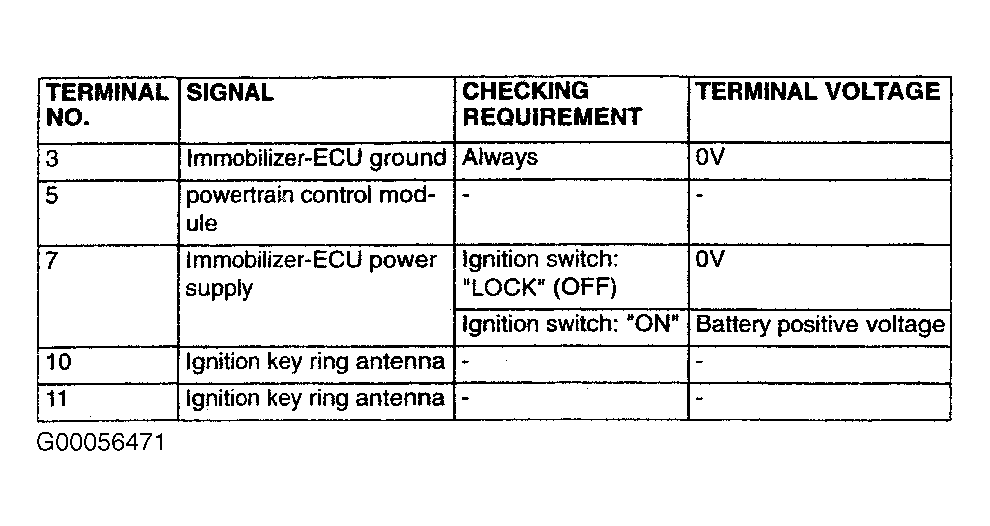

Fig 1: Immobilizer-ECU Pin Voltage Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
