Pin Voltage Tests
WARNING: This page is about a different car, the 2001 Mitsubishi Montero Sport. However, it is still accessible from the selected car via links, so may be relevant.

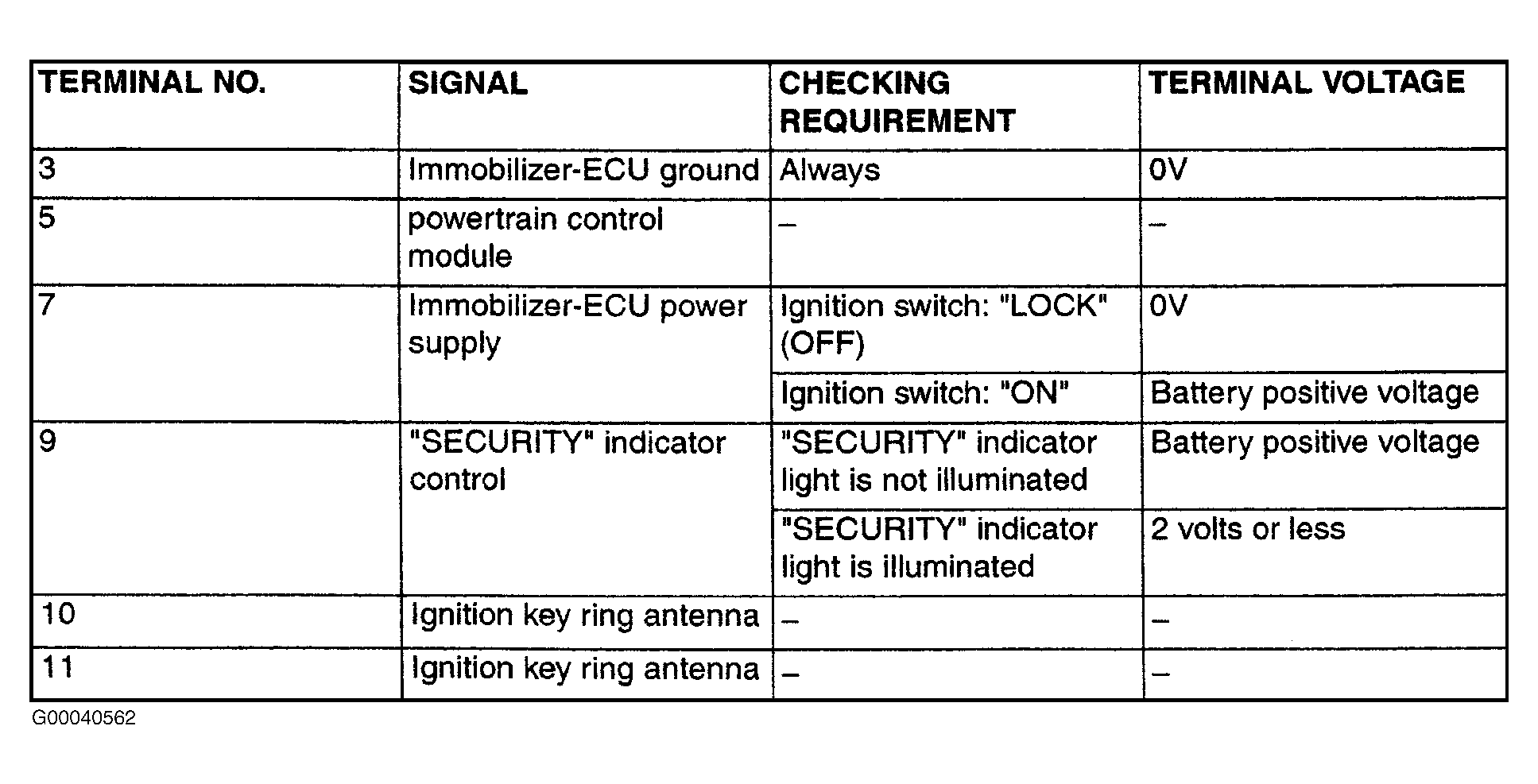

Measure voltage between ground and indicated immobilizer-ECU connector terminals by backprobing. See table. See Fig 1
and Fig 2
.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
