Fan Control Relay

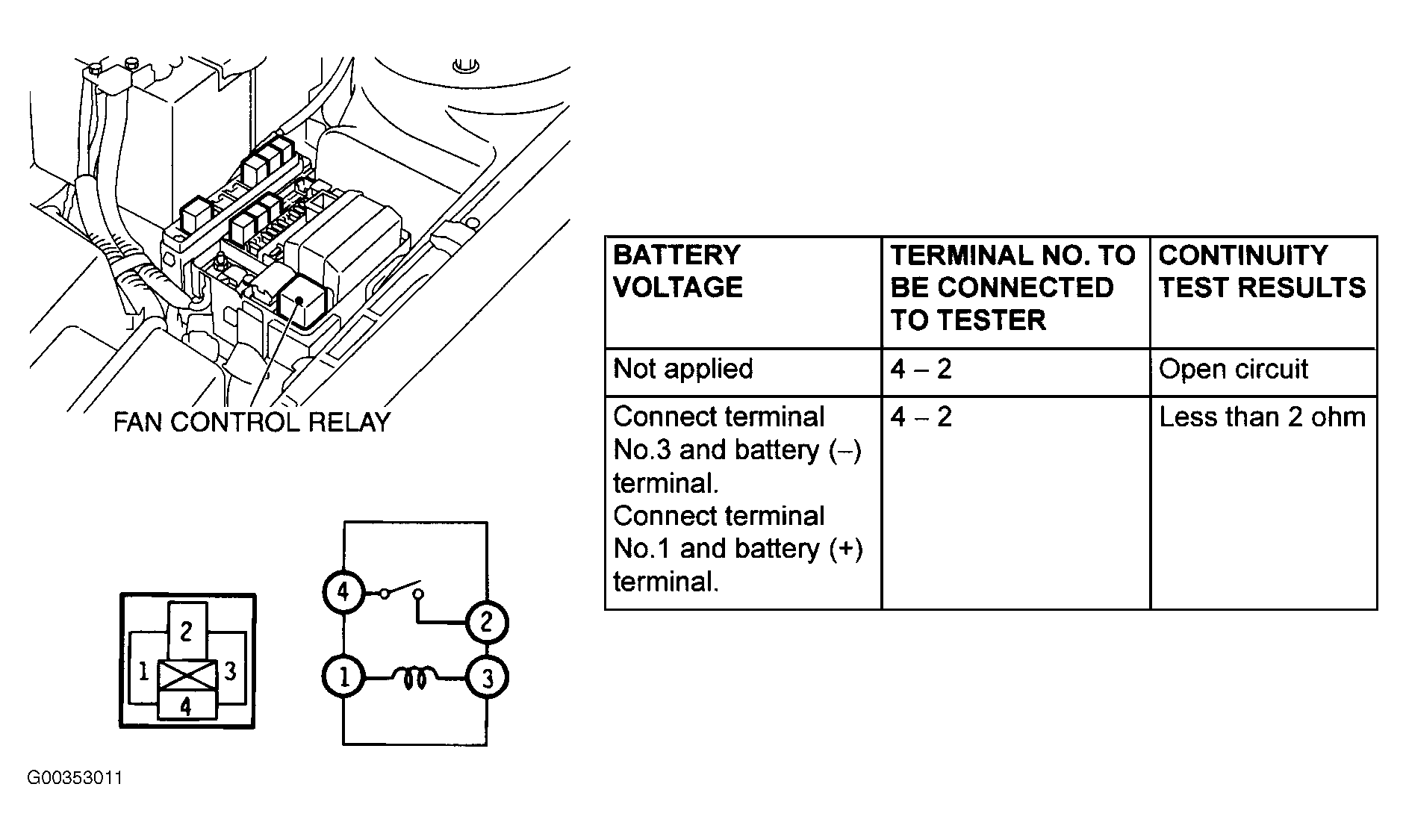

Fig 1: Testing Fan Control Relay

G00353011

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
