< Vehicles With Sport Mode >

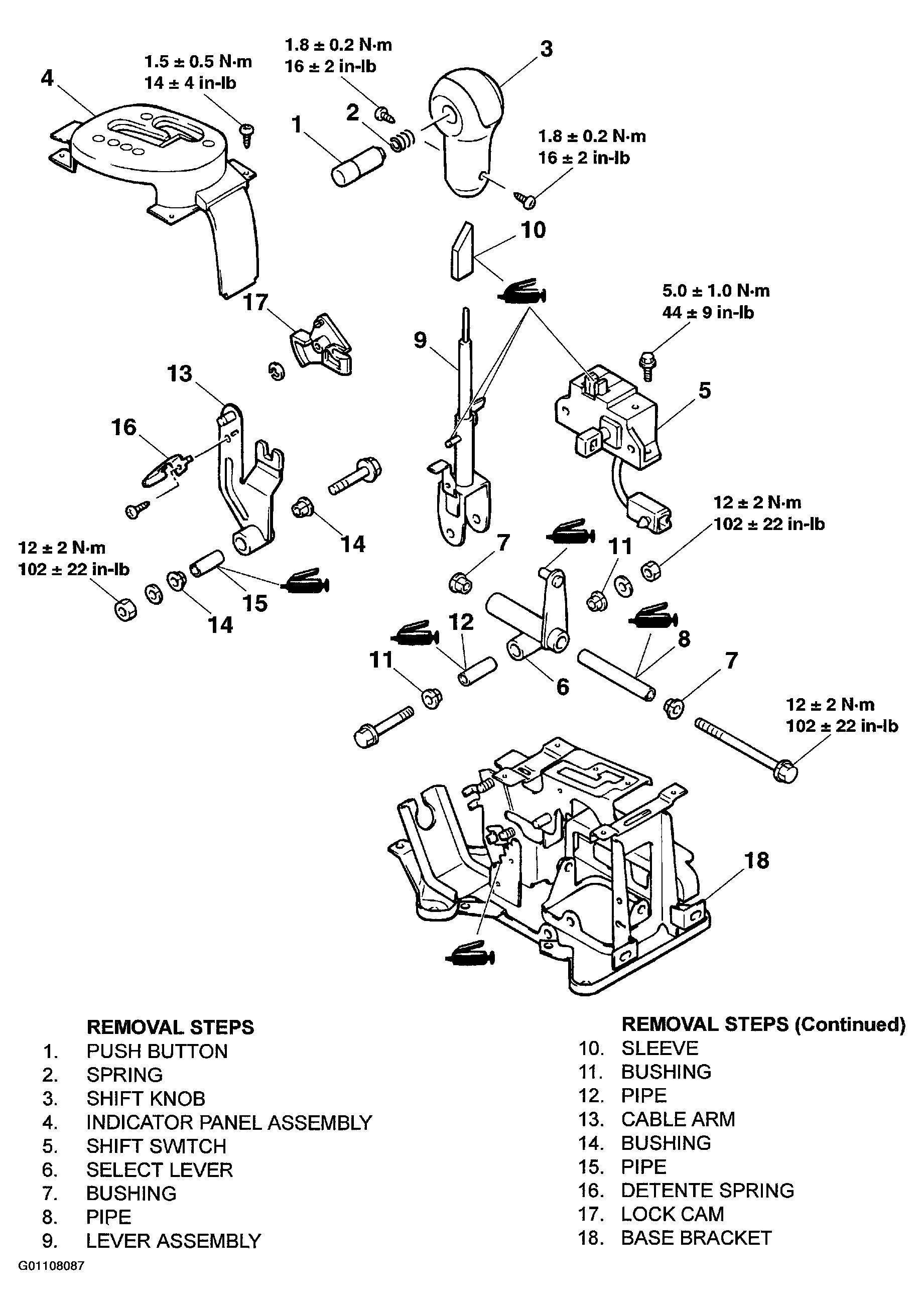

Fig 1: Selector Lever Disassembly & Assembly (Vehicles With Sport Mode)

G01108087

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
