Disassembly And Assembly: Notes

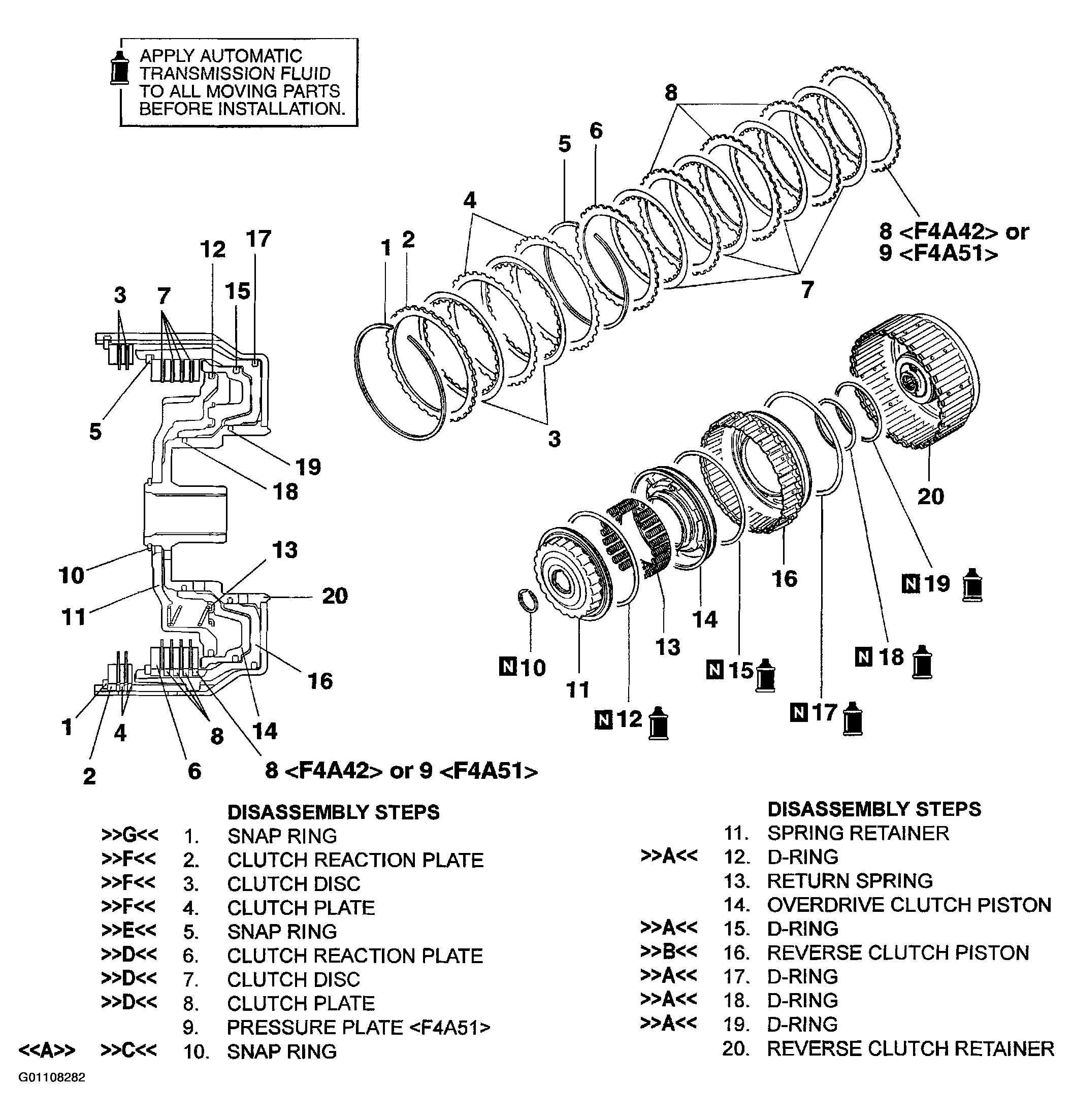

For reverse and overdrive clutch disassembly procedures, follow numbered steps in illustration. See Fig 1. For reverse and overdrive clutch assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling drive shaft. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the disassembly procedure. See DISASSEMBLY SERVICE POINT . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See ASSEMBLY SERVICE POINTS .
Required Special Tools:
- MB991628: Spring Compressor < F4A42 >
- MB991629: Spring Compressor < F4A51 >
- MB991789: Spring Compressor < F4A51 >
- MB991790: Spring Compressor < F4A42 >
- MD998924: Spring Compressor Retainer
- MD999590: Spring Compressor
