Mitsubishi
>>
2002
>>
Eclipse GS, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Overhaul
>>
General Description
>>
Hydraulic Circuit
Hydraulic Circuit

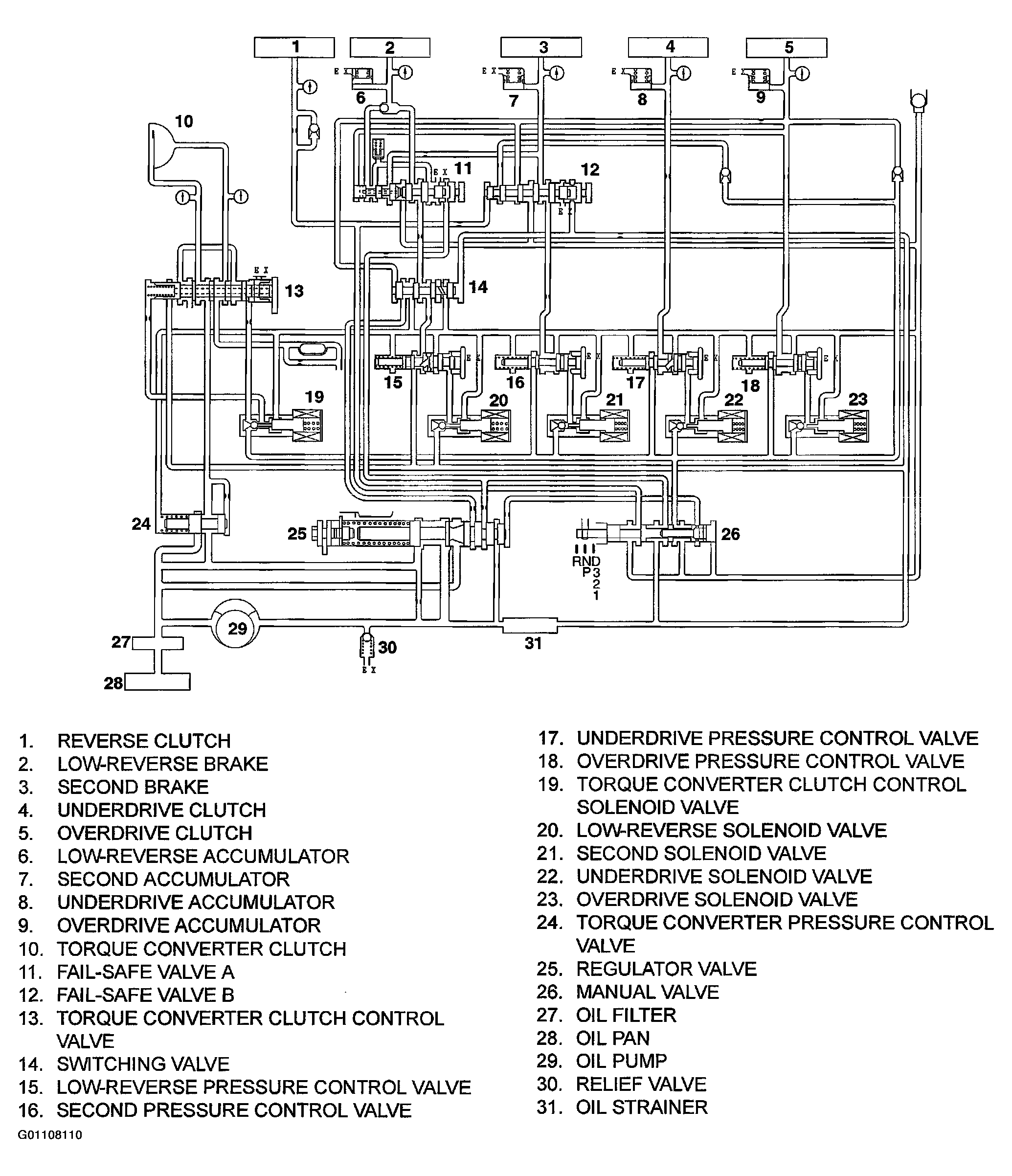

Fig 1: Identifying Automatic Transaxle Hydraulic Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
