Disassembly And Assembly: Notes

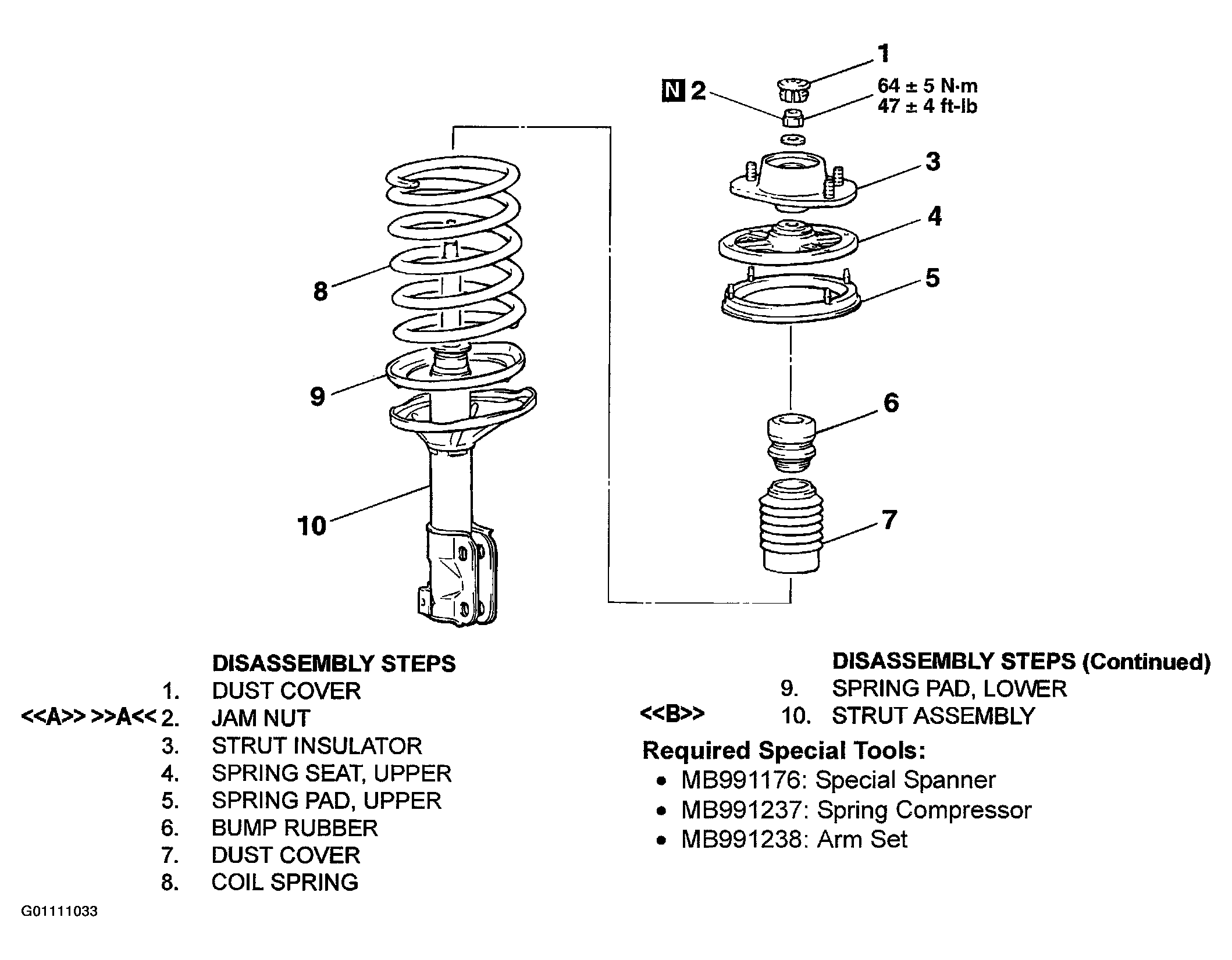

Fig 1: Strut Disassembly & Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
